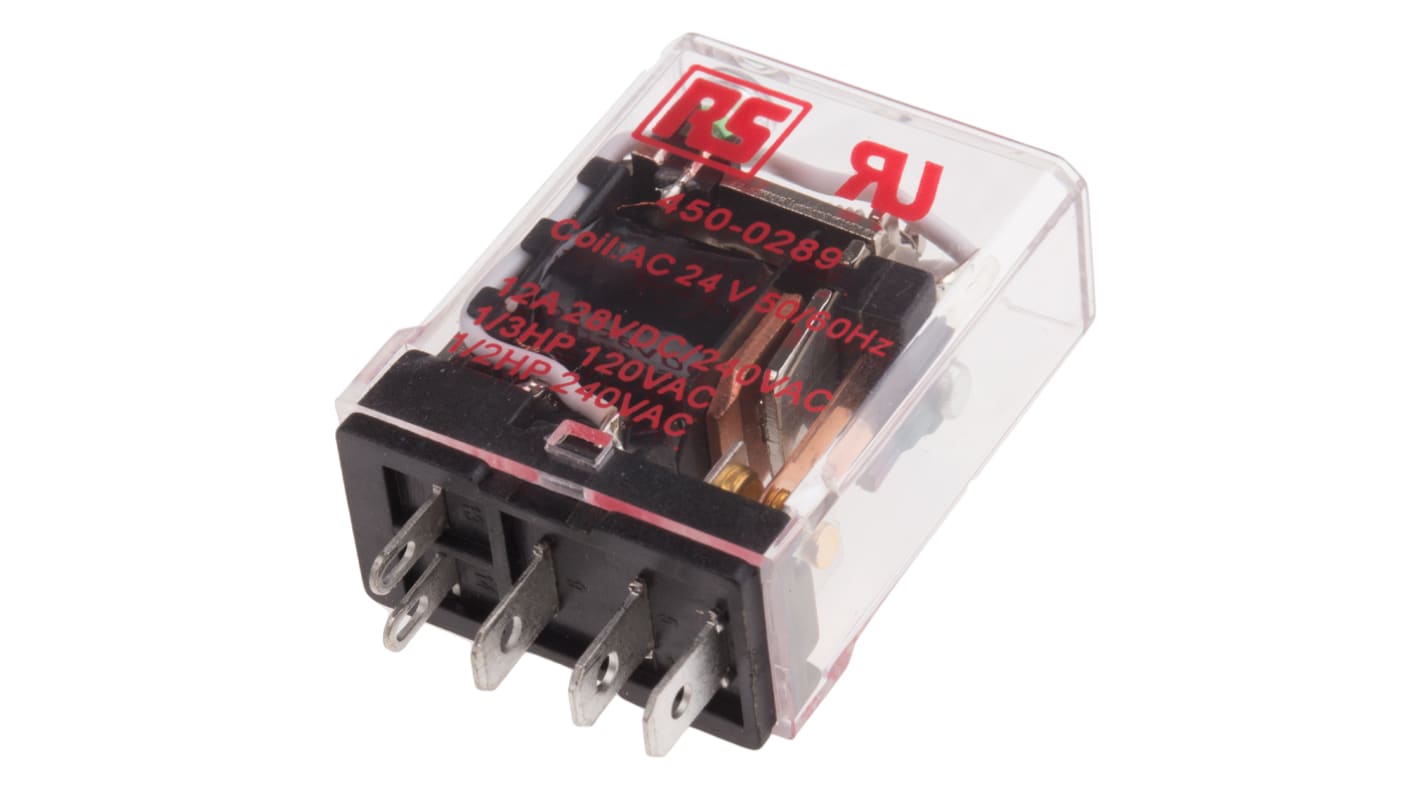

RS PRO PCB Mount Power Relay, 24V ac Coil, 15A Switching Current, SPDT
- RS Stock No.:
- 450-0289
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£8.80
(exc. VAT)
£10.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 84 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £8.80 |
| 5 - 9 | £8.52 |
| 10 + | £8.12 |
*price indicative
- RS Stock No.:
- 450-0289
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coil Voltage | 24V ac | |
| Contact Configuration | SPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 15A | |
| Number of Poles | 1 | |
| Latching | No | |
| Terminal Type | PCB Pin | |
| Maximum Switching Voltage AC | 240V ac | |
| Maximum Switching Voltage DC | 28V dc | |
| Length | 27mm | |
| Coil Resistance | 180Ω | |
| Coil Power | 1.2W | |
| Maximum Operating Temperature | +55°C | |
| Isolation Coil To Contact | 1.5kV ac | |
| Standards Met | CUR E125370, UL E125370 | |
| Minimum Operating Temperature | -45°C | |
| Contact Material | Silver Alloy | |
| Life | 1000000 (Electrical) cycles, 10000000 (Mechanical) cycles | |
| Depth | 13.5mm | |
| Height | 35.6mm | |
| Maximum Switching Power AC | 3.6 kVA | |
| Maximum Switching Power DC | 450 W | |
| Application | Power | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Coil Voltage 24V ac | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Switching Current 15A | ||
Number of Poles 1 | ||
Latching No | ||
Terminal Type PCB Pin | ||
Maximum Switching Voltage AC 240V ac | ||
Maximum Switching Voltage DC 28V dc | ||
Length 27mm | ||
Coil Resistance 180Ω | ||
Coil Power 1.2W | ||
Maximum Operating Temperature +55°C | ||
Isolation Coil To Contact 1.5kV ac | ||
Standards Met CUR E125370, UL E125370 | ||
Minimum Operating Temperature -45°C | ||
Contact Material Silver Alloy | ||
Life 1000000 (Electrical) cycles, 10000000 (Mechanical) cycles | ||
Depth 13.5mm | ||
Height 35.6mm | ||
Maximum Switching Power AC 3.6 kVA | ||
Maximum Switching Power DC 450 W | ||
Application Power | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW
10A, 12A, 15A Industrial Relay
Contact resistance: 50mΩ max.
Mechanical life: 10 million operations
Electrical life: 100000 operations
Mechanical life: 10 million operations
Electrical life: 100000 operations
