RS PRO PCB Mount Power Relay, 12V dc Coil, 15A Switching Current, SPDT
- RS Stock No.:
- 450-0273
- Brand:
- RS PRO

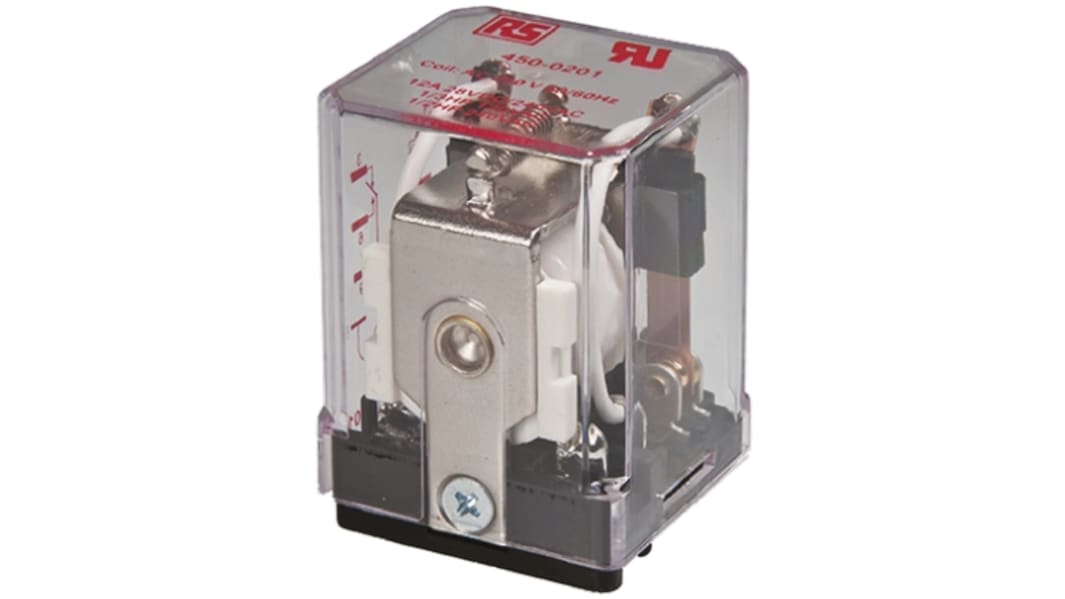

Image representative of range
1 / 2
Subtotal (1 unit)**
£5.78
(exc. VAT)
£6.94
(inc. VAT)
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
FREE delivery for orders over £50.00
Not available for guaranteed pre 9am/10am delivery
Units | Per unit |
|---|---|
| 1 + | £5.78 |
**price indicative
- RS Stock No.:
- 450-0273
- Brand:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coil Voltage | 12V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 15A | |
| Number of Poles | 1 | |
| Latching | No | |
| Terminal Type | PCB Pin | |
| Maximum Switching Voltage AC | 240V ac | |
| Maximum Switching Voltage DC | 28V dc | |
| Length | 27mm | |
| Coil Resistance | 188Ω | |
| Coil Power | 900mW | |
| Life | 1000000 (Electrical) cycles, 10000000 (Mechanical) cycles | |
| Depth | 13.5mm | |
| Isolation Coil To Contact | 1.5kV ac | |
| Minimum Operating Temperature | -45°C | |
| Maximum Operating Temperature | +70°C | |
| Height | 35.6mm | |
| Standards Met | CUR E125370, UL E125370 | |
| Contact Material | Silver Alloy | |
| Maximum Switching Power AC | 3.6 kVA | |
| Maximum Switching Power DC | 450 W | |
| Application | Power | |
