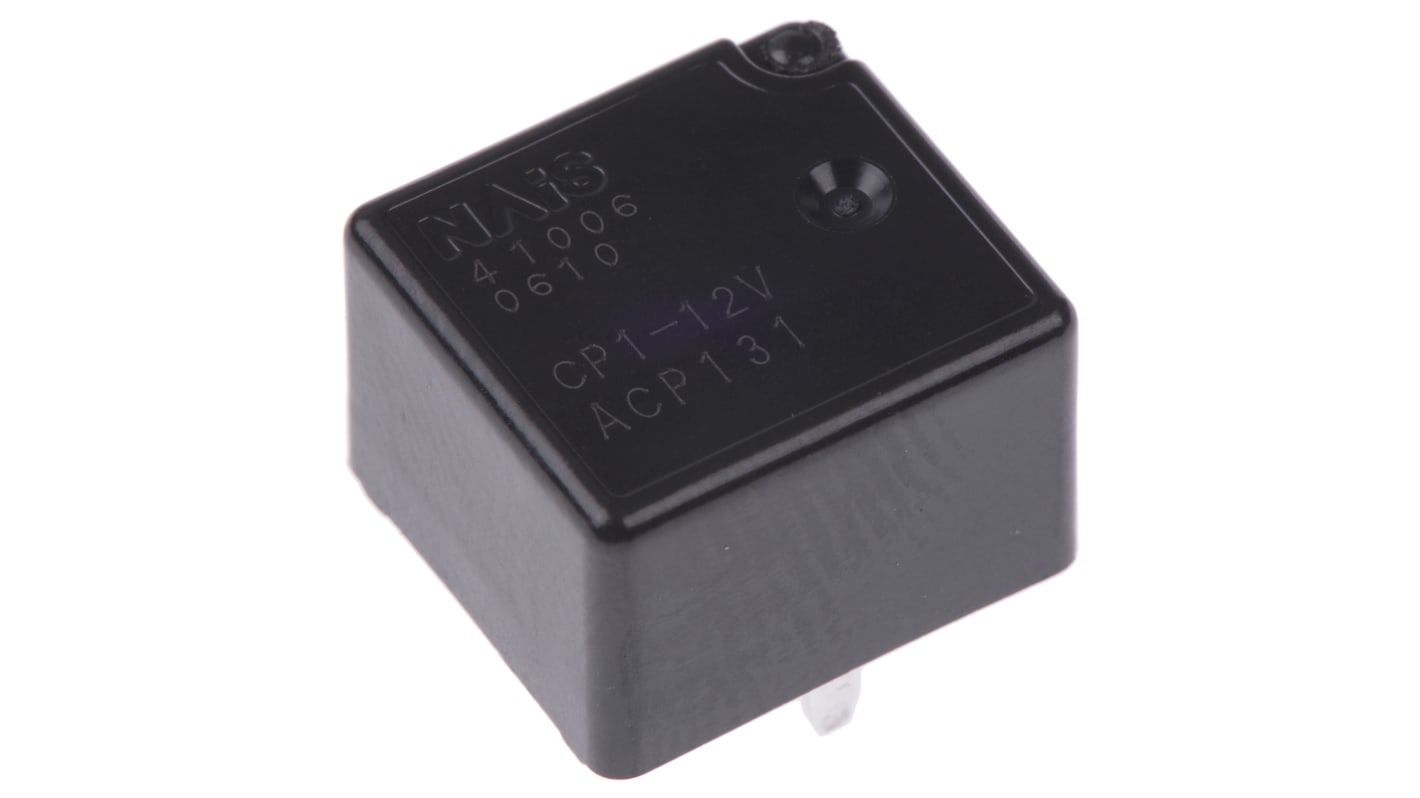

Panasonic PCB Automotive Relay, 12V dc Coil, 25A Switching Current, SPDT
- RS Stock No.:
- 334-0474
- Mfr. Part No.:
- CP112
- Brand:
- Panasonic
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£2.88
(exc. VAT)
£3.46
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 127 unit(s) shipping from 08 June 2026
- Plus 2 unit(s) shipping from 08 June 2026
- Plus 280 unit(s) shipping from 11 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £2.88 |
| 5 - 9 | £2.82 |
| 10 + | £2.68 |
*price indicative
- RS Stock No.:
- 334-0474
- Mfr. Part No.:
- CP112
- Brand:
- Panasonic
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Product Type | Automotive Relay | |
| Coil Voltage | 12V dc | |
| Contact Configuration | SPDT | |
| Mount Type | PCB | |
| Series | CP | |
| Terminal Type | Solder | |
| Switching Current | 25A | |
| Switching AC Voltage | 400V ac | |
| Minimum Operating Temperature | -40°C | |
| Coil Resistance | 225Ω | |
| Maximum Operating Temperature | 85°C | |
| Coil Power | 640mW | |
| Height | 9.5mm | |
| Width | 13mm | |
| Length | 14mm | |
| Standards/Approvals | VDE, CE, IEC, TUV, RoHS, UL | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Product Type Automotive Relay | ||
Coil Voltage 12V dc | ||
Contact Configuration SPDT | ||
Mount Type PCB | ||
Series CP | ||
Terminal Type Solder | ||
Switching Current 25A | ||
Switching AC Voltage 400V ac | ||
Minimum Operating Temperature -40°C | ||
Coil Resistance 225Ω | ||
Maximum Operating Temperature 85°C | ||
Coil Power 640mW | ||
Height 9.5mm | ||
Width 13mm | ||
Length 14mm | ||
Standards/Approvals VDE, CE, IEC, TUV, RoHS, UL | ||
Contact Material Silver Alloy | ||
- COO (Country of Origin):
- JP
Panasonic CP Series Automotive Relays
These miniature low profile automotive relays have been developed as a compact, flat, power type. Typical applications include defoggers, ignitions, heaters, accessories, power windows, ABS and various other automotive system functions.
Compact flat design (L14 x W13 x H9.5mm)
35A maximum carrying current
Supports capacitor loads required for power supply applications
Sealed
