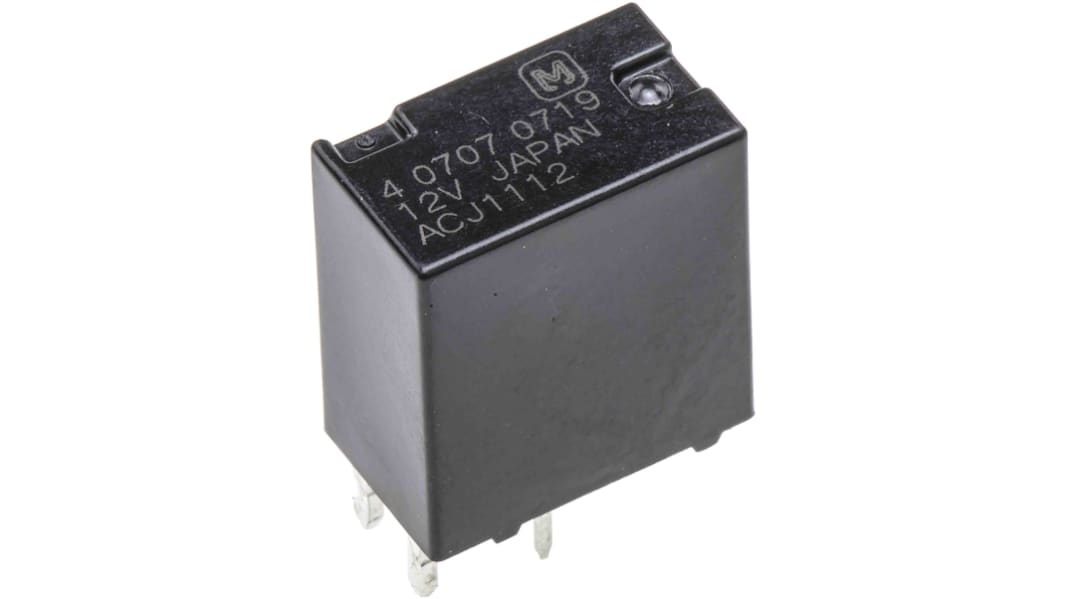

Panasonic PCB Automotive Relay, 12V dc Coil Voltage, 25A Switching Current, SPDT
- RS Stock No.:
- 699-5711
- Mfr. Part No.:
- ACJ1212P
- Brand:
- Panasonic
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£4.52
(exc. VAT)
£5.42
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 92 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £4.52 |
| 25 - 49 | £4.28 |
| 50 - 99 | £4.10 |
| 100 - 249 | £3.99 |
| 250 + | £3.87 |
*price indicative
- RS Stock No.:
- 699-5711
- Mfr. Part No.:
- ACJ1212P
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Product Type | Automotive Relay | |
| Coil Power | 640mW | |
| Coil Resistance | 225Ω | |
| Contact Configuration | SPDT | |
| Number of Poles | 1 | |
| Terminal Type | Through Hole | |
| Mount Type | PCB | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 12.2mm | |
| Depth | 7.2mm | |
| Height | 13.8mm | |
| Isolation Coil To Contact | 500V | |
| Series | ACJ | |
| Contact Material | Silver | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Product Type Automotive Relay | ||
Coil Power 640mW | ||
Coil Resistance 225Ω | ||
Contact Configuration SPDT | ||
Number of Poles 1 | ||
Terminal Type Through Hole | ||
Mount Type PCB | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Length 12.2mm | ||
Depth 7.2mm | ||
Height 13.8mm | ||
Isolation Coil To Contact 500V | ||
Series ACJ | ||
Contact Material Silver | ||
- COO (Country of Origin):
- JP
Panasonic ACJ Series PCB Automotive Relays
These super miniature PCB mount automotive relays are ideal for relay unit miniaturization and have cadmium free contacts and lead free solder offering environmental protection. Typical applications for these miniature automotve relays include powered windows, automatic door locks, electrically powered mirrors, powered sunroofs, powered seats, lift gates and smart J/B related products.
Features and Benefits
Extremely compact, smallest in its class
Nominal coil voltage 12Vdc
Maximum current capacity 20A for 1 Hour, 30A for 2 minutes
Nominal operating power 640 → 840 mW
Typical applications: Powered windows, automatic door locks, powered seats
