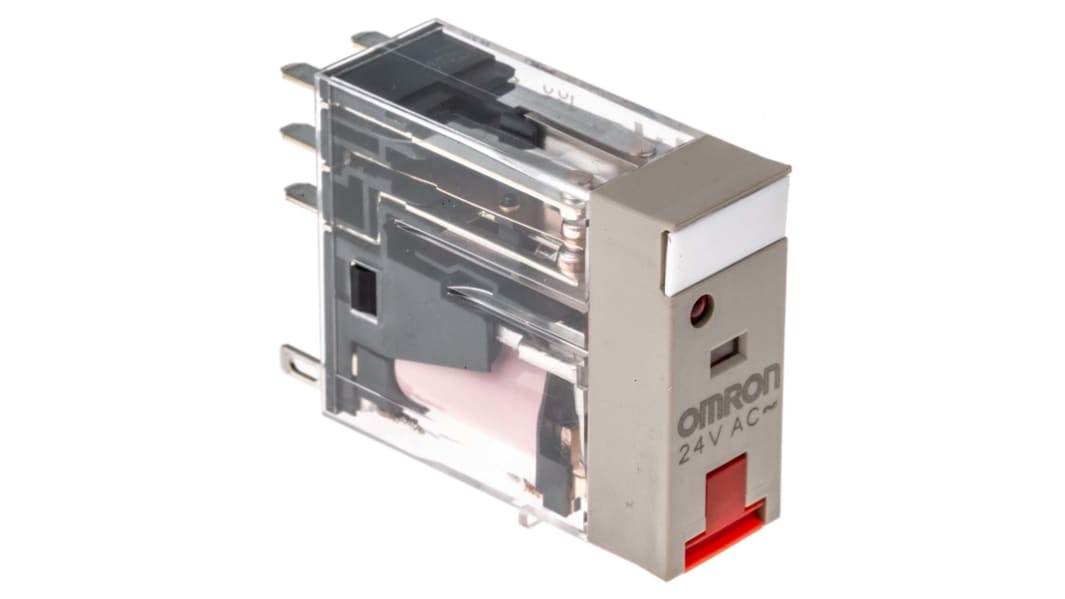

Omron Power Relay, 24V ac Coil, 5A Switching Current, DPDT
- RS Stock No.:
- 329-7257
- Distrelec Article No.:
- 304-10-416
- Mfr. Part No.:
- G2R-2-SNI 24VAC (S)
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)*
£9.63
(exc. VAT)
£11.56
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 100 unit(s) ready to ship
- Plus 11 unit(s) ready to ship from another location
- Plus 37 unit(s) shipping from 26 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £9.63 |
| 5 - 9 | £9.34 |
| 10 + | £8.93 |
*price indicative
- RS Stock No.:
- 329-7257
- Distrelec Article No.:
- 304-10-416
- Mfr. Part No.:
- G2R-2-SNI 24VAC (S)
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 24V ac | |
| Product Type | Power Relay | |
| Contact Configuration | DPDT | |
| Series | G2R | |
| Terminal Type | PCB Pin | |
| Switching Current | 5A | |
| Switching DC Voltage | 30V dc | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 30V ac | |
| Coil Resistance | 253Ω | |
| Maximum Operating Temperature | 70°C | |
| Length | 29mm | |
| Coil Power | 530mW | |
| Standards/Approvals | IEC, RoHS, UL, CE, EN | |
| Height | 41.7mm | |
| Width | 13mm | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 24V ac | ||
Product Type Power Relay | ||
Contact Configuration DPDT | ||
Series G2R | ||
Terminal Type PCB Pin | ||
Switching Current 5A | ||
Switching DC Voltage 30V dc | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 30V ac | ||
Coil Resistance 253Ω | ||
Maximum Operating Temperature 70°C | ||
Length 29mm | ||
Coil Power 530mW | ||
Standards/Approvals IEC, RoHS, UL, CE, EN | ||
Height 41.7mm | ||
Width 13mm | ||
Contact Material Silver Alloy | ||
- COO (Country of Origin):
- MY
OMRON Power Relay, LED Indicator, 0.9VA Power Consumption - G2R Series - G2R-2-SNI AC24(S)
Take control of your electrical appliance with this power relay from OMRON. It's an electromagnetic switch that uses a small input to trigger a high-energy circuit to turn on or off. Its contacts have a low resistance of 100mΩ, so you can rest assured of seamless signal transmission. As the connectors are made of silver alloy that holds its own against corrosion and impact, the unit performs reliably in harsh environments. Thanks to innovative plug-in terminals, you don't need complex tools to assemble this piece of kit, saving you time and hassle.
Features & Benefits
• Low power consumption of 0.9VA shows that it's an energy-efficient choice
• LED indicators make it easy to monitor and troubleshoot
• Withstands up to 10 million mechanical operating cycles, so you can be sure of long-term performance
• Response time of 15ms indicates you get quick action when the unit's actuated
Applications
• Measurement and instrumentation devices
• Electrical workshops
• HVAC systems
How much does this power relay weigh?
This unit tips the scales at just 20g, so it won't weigh down your setup.
