Finder Flange Power Relay, 110V Coil, 50A Switching Current, DPDT
- RS Stock No.:
- 286-8591
- Mfr. Part No.:
- 66.82.8.110.4000
- Brand:
- Finder
Subtotal (1 unit)*
£19.57
(exc. VAT)
£23.48
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 11 unit(s) shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £19.57 |
*price indicative
- RS Stock No.:
- 286-8591
- Mfr. Part No.:
- 66.82.8.110.4000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 110V | |
| Product Type | Power Relay | |
| Contact Configuration | DPDT | |
| Mount Type | Flange | |
| Series | 66 | |
| Switching Current | 50A | |
| Switching DC Voltage | 220V dc | |
| Switching AC Voltage | 440V ac | |
| Minimum Operating Temperature | -40°C | |
| Switching Power | 2.5kVA | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | ATEX, D-T4-T5-T6, HazLoc Class I Div. 2 Group A, EN 60335-1 | |
| Coil Power | 3.6VA | |
| Contact Material | Silver Tin Oxide | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 110V | ||
Product Type Power Relay | ||
Contact Configuration DPDT | ||
Mount Type Flange | ||
Series 66 | ||
Switching Current 50A | ||
Switching DC Voltage 220V dc | ||
Switching AC Voltage 440V ac | ||
Minimum Operating Temperature -40°C | ||
Switching Power 2.5kVA | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals ATEX, D-T4-T5-T6, HazLoc Class I Div. 2 Group A, EN 60335-1 | ||
Coil Power 3.6VA | ||
Contact Material Silver Tin Oxide | ||
- COO (Country of Origin):
- ES

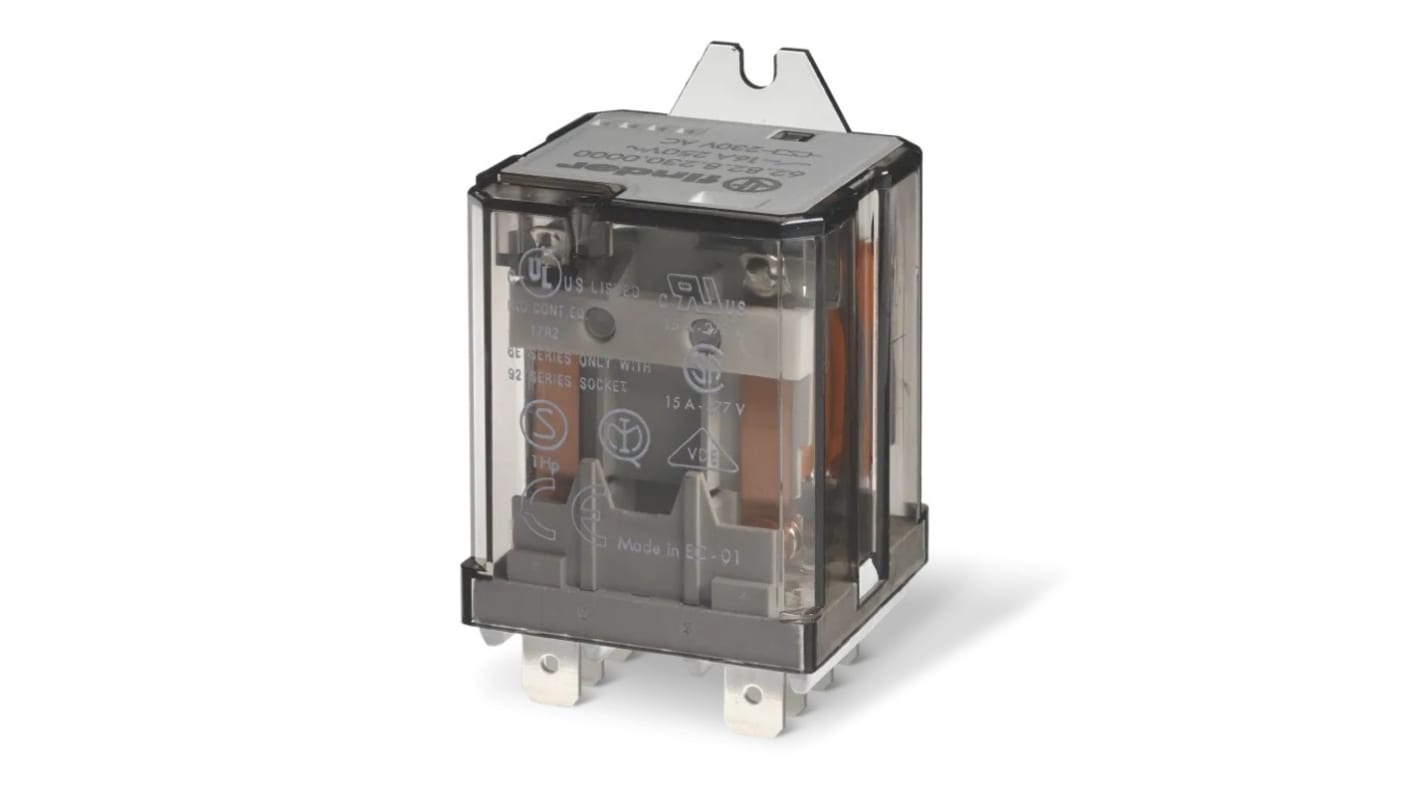

The Finder Power Relay with Faston 250 Connections and Flange Mount is a versatile electrical relay designed for secure and efficient connections. It ensures safety with reinforced insulation, complies with standards for household appliances, supports both AC and DC coils, and offers a cadmium-free option for environmentally conscious applications.
30 A rated contacts
Flange mount
Faston 250 connections
