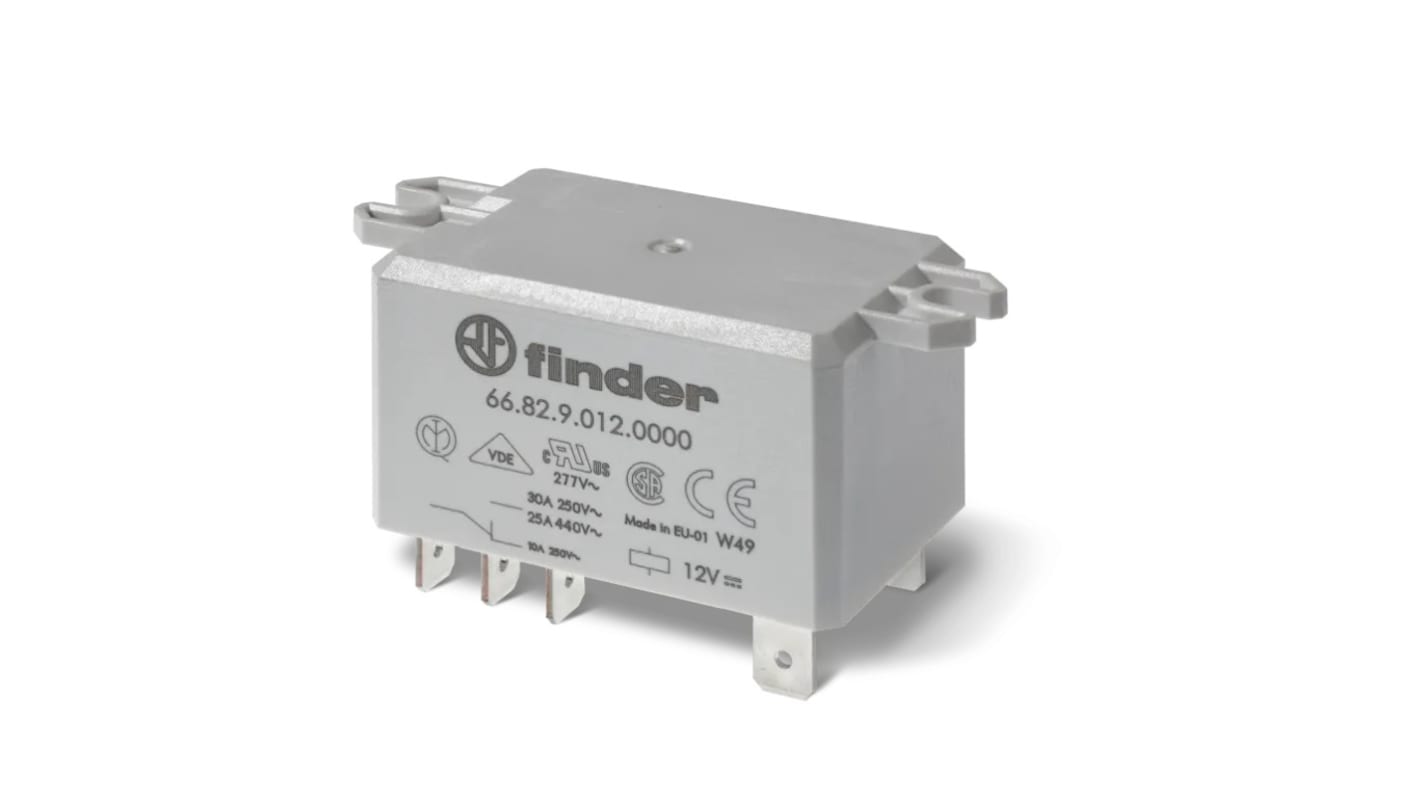

Finder Flange Power Relay, 12V Coil, 50A Switching Current, DPDT
- RS Stock No.:
- 286-8594
- Mfr. Part No.:
- 66.82.9.012.4000
- Brand:
- Finder
Subtotal (1 unit)*
£17.42
(exc. VAT)
£20.90
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 25 unit(s) shipping from 08 June 2026
- Plus 2 unit(s) shipping from 08 June 2026
- Plus 80 unit(s) shipping from 18 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £17.42 |
*price indicative
- RS Stock No.:
- 286-8594
- Mfr. Part No.:
- 66.82.9.012.4000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Product Type | Power Relay | |
| Coil Voltage | 12V | |
| Contact Configuration | DPDT | |
| Mount Type | Flange | |
| Series | 66 | |
| Switching Current | 50A | |
| Switching DC Voltage | 220V dc | |
| Switching AC Voltage | 440V ac | |
| Minimum Operating Temperature | -40°C | |
| Switching Power | 2.5kVA | |
| Maximum Operating Temperature | 70°C | |
| Coil Resistance | 9.2kΩ | |
| Standards/Approvals | EN 60335-1, ATEX | |
| Coil Power | 3.6VA | |
| Contact Material | Silver Tin Oxide | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Product Type Power Relay | ||
Coil Voltage 12V | ||
Contact Configuration DPDT | ||
Mount Type Flange | ||
Series 66 | ||
Switching Current 50A | ||
Switching DC Voltage 220V dc | ||
Switching AC Voltage 440V ac | ||
Minimum Operating Temperature -40°C | ||
Switching Power 2.5kVA | ||
Maximum Operating Temperature 70°C | ||
Coil Resistance 9.2kΩ | ||
Standards/Approvals EN 60335-1, ATEX | ||
Coil Power 3.6VA | ||
Contact Material Silver Tin Oxide | ||
- COO (Country of Origin):
- ES
Finder Series 66 Power Relay, 12V Coil Voltage, 30A Switching Current - 66.82.9.012.4000
This power relay is a high-performance component designed for reliable operation in various industrial applications. Featuring a DPDT configuration, it handles switching currents of up to 30A. The coil operates on a 12V DC supply, making it suitable for a range of projects. The robust construction ensures durability in environments with temperatures ranging from -40°C to +70°C.
Features & Benefits
• 30A rated contacts support high-performance usage
• Flange mount design ensures stable installation
• DPDT relay configuration allows versatile switching options
• Long lifespan of 100,000 cycles for reliability
• Utilises AgSnO2 contacts for effective conductivity
Applications
• Used for controlling industrial washing machines
• Suitable for operation in burners and boilers
• Ideal for encapsulating circuits in air conditioning systems
• Utilised in backup generators for reliable power supply
• Effective in industrial motors for efficient performance
• Implemented in hoists and cranes for heavy-duty tasks
What ambient conditions can the relay withstand?
This relay can operate in temperatures ranging from -40°C to +70°C, making it suitable for diverse industrial environments.
How does the DPDT configuration benefit my application?
The DPDT configuration allows for flexible switching between two circuits, enabling control over multiple devices without the need for additional components.
What type of insulation does this relay feature?
It has reinforced insulation between the coil and contacts, ensuring safety and compliance with industrial standards.
Can this relay handle inductive loads?
Yes, it is designed to manage inductive loads with a rated breaking capacity, enhancing its applicability in various electrical systems.
What voltage ratings are available for coil operation?
The coil operates at 12V DC, providing a consistent supply for efficient relay performance in electronic applications.
