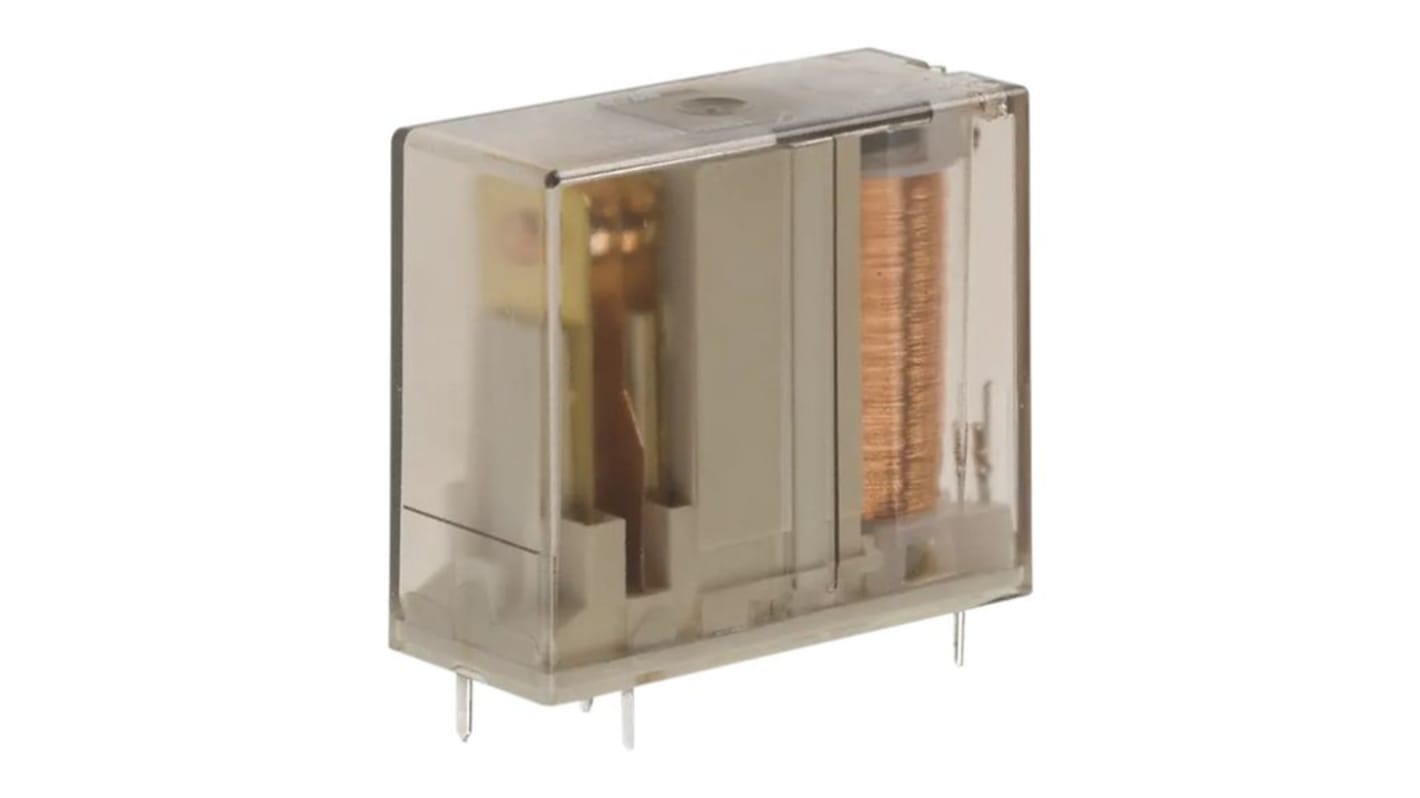

TE Connectivity PCB Power Relay, 24V Coil, 16A Switching Current, SPDT
- RS Stock No.:
- 285-7884
- Distrelec Article No.:
- 302-18-933
- Mfr. Part No.:
- 1415547-1
- Brand:
- TE Connectivity
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 285-7884
- Distrelec Article No.:
- 302-18-933
- Mfr. Part No.:
- 1415547-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 24V | |
| Product Type | Power Relay | |
| Contact Configuration | SPDT | |
| Mount Type | PCB | |
| Terminal Type | Solder | |
| Switching Current | 16A | |
| Switching AC Voltage | 400V ac | |
| Coil Resistance | 23.1kΩ | |
| Coil Power | 500mW | |
| Standards/Approvals | VDE Cert. No. 40025448, IEC 61810-1, UL E214025 (only for AgNi versions) | |
| Contact Material | Silver Nickel Alloy | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 24V | ||
Product Type Power Relay | ||
Contact Configuration SPDT | ||
Mount Type PCB | ||
Terminal Type Solder | ||
Switching Current 16A | ||
Switching AC Voltage 400V ac | ||
Coil Resistance 23.1kΩ | ||
Coil Power 500mW | ||
Standards/Approvals VDE Cert. No. 40025448, IEC 61810-1, UL E214025 (only for AgNi versions) | ||
Contact Material Silver Nickel Alloy | ||
The power PCB relay is a reliable and high-quality solution for various applications. With features like 1 form C contact and AgNi 90/10 material, this product offers superior performance and durability.
1 form C contact (1 CO) for versatile usage
AgNi 90/10 material for enhanced reliability
Coil voltage range from 5 to 110VDC for flexibility
Rated voltage of 250VAC for safe operation
Breaking capacity up to 4000VA for efficiency
