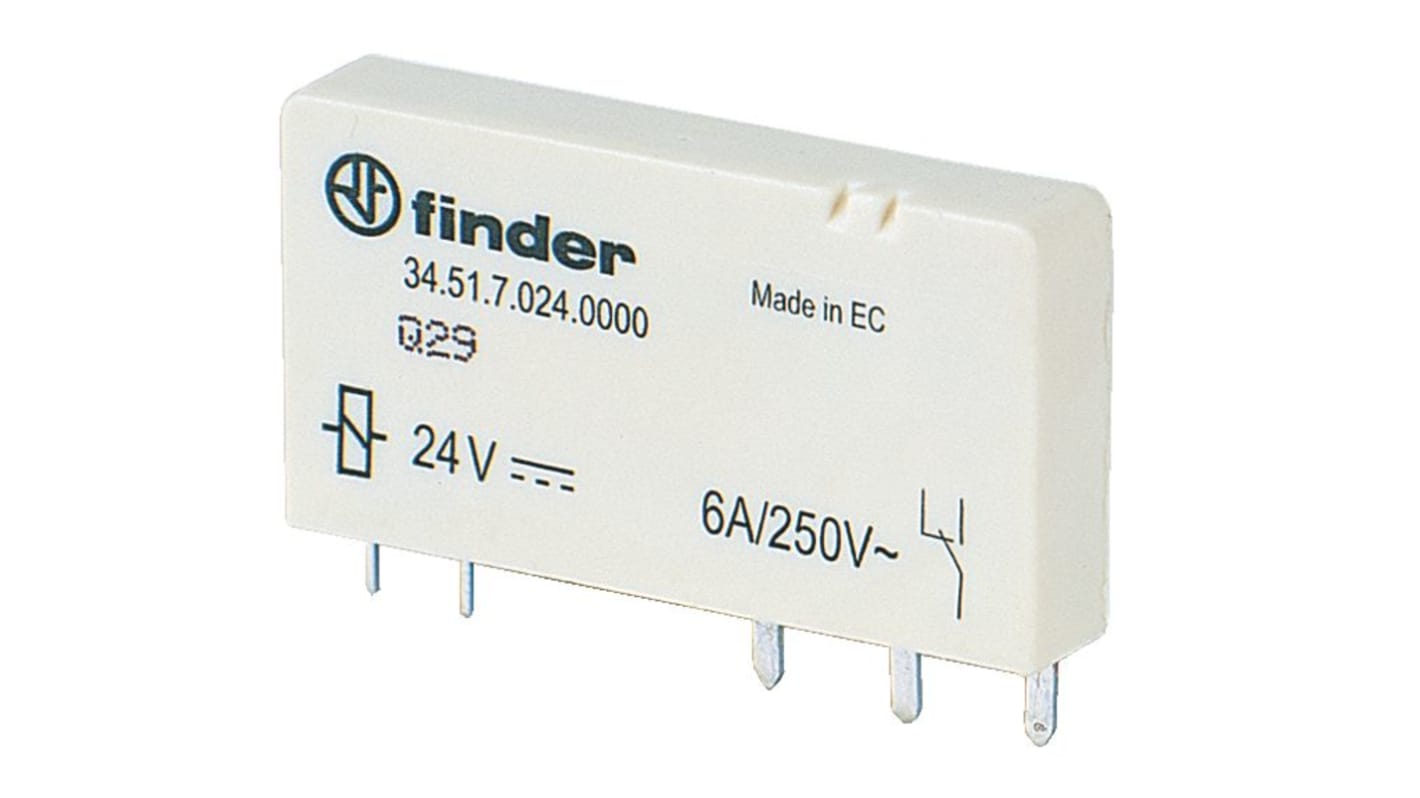

Finder PCB, Through Hole Power Relay, 24V Coil, 6A, SPDT

View all Power Relays
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
285-7734
Distrelec Article No.:
137-44-310
Mfr. Part No.:
34.51.7.024.5010
Brand:
Finder
Find similar products by selecting one or more attributes.
Select all

Brand

Finder

Product Type

Power Relay

Coil Voltage

24V

Contact Configuration

SPDT

Mount Type

PCB, Through Hole

Switching Current

6A

Series

34

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

60°C

Height

15mm

Terminal Type

PCB Terminal

Width

5mm

Standards/Approvals

No

Length

28mm

Coil Resistance

840Ω

Contact Material

Gold Plated Silver Nickel

COO (Country of Origin):
ES
The PCB power relay, model 34, is a single pole, changeover (1CO) configuration with a 6A rating at DC 24V. It has a coil resistance of 3.35kOhm. The relay ensures safe separation as per VDE 0160 standards between the coil and the contact set, with a 6mm air gap and an 8mm creepage path. The contact material is AgSnO2, suitable for power currents.

Ultra slim, only 5 mm wide

Sensitive DC coil

RoHS compliant
