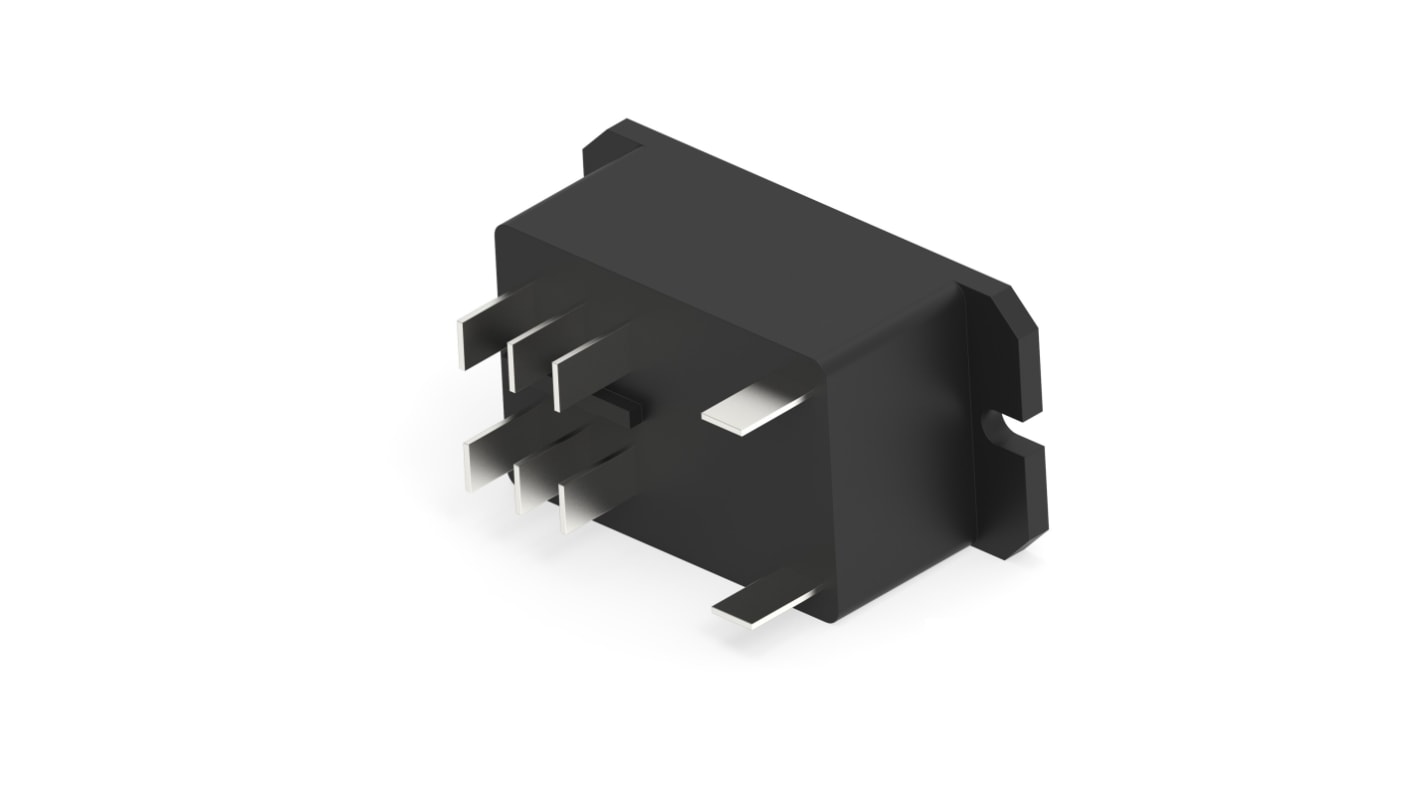

TE Connectivity Panel Mount Relay, 24V dc Coil, 30A Switching Current, DPDT
- RS Stock No.:
- 279-8766
- Distrelec Article No.:
- 302-21-307
- Mfr. Part No.:
- 3-1423008-6
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£28.69
(exc. VAT)
£34.43
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 47 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £28.69 |
| 10 + | £27.49 |
*price indicative
- RS Stock No.:
- 279-8766
- Distrelec Article No.:
- 302-21-307
- Mfr. Part No.:
- 3-1423008-6
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 24V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | Panel Mount | |
| Switching Current | 30A | |
| Number of Poles | 2 | |
| Maximum Switching Voltage AC | 600V | |
| Length | 52.32?mm | |
| Coil Resistance | 350 Ω | |
| Coil Power | 1.7W | |
| Contact Material | AgSnOInO | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -55°C | |
| Height | 30.73?mm | |
| Width | 34.54?mm | |
| Dimensions | 52.32 x 30.73 x 34.54mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 24V dc | ||
Contact Configuration DPDT | ||
Mounting Type Panel Mount | ||
Switching Current 30A | ||
Number of Poles 2 | ||
Maximum Switching Voltage AC 600V | ||
Length 52.32?mm | ||
Coil Resistance 350 Ω | ||
Coil Power 1.7W | ||
Contact Material AgSnOInO | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -55°C | ||
Height 30.73?mm | ||
Width 34.54?mm | ||
Dimensions 52.32 x 30.73 x 34.54mm | ||
The TE Connectivity Power Relay is designed to control compressor loads to 3.5 tons.
UL approved for 600VAC switching
RoHS compliant
RoHS compliant
