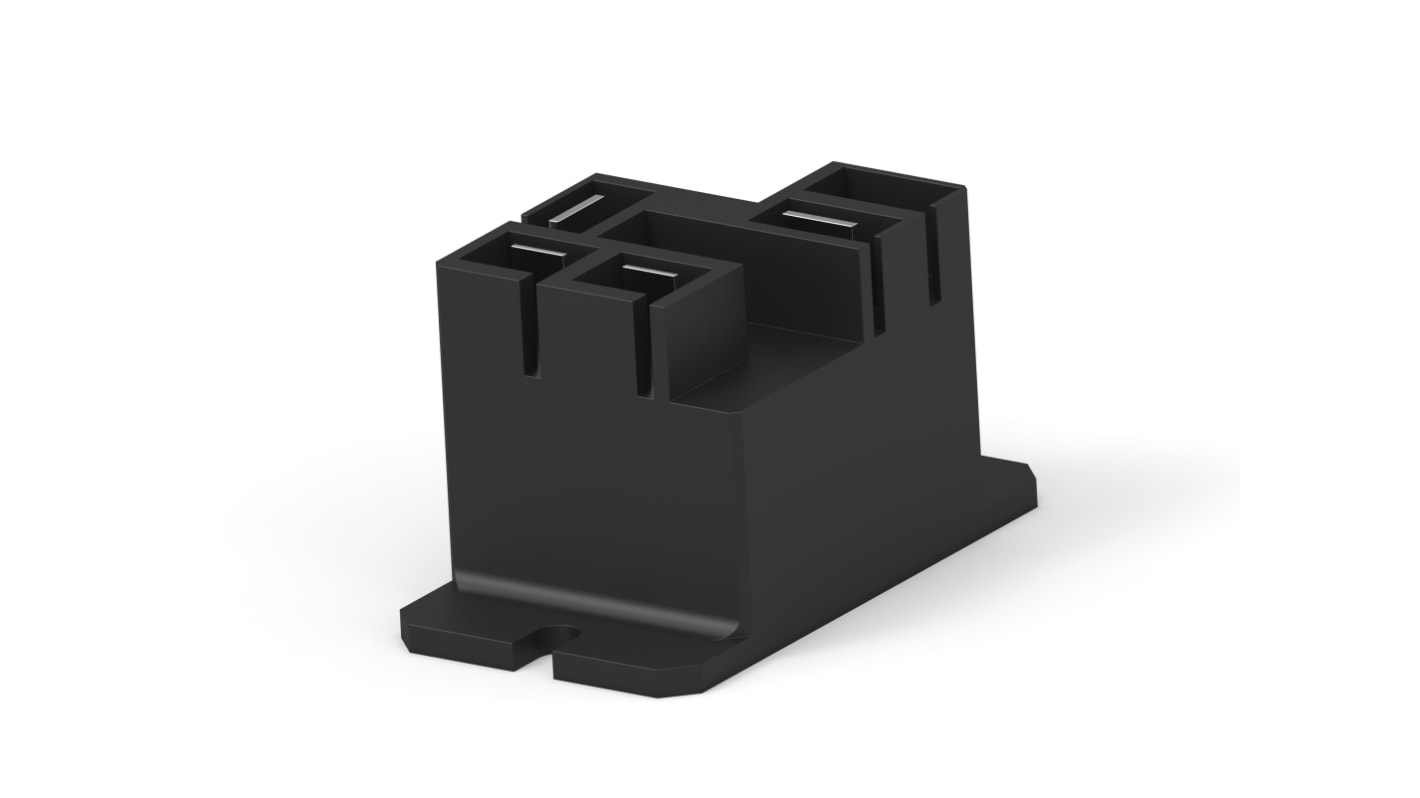

TE Connectivity Panel Power Relay, 48V dc Coil, 30A Switching Current, SPST
- RS Stock No.:
- 276-3910
- Mfr. Part No.:
- T9AP1D52-48 5-1419102-8
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 pack of 50 units)*
£423.90
(exc. VAT)
£508.70
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 50 unit(s) ready to ship
- Plus 400 unit(s) shipping from 24 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 50 | £8.478 | £423.90 |
| 100 - 200 | £8.19 | £409.50 |
| 250 + | £7.774 | £388.70 |
*price indicative
- RS Stock No.:
- 276-3910
- Mfr. Part No.:
- T9AP1D52-48 5-1419102-8
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Power Relay | |
| Coil Voltage | 48V dc | |
| Contact Configuration | SPST | |
| Mount Type | Panel | |
| Series | Potter & Brumfield T9A | |
| Terminal Type | Quick Connect | |
| Switching Current | 30A | |
| Minimum Operating Temperature | -55°C | |
| Switching AC Voltage | 277V ac | |
| Maximum Operating Temperature | 85°C | |
| Coil Resistance | 2.3kΩ | |
| Standards/Approvals | EU ELV Directive 2000/53/EC, RoHS 2011/65/EU, REACH EC 1907/2006 | |
| Coil Power | 1W | |
| Height | 27.9mm | |
| Width | 27.4mm | |
| Length | 32.5mm | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Power Relay | ||
Coil Voltage 48V dc | ||
Contact Configuration SPST | ||
Mount Type Panel | ||
Series Potter & Brumfield T9A | ||
Terminal Type Quick Connect | ||
Switching Current 30A | ||
Minimum Operating Temperature -55°C | ||
Switching AC Voltage 277V ac | ||
Maximum Operating Temperature 85°C | ||
Coil Resistance 2.3kΩ | ||
Standards/Approvals EU ELV Directive 2000/53/EC, RoHS 2011/65/EU, REACH EC 1907/2006 | ||
Coil Power 1W | ||
Height 27.9mm | ||
Width 27.4mm | ||
Length 32.5mm | ||
Contact Material Silver Alloy | ||
The TE Connectivity Potter and Brumfield Standard Power Relay open or close a circuit by using an electromagnetic coil for seamless power flow.
UL Coil Insulation Class F coil
Monostable and DC coil magnetic system
