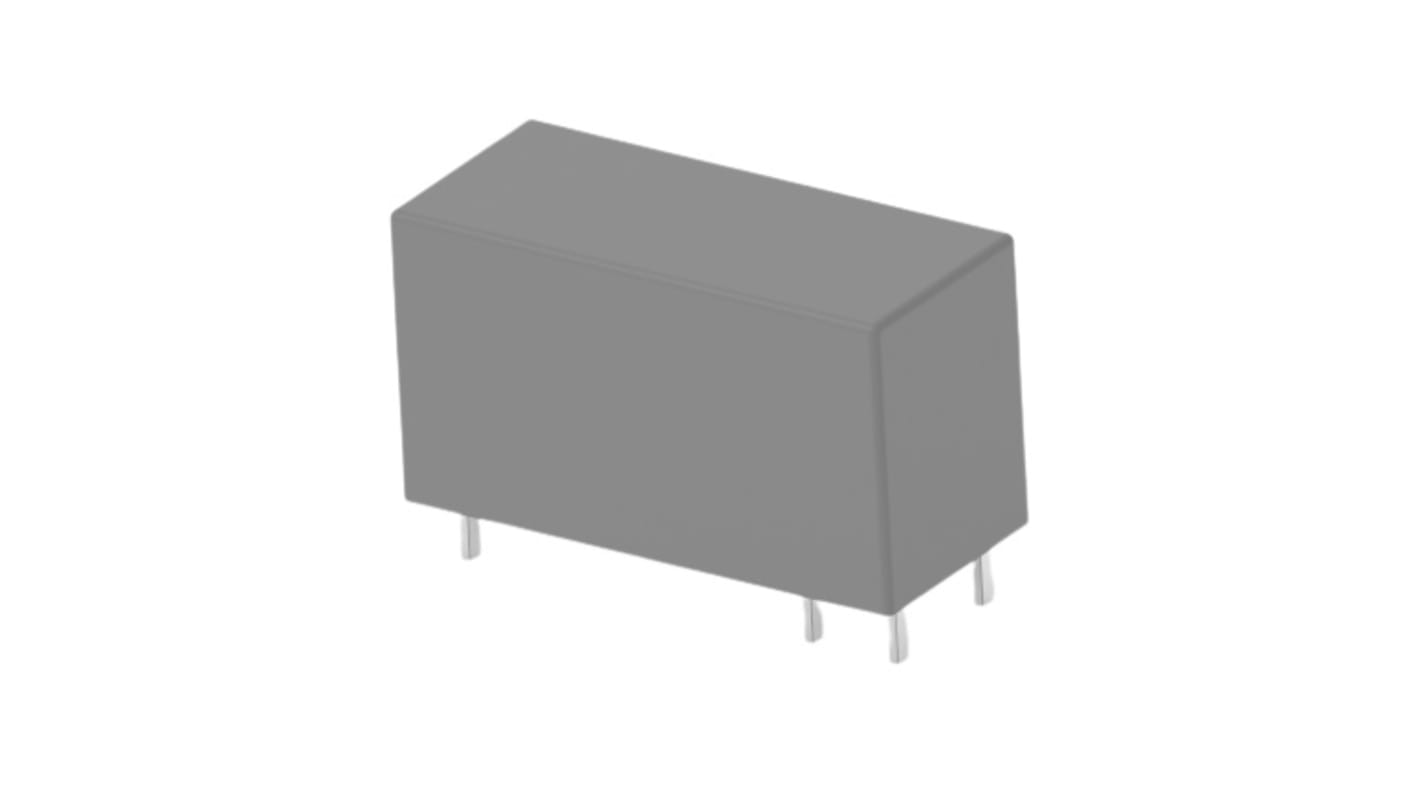

TE Connectivity PCB Power Relay, 5V dc Coil, 16A Switching Current, SPST
- RS Stock No.:
- 272-7737
- Mfr. Part No.:
- RTD34005 8-1393238-3
- Brand:
- TE Connectivity
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 272-7737
- Mfr. Part No.:
- RTD34005 8-1393238-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Power Relay | |
| Coil Voltage | 5V dc | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | RT | |
| Terminal Type | Plug-In | |
| Switching Current | 16A | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 400V ac | |
| Maximum Operating Temperature | 85°C | |
| Coil Resistance | 62Ω | |
| Standards/Approvals | CCSAUS, CQC, cULus, VDE | |
| Width | 12.7mm | |
| Coil Power | 403mW | |
| Length | 29mm | |
| Height | 15.7mm | |
| Contact Material | Silver Nickel Alloy | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Power Relay | ||
Coil Voltage 5V dc | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series RT | ||
Terminal Type Plug-In | ||
Switching Current 16A | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 400V ac | ||
Maximum Operating Temperature 85°C | ||
Coil Resistance 62Ω | ||
Standards/Approvals CCSAUS, CQC, cULus, VDE | ||
Width 12.7mm | ||
Coil Power 403mW | ||
Length 29mm | ||
Height 15.7mm | ||
Contact Material Silver Nickel Alloy | ||
The TE Connectivity Power relay is a standard type power relay. This power relay supports Mono stable, DC coil magnetic system with 403 mW DC coil power rating.
RoHS compliant
REACH compliant
UL coil insulation class F
62 ohms coil resistance
