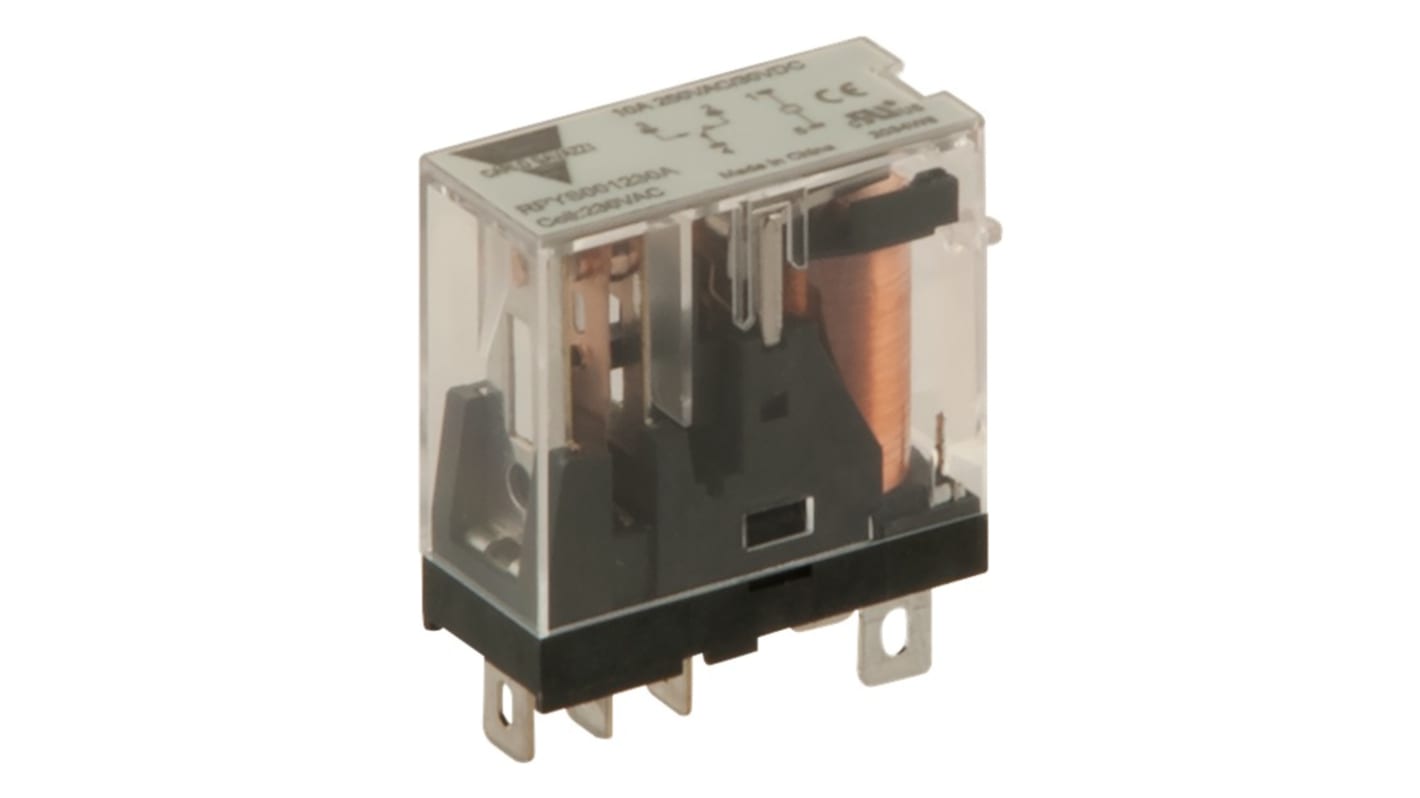

Carlo Gavazzi Power Relay, 24V ac Coil, 5A Switching Current, DPDT
- RS Stock No.:
- 272-6023
- Mfr. Part No.:
- RPYS002024A
- Brand:
- Carlo Gavazzi
Subtotal (1 unit)*
£7.72
(exc. VAT)
£9.26
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 01 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £7.72 |
*price indicative
- RS Stock No.:
- 272-6023
- Mfr. Part No.:
- RPYS002024A
- Brand:
- Carlo Gavazzi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Carlo Gavazzi | |
| Product Type | Power Relay | |
| Coil Voltage | 24V ac | |
| Contact Configuration | DPDT | |
| Series | RPYS | |
| Terminal Type | Plug-In | |
| Switching Current | 5A | |
| Switching AC Voltage | 250V ac | |
| Minimum Operating Temperature | -40°C | |
| Switching DC Voltage | 30V dc | |
| Coil Resistance | 240Ω | |
| Maximum Operating Temperature | 55°C | |
| Length | 29mm | |
| Height | 27mm | |
| Coil Power | 0.53W | |
| Standards/Approvals | IEC 61810 UL 508 A | |
| Width | 12.6mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 50mΩ | |
| Select all | ||
|---|---|---|
Brand Carlo Gavazzi | ||
Product Type Power Relay | ||
Coil Voltage 24V ac | ||
Contact Configuration DPDT | ||
Series RPYS | ||
Terminal Type Plug-In | ||
Switching Current 5A | ||
Switching AC Voltage 250V ac | ||
Minimum Operating Temperature -40°C | ||
Switching DC Voltage 30V dc | ||
Coil Resistance 240Ω | ||
Maximum Operating Temperature 55°C | ||
Length 29mm | ||
Height 27mm | ||
Coil Power 0.53W | ||
Standards/Approvals IEC 61810 UL 508 A | ||
Width 12.6mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 50mΩ | ||
The Carlo Gavazzi RPYS is an electromechanical relay that can switch resistive loads up to 5 A for the 2 changeover contact version.
Space saving
Time saving
Better adaptation to wiring systems
