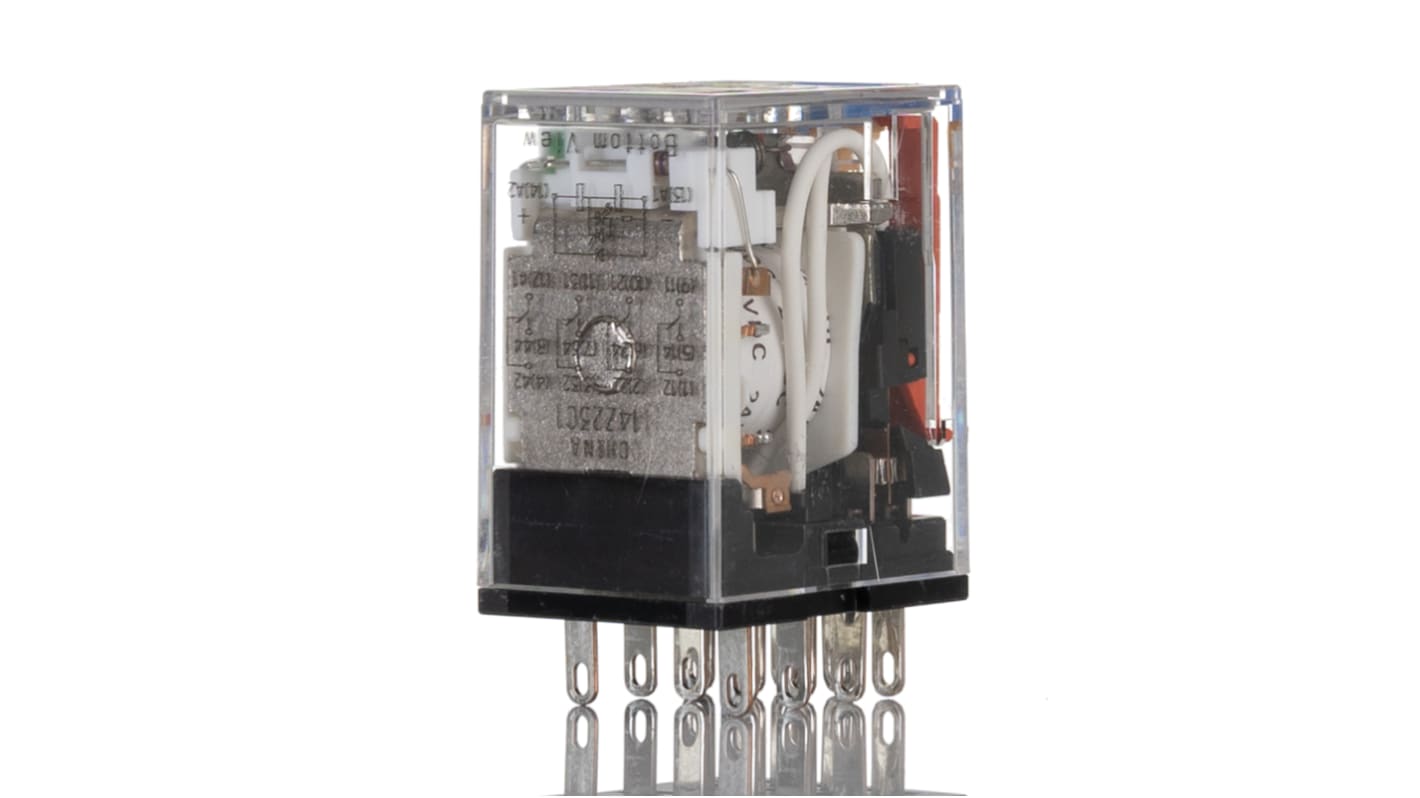

Omron Plug In Latching Power Relay, 24V dc Coil, 6A Switching Current, 4PDT

RS Stock No.:: 271-1938
Mfr. Part No.:: MY4IN-D2-GS-R DC24
Brand:: Omron

Omron Plug In Latching Power Relay, 24V dc Coil, 6A Switching Current, 4PDT

Subtotal (1 unit)*

£16.00

(exc. VAT)

£19.20

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

58 unit(s) ready to ship
Plus 100 unit(s) shipping from 11 November 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£16.00

*price indicative

RS Stock No.:: 271-1938
Mfr. Part No.:: MY4IN-D2-GS-R DC24
Brand:: Omron

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Coil Voltage	24V dc
	Contact Configuration	4PDT
	Mounting Type	Plug In
	Switching Current	6A
	Number of Poles	4
	Latching	Yes
	Series	MY
	Terminal Type	Plug In
	Maximum Switching Voltage AC	250V
	Maximum Switching Voltage DC	220V
	Maximum Switching Current AC	6 A
	Maximum Switching Current DC	6 A
	Length	28mm
	Coil Resistance	662 Ω
	Coil Power	900mW
	Standards Met	CQC, CSA, IEC, UL
	Maximum Operating Temperature	+70°C
	Isolation Coil To Contact	2kV ac
	Contact Material	Silver
	Minimum Operating Temperature	-55°C
	Depth	36mm
	Life	300000 cycles
	Height	36mm
	Width	21.5mm
	Maximum Switching Power AC	3.6 VA
	Maximum Switching Power DC	3600 mW
	Number of Coils	Single
	Application	General Purpose, Industrial
	Dimensions	28 x 21.5 x 36mm

	Select all
	Brand Omron
	Coil Voltage 24V dc
	Contact Configuration 4PDT
	Mounting Type Plug In
	Switching Current 6A
	Number of Poles 4
	Latching Yes
	Series MY
	Terminal Type Plug In
	Maximum Switching Voltage AC 250V
	Maximum Switching Voltage DC 220V
	Maximum Switching Current AC 6 A
	Maximum Switching Current DC 6 A
	Length 28mm
	Coil Resistance 662 Ω
	Coil Power 900mW
	Standards Met CQC, CSA, IEC, UL
	Maximum Operating Temperature +70°C
	Isolation Coil To Contact 2kV ac
	Contact Material Silver
	Minimum Operating Temperature -55°C
	Depth 36mm
	Life 300000 cycles
	Height 36mm
	Width 21.5mm
	Maximum Switching Power AC 3.6 VA
	Maximum Switching Power DC 3600 mW
	Number of Coils Single
	Application General Purpose, Industrial
	Dimensions 28 x 21.5 x 36mm

RoHS Status: Exempt

COO (Country of Origin):: CN

OMRON Power Relay, Single Coil, 662Ω Coil Resistance - MY Series - MY4IN-D2-GS-R DC24

In need of an energy-efficient device to control the power to your industrial pumps? Pop this power relay from OMRON into your system. It functions using an electrically energised coil that opens or closes the switch to manage energy flow. The latching mechanism means a single impulse is all that's needed to change the contact's operating state, which draws less electricity as there's no need for continuous actuation. Corrosion-resistant silver contacts work reliably in humid settings, while space-efficient dimensions of 28 (L) x 21.5 (W) x 36mm (H) slot neatly into crowded setups.

Features & Benefits

• 4PDT contact configuration lets you manage multiple circuits at once
• Plug-in mounting method makes setting up swift and simple
• 2kV AC coil isolation prevents voltage spikes from damaging equipment
• Tolerance for 300,000 operating cycles shows it's built to last

Applications

• Medical devices
• Industrial automation
• Car washing equipment
• Energy management systems

Can I use this power relay in challenging environments?

Yes, it works without a hitch in operating temperatures between -55°C and +70°C.

How much current can this device switch?

This unit can switch up to 6A, making it suitable for low-power systems.

Note

This product is scheduled for discontinuation. Please refer to the attached Discontinuation notice for further details.
