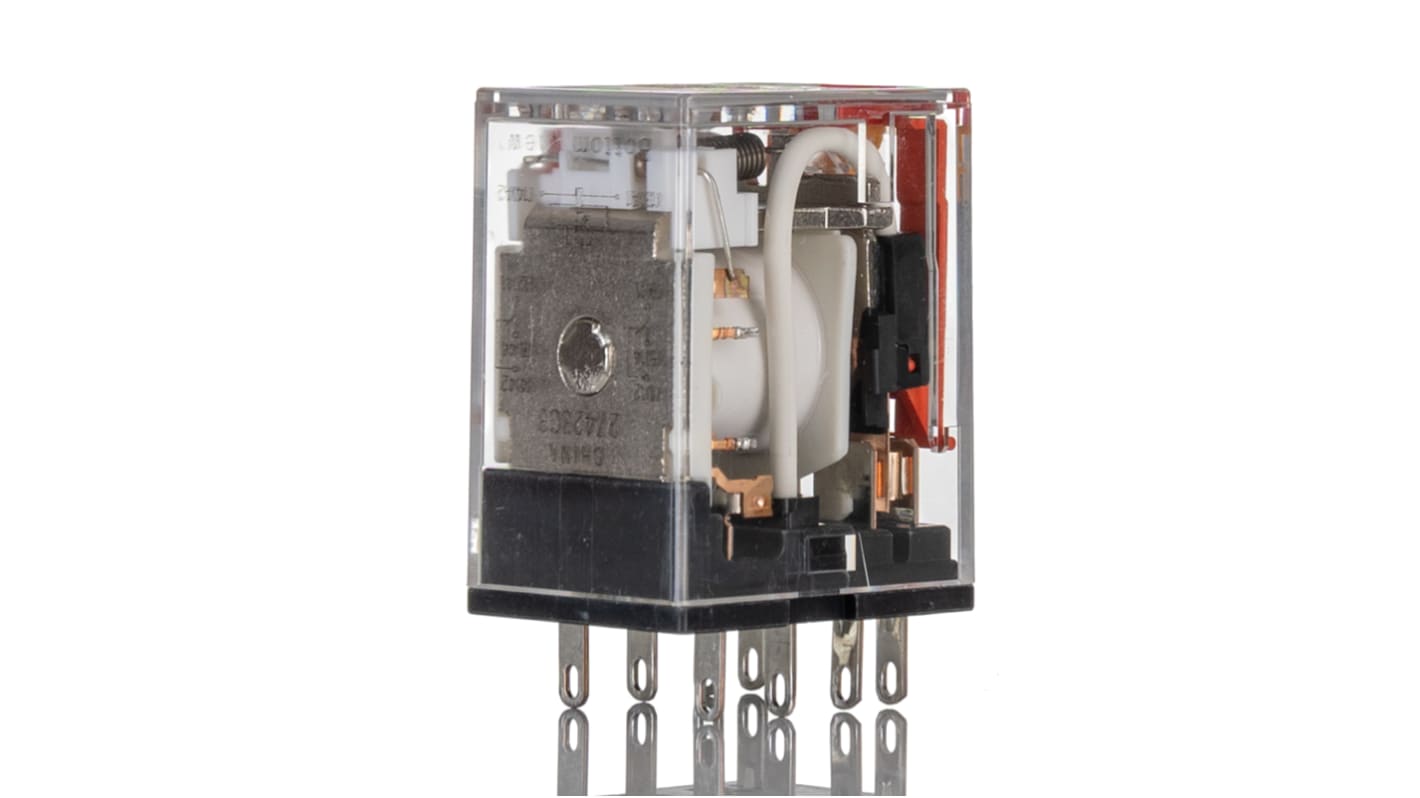

Omron Plug In Latching Power Relay, 48V ac Coil, 10A Switching Current, DPDT

RS Stock No.:: 271-1922
Mfr. Part No.:: MY2IN-GS-R AC48
Brand:: Omron

Omron Plug In Latching Power Relay, 48V ac Coil, 10A Switching Current, DPDT

Subtotal (1 unit)*

£7.76

(exc. VAT)

£9.31

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

7 unit(s) ready to ship
Plus 10 unit(s) shipping from 28 October 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£7.76

*price indicative

RS Stock No.:: 271-1922
Mfr. Part No.:: MY2IN-GS-R AC48
Brand:: Omron

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Coil Voltage	48V ac
	Contact Configuration	DPDT
	Mounting Type	Plug In
	Switching Current	10A
	Number of Poles	2
	Latching	Yes
	Series	MY
	Terminal Type	Plug In
	Maximum Switching Voltage AC	250V
	Maximum Switching Voltage DC	220V
	Maximum Switching Current AC	10 A
	Maximum Switching Current DC	10 A
	Length	28mm
	Coil Resistance	788 Ω
	Coil Power	900mW
	Depth	36mm
	Isolation Coil To Contact	2kV ac
	Maximum Operating Temperature	+70°C
	Contact Material	Silver
	Standards Met	CQC, CSA, IEC, UL
	Minimum Operating Temperature	-55°C
	Height	36mm
	Life	500000 cycles
	Maximum Switching Power AC	10 VA
	Number of Coils	Single
	Maximum Switching Power DC	10000 mW
	Width	21.5mm
	Application	General Purpose, Industrial
	Dimensions	28 x 21.5 x 36mm

	Select all
	Brand Omron
	Coil Voltage 48V ac
	Contact Configuration DPDT
	Mounting Type Plug In
	Switching Current 10A
	Number of Poles 2
	Latching Yes
	Series MY
	Terminal Type Plug In
	Maximum Switching Voltage AC 250V
	Maximum Switching Voltage DC 220V
	Maximum Switching Current AC 10 A
	Maximum Switching Current DC 10 A
	Length 28mm
	Coil Resistance 788 Ω
	Coil Power 900mW
	Depth 36mm
	Isolation Coil To Contact 2kV ac
	Maximum Operating Temperature +70°C
	Contact Material Silver
	Standards Met CQC, CSA, IEC, UL
	Minimum Operating Temperature -55°C
	Height 36mm
	Life 500000 cycles
	Maximum Switching Power AC 10 VA
	Number of Coils Single
	Maximum Switching Power DC 10000 mW
	Width 21.5mm
	Application General Purpose, Industrial
	Dimensions 28 x 21.5 x 36mm

RoHS Status: Exempt

COO (Country of Origin):: CN

OMRON Power Relay, 788Ω Coil Resistance, 10A Switching Current Rating - MY Series - MY2IN-GS-R AC48

Want to control electricity flow through your heating and cooling system, automated panel or lighting installation? Grab this power relay from OMRON. The electromechanical device only needs a little current to turn high-load applications on and off, so it's an energy-efficient choice. Its conductive silver contacts mean you can count on reliable signal transmissions. This power relay has a rugged plastic casing to protect its sensitive components from impact. A lifespan of 500,000 cycles means it's built to last.

Features & Benefits

• Transparent housing makes it easy to spot faults
• Compatible with both AC and DC power sources for versatility
• Compact dimensions of 28 (L) x 21.5 (W) x 36mm (H) means it takes up little space on a PCB or DIN rail
• Reliable in harsh environment thanks to an operating temperature range of -55°C to +100°C

Applications

• Robotics systems
• Telecommunications networks
• Assembly and packaging lines
• Food and beverage processing

How do I know if something's wrong with this power relay?

It has mechanical and LED status indicators for convenient troubleshooting.

How do I mount this power relay on a DIN rail?

Mounting is a doddle – just plug the unit into a compatible socket and snap the assembly onto a DIN rail.

Note

This product is scheduled for discontinuation. Please refer to the attached Discontinuation notice for further details.
