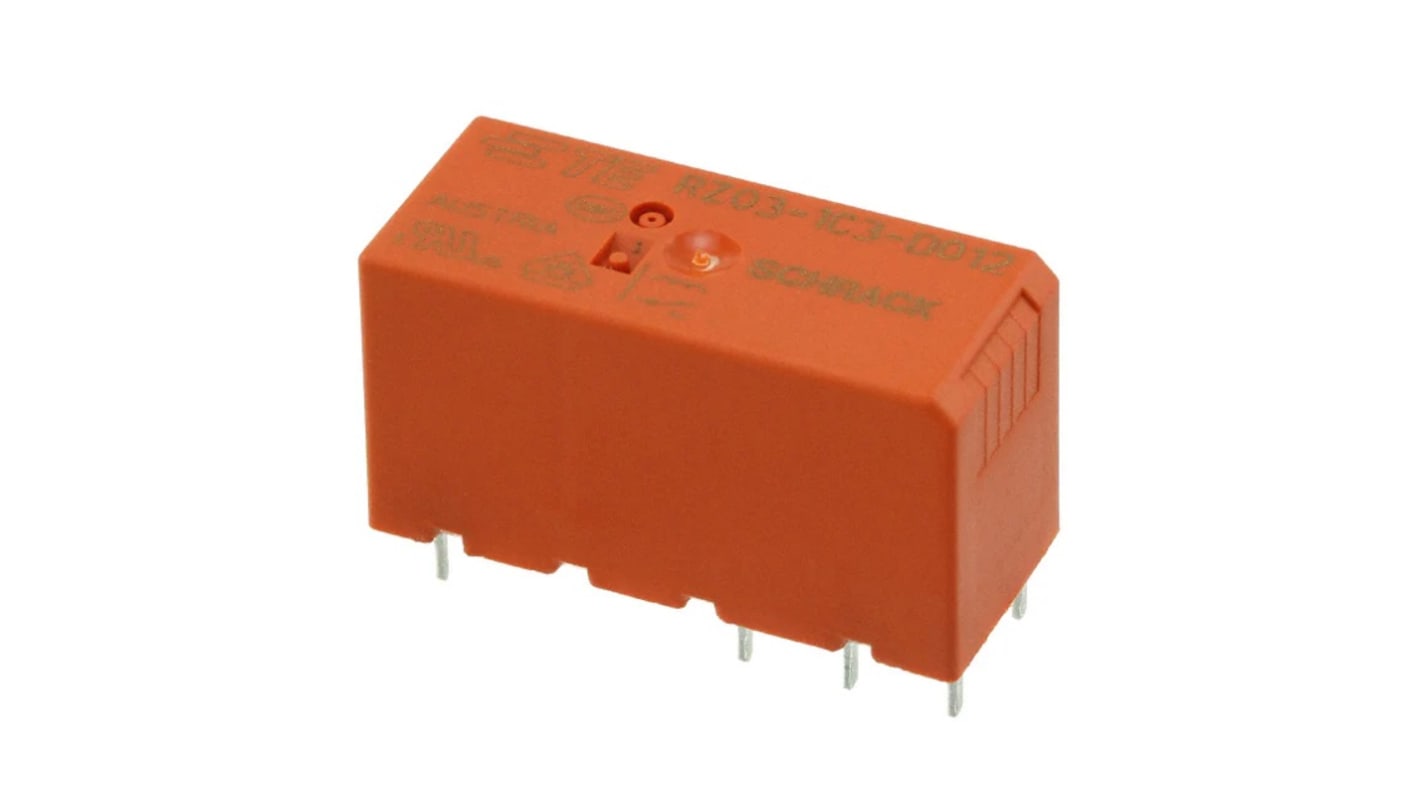

TE Connectivity Panel Power Relay, 12V dc Coil, 500mA Switching Current, SPDT
- RS Stock No.:
- 267-4945
- Distrelec Article No.:
- 304-52-022
- Mfr. Part No.:
- 5-1415899-4
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 box of 60 units)*
£153.96
(exc. VAT)
£184.74
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Box* |
|---|---|---|
| 60 - 60 | £2.566 | £153.96 |
| 120 - 120 | £2.463 | £147.78 |
| 180 - 180 | £2.368 | £142.08 |
| 240 - 240 | £2.281 | £136.86 |
| 300 + | £2.199 | £131.94 |
*price indicative
- RS Stock No.:
- 267-4945
- Distrelec Article No.:
- 304-52-022
- Mfr. Part No.:
- 5-1415899-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 12V dc | |
| Product Type | Power Relay | |
| Contact Configuration | SPDT | |
| Mount Type | Panel | |
| Series | SCHRACK Power PCB Relay RZ | |
| Terminal Type | Solder | |
| Switching Current | 500mA | |
| Minimum Operating Temperature | -55°C | |
| Switching AC Voltage | 250V ac | |
| Coil Resistance | 360Ω | |
| Maximum Operating Temperature | 85°C | |
| Coil Power | 400mW | |
| Standards/Approvals | REACH, RoHS | |
| Width | 12.7mm | |
| Height | 15.7mm | |
| Length | 29mm | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 12V dc | ||
Product Type Power Relay | ||
Contact Configuration SPDT | ||
Mount Type Panel | ||
Series SCHRACK Power PCB Relay RZ | ||
Terminal Type Solder | ||
Switching Current 500mA | ||
Minimum Operating Temperature -55°C | ||
Switching AC Voltage 250V ac | ||
Coil Resistance 360Ω | ||
Maximum Operating Temperature 85°C | ||
Coil Power 400mW | ||
Standards/Approvals REACH, RoHS | ||
Width 12.7mm | ||
Height 15.7mm | ||
Length 29mm | ||
Contact Material Silver Alloy | ||
- COO (Country of Origin):
- AT
The TE Connectivity standard power relay has class F insulation coil with 30 A contact limiting making current and 16 A contact limiting breaking current.
Monostable
Printed circuit board mounting
