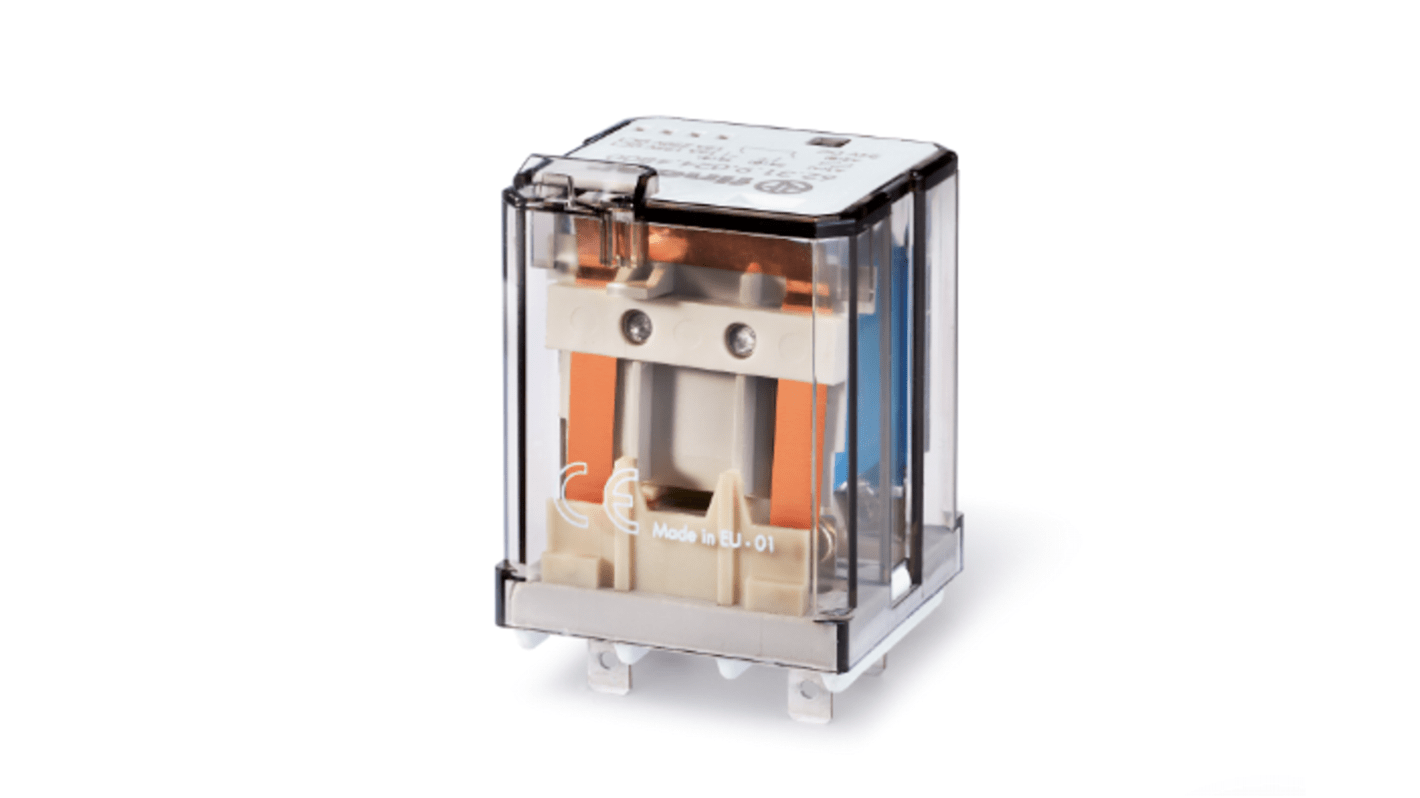

Finder Power Relay, 48V dc Coil, 16A Switching Current, 1 NO
- RS Stock No.:
- 257-7404
- Mfr. Part No.:
- 623190484800
- Brand:
- Finder
Subtotal (1 unit)*
£22.30
(exc. VAT)
£26.76
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £22.30 |
*price indicative
- RS Stock No.:
- 257-7404
- Mfr. Part No.:
- 623190484800
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 48V dc | |
| Product Type | Power Relay | |
| Contact Configuration | 1 NO | |
| Series | 62 | |
| Terminal Type | Plug-In | |
| Switching Current | 16A | |
| Switching AC Voltage | 400V ac | |
| Coil Resistance | 1.8kΩ | |
| Height | 55.3mm | |
| Length | 38.2mm | |
| Coil Power | 1.3W | |
| Standards/Approvals | CSA, CE, EAC, ENEC 03, UKCA | |
| Width | 35.8mm | |
| Contact Material | Silver Tin Oxide | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 48V dc | ||
Product Type Power Relay | ||
Contact Configuration 1 NO | ||
Series 62 | ||
Terminal Type Plug-In | ||
Switching Current 16A | ||
Switching AC Voltage 400V ac | ||
Coil Resistance 1.8kΩ | ||
Height 55.3mm | ||
Length 38.2mm | ||
Coil Power 1.3W | ||
Standards/Approvals CSA, CE, EAC, ENEC 03, UKCA | ||
Width 35.8mm | ||
Contact Material Silver Tin Oxide | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
The Finder Power relay has high DC load switching capability. It has cadmium free contact material. Reinforced insulation between coil and contacts according to EN 60335-1, with 6 mm clearance & 8 mm creep age distance.
DC coils
Plug-in mounting
