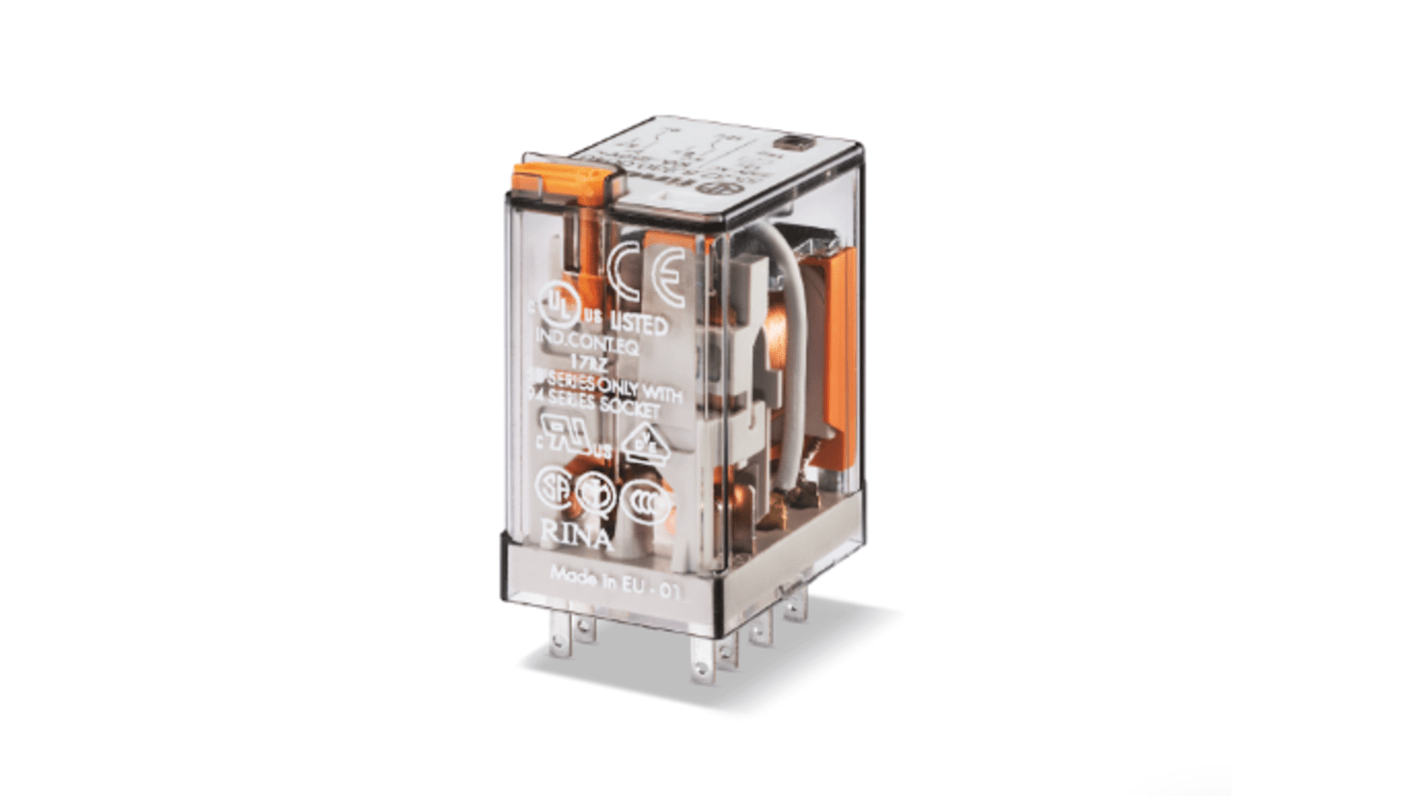

Finder Plug In Relay, 24V dc Coil, 10A Switching Current, DPDT
- RS Stock No.:
- 257-7384
- Mfr. Part No.:
- 553290245040
- Brand:
- Finder
Subtotal (1 unit)*
£14.51
(exc. VAT)
£17.41
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 20 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £14.51 |
*price indicative
- RS Stock No.:
- 257-7384
- Mfr. Part No.:
- 553290245040
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 24V dc | |
Contact Configuration | DPDT | |
Mounting Type | Plug In | |
Switching Current | 10A | |
Number of Poles | 2 | |
Latching | No | |
Series | 55 | |
Terminal Type | Plug In | |
Maximum Switching Voltage AC | 400V ac | |
Maximum Switching Voltage DC | 220V dc | |
Maximum Switching Current AC | 20 A | |
Coil Power | 1.5W | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +85°C | |
Isolation Coil To Contact | 4kV | |
Standards Met | cURus, EAC | |
Life | 200000 Cycles | |
Contact Material | Silver Alloy | |
Number of Coils | Single | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 24V dc | ||
Contact Configuration DPDT | ||
Mounting Type Plug In | ||
Switching Current 10A | ||
Number of Poles 2 | ||
Latching No | ||
Series 55 | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 400V ac | ||
Maximum Switching Voltage DC 220V dc | ||
Maximum Switching Current AC 20 A | ||
Coil Power 1.5W | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Isolation Coil To Contact 4kV | ||
Standards Met cURus, EAC | ||
Life 200000 Cycles | ||
Contact Material Silver Alloy | ||
Number of Coils Single | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
Finder Series 55 Relay, 24V DC Coil Voltage, 10A Switching Current - 553290245040
This relay is a high-quality 24V DC control relay designed to meet the demands of various automation applications. With a double-pole double-throw (DPDT) configuration, it provides versatile switching capabilities while handling currents of up to 10A. Engineered for plug-in mounting, it integrates seamlessly into your control panels, requiring reliable performance under diverse electrical conditions.
Features & Benefits
• Operates at a coil voltage of 24V DC for consistent performance
• DPDT configuration allows for flexible switching options
• Plug-in design simplifies installation and maintenance tasks
• Capable of switching up to 10A, suitable for high current applications
• Rated for maximum AC and DC voltages of 400V and 220V respectively
• Designed for a wide temperature range: -40°C to +85°C
• DPDT configuration allows for flexible switching options
• Plug-in design simplifies installation and maintenance tasks
• Capable of switching up to 10A, suitable for high current applications
• Rated for maximum AC and DC voltages of 400V and 220V respectively
• Designed for a wide temperature range: -40°C to +85°C
Applications
• Utilised in automation for blinds, grilles, and shutters
• Implemented in control panels for electrical power management
• Featured in shipyards for hoists and cranes
• Integrates effectively into road and tunnel lighting systems
• Implemented in control panels for electrical power management
• Featured in shipyards for hoists and cranes
• Integrates effectively into road and tunnel lighting systems
What is the lifespan of this relay under normal operating conditions?
The relay is designed for a mechanical life of approximately 20 million cycles and an electrical life of about 200,000 cycles at rated load.
How does the relay handle different switching loads?
It effectively manages resistive and inductive loads, making it versatile for various applications, including electrical distribution and control operations.
What specifications should be considered for mounting the relay in a control panel?
The relays plug-in design is compatible with standard PCB or 35mm rail mounting, ensuring easy installation while meeting reliability standards.
Is this relay suitable for both AC and DC applications?
Yes, it supports both AC and DC coil options, which makes it suitable for a broad range of electronic and electrical control systems.
