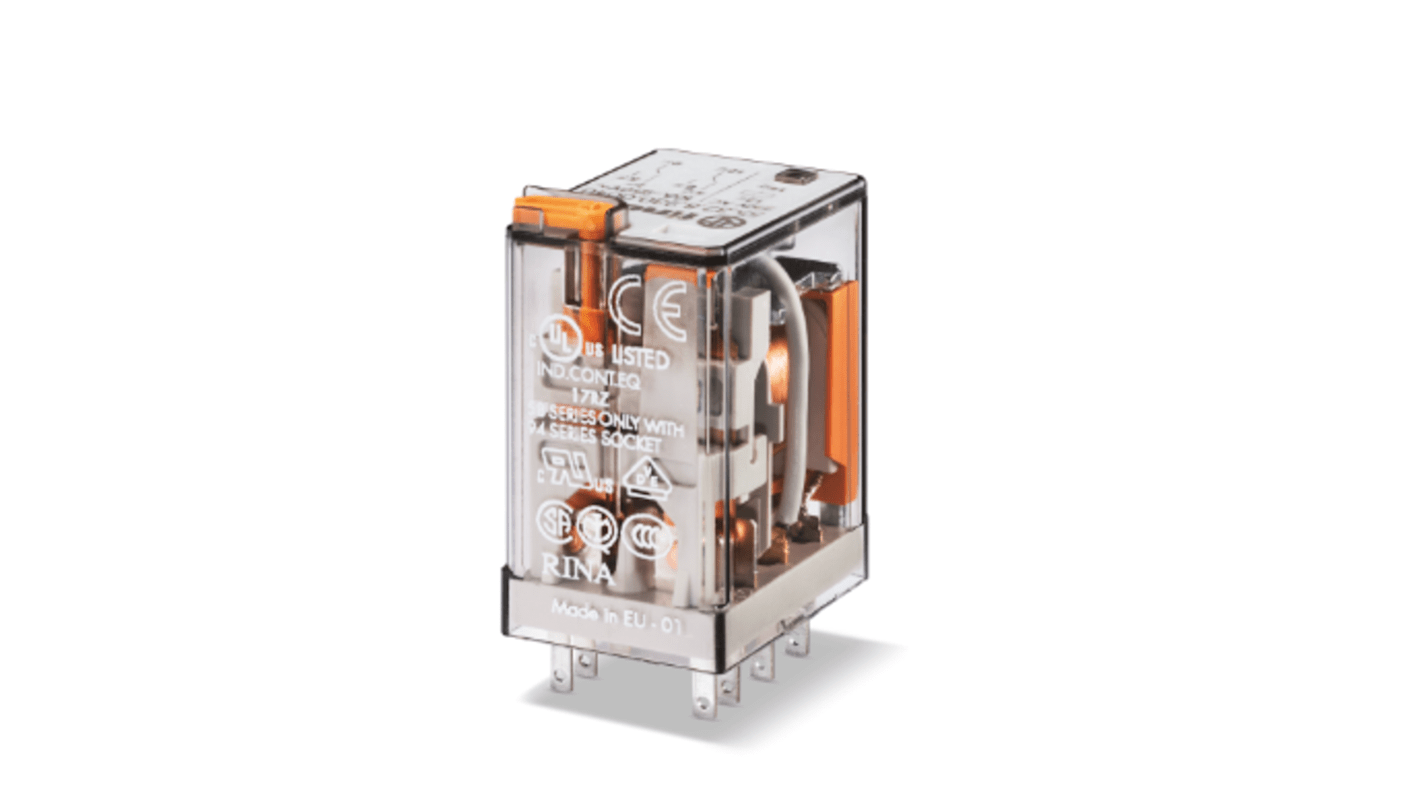

Finder Plug In Power Relay, 24V dc Coil, 10A Switching Current, DPDT

View all Power Relays

Subtotal (1 unit)*

£13.10

(exc. VAT)

£15.72

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 24 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£13.10

*price indicative

RS Stock No.:
257-7383
Mfr. Part No.:
553290240090
Brand:
Finder
Find similar products by selecting one or more attributes.
Select all

Brand

Finder

Coil Voltage

24V dc

Contact Configuration

DPDT

Mounting Type

Plug In

Switching Current

10A

Number of Poles

2

Latching

No

Series

55

Terminal Type

Plug In

Maximum Switching Voltage AC

400V ac

Maximum Switching Voltage DC

220V dc

Maximum Switching Current AC

20 A

Coil Power

1.5W

Life

200000 Cycles

Maximum Operating Temperature

+85°C

Isolation Coil To Contact

4kV

Minimum Operating Temperature

-40°C

Contact Material

Silver Alloy

Standards Met

cURus, EAC

Number of Coils

Single

RoHS Status: Exempt

COO (Country of Origin):
IT

Finder Series 55 Power Relay, 24V DC Coil Voltage, DPDT Contact Configuration - 553290240090


This power relay is a general-purpose device designed to efficiently manage electrical applications. Operating at a coil voltage of 24V DC, it features a double pole double throw (DPDT) contact configuration, capable of handling switching currents up to 10 A. With robust construction, it is suitable for a variety of industrial tasks, ensuring reliable performance in demanding environments.

Features & Benefits


• Maximum switching voltage reaches 400V AC, ensuring high voltage functionality
• Insulation strength of 4 kV between coil and contact provides enhanced safety
• Designed for plug-in mounting, facilitating easy installation and maintenance
• Mechanical life rated at 200,000 cycles for prolonged reliability
• Compact size optimises space usage in control panels
• Cadmium-free contacts support environmentally friendly practices

Applications


• Utilised in road and tunnel lighting systems
• Employed in automation for blinds and shutters
• Integrates into hoists and cranes for operational control
• Commonly used in circuit breakers and switchgear
• Suitable for control panels in electrical distribution

What is the maximum ambient temperature this relay can operate in?


It can function effectively within an ambient temperature range of -40°C to +85°C, making it suitable for various environmental conditions.

How does the contact configuration enhance its application versatility?


The DPDT configuration allows simultaneous control of multiple circuits, increasing its utility in complex systems, such as automation or safety applications.

What are the implications of its electrical life rating on maintenance schedules?


With a life expectancy of 200,000 cycles at rated load, it significantly reduces the frequency of maintenance interventions, allowing for uninterrupted operations in demanding conditions.
