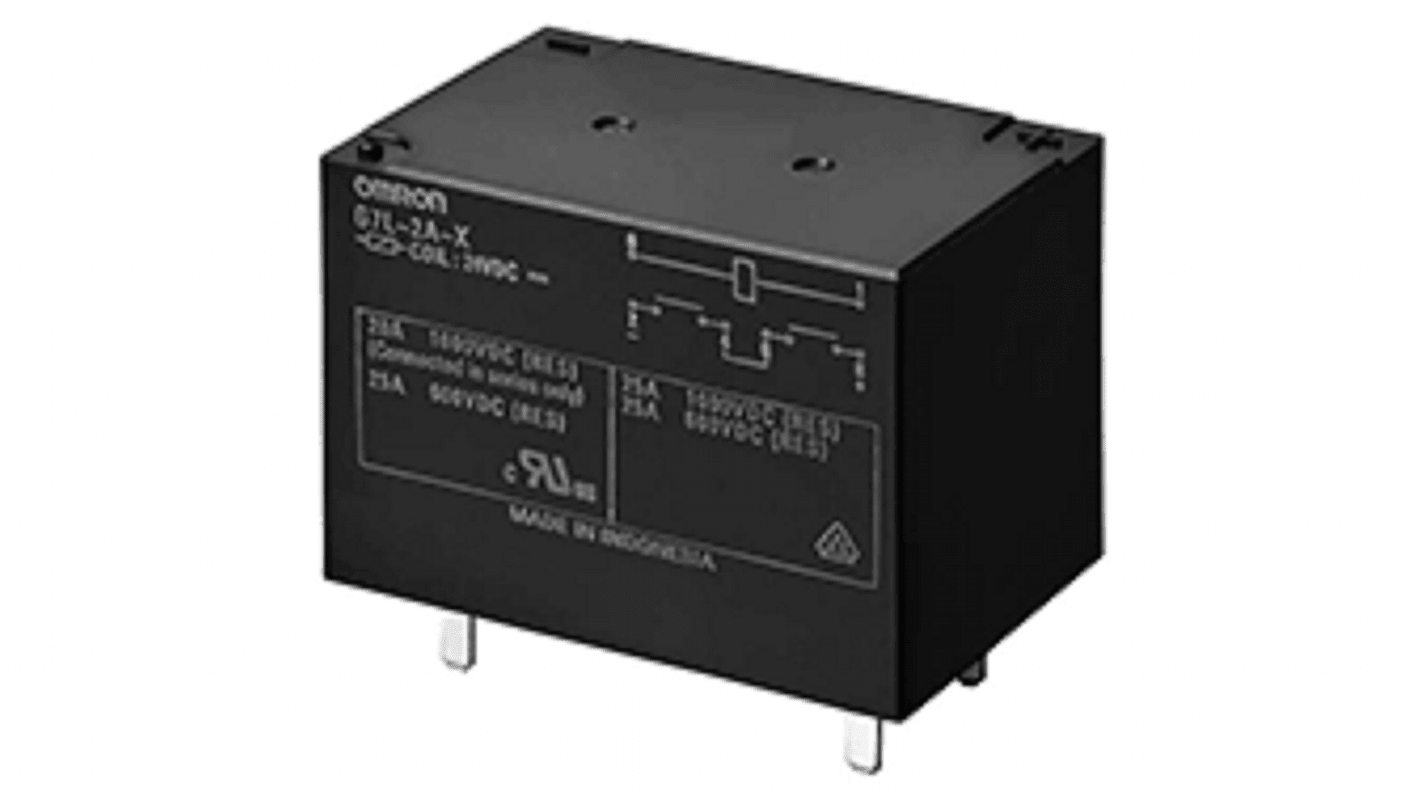

Omron PCB Power Relay, 24V dc Coil, 20A Switching Current, DPST
- RS Stock No.:
- 254-3155
- Mfr. Part No.:
- G7L-2A-X-L DC24
- Brand:
- Omron
Subtotal (1 tray of 20 units)*
£1,335.38
(exc. VAT)
£1,602.46
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 21 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 20 + | £66.769 | £1,335.38 |
*price indicative
- RS Stock No.:
- 254-3155
- Mfr. Part No.:
- G7L-2A-X-L DC24
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Power Relay | |
| Coil Voltage | 24V dc | |
| Contact Configuration | DPST | |
| Mount Type | PCB | |
| Series | G7L-X | |
| Terminal Type | PCB Pin | |
| Switching Current | 20A | |
| Minimum Operating Temperature | -40°C | |
| Switching DC Voltage | 1kV dc | |
| Coil Resistance | 250Ω | |
| Maximum Operating Temperature | 85°C | |
| Height | 41mm | |
| Length | 52.5mm | |
| Standards/Approvals | EN, IEC, UL, VDE | |
| Width | 35.5mm | |
| Coil Power | 0.6W | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Power Relay | ||
Coil Voltage 24V dc | ||
Contact Configuration DPST | ||
Mount Type PCB | ||
Series G7L-X | ||
Terminal Type PCB Pin | ||
Switching Current 20A | ||
Minimum Operating Temperature -40°C | ||
Switching DC Voltage 1kV dc | ||
Coil Resistance 250Ω | ||
Maximum Operating Temperature 85°C | ||
Height 41mm | ||
Length 52.5mm | ||
Standards/Approvals EN, IEC, UL, VDE | ||
Width 35.5mm | ||
Coil Power 0.6W | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
The Omron power relay is compact power relay capable of switching 1,000 VDC loads, dc high capacIty switching for both normal and reverse polarIty available by adding reverse polarIty specification addItion.
Two poles wired in series to break or switch 600 to 1,000 VDC
Contribute for lower power consumption(low power consumption of approx 600 mW at 50% reduced coil voltage)
UL and EN conformed
Designed for safety with 6.0-mm contact gap (two-pole series wiring)
