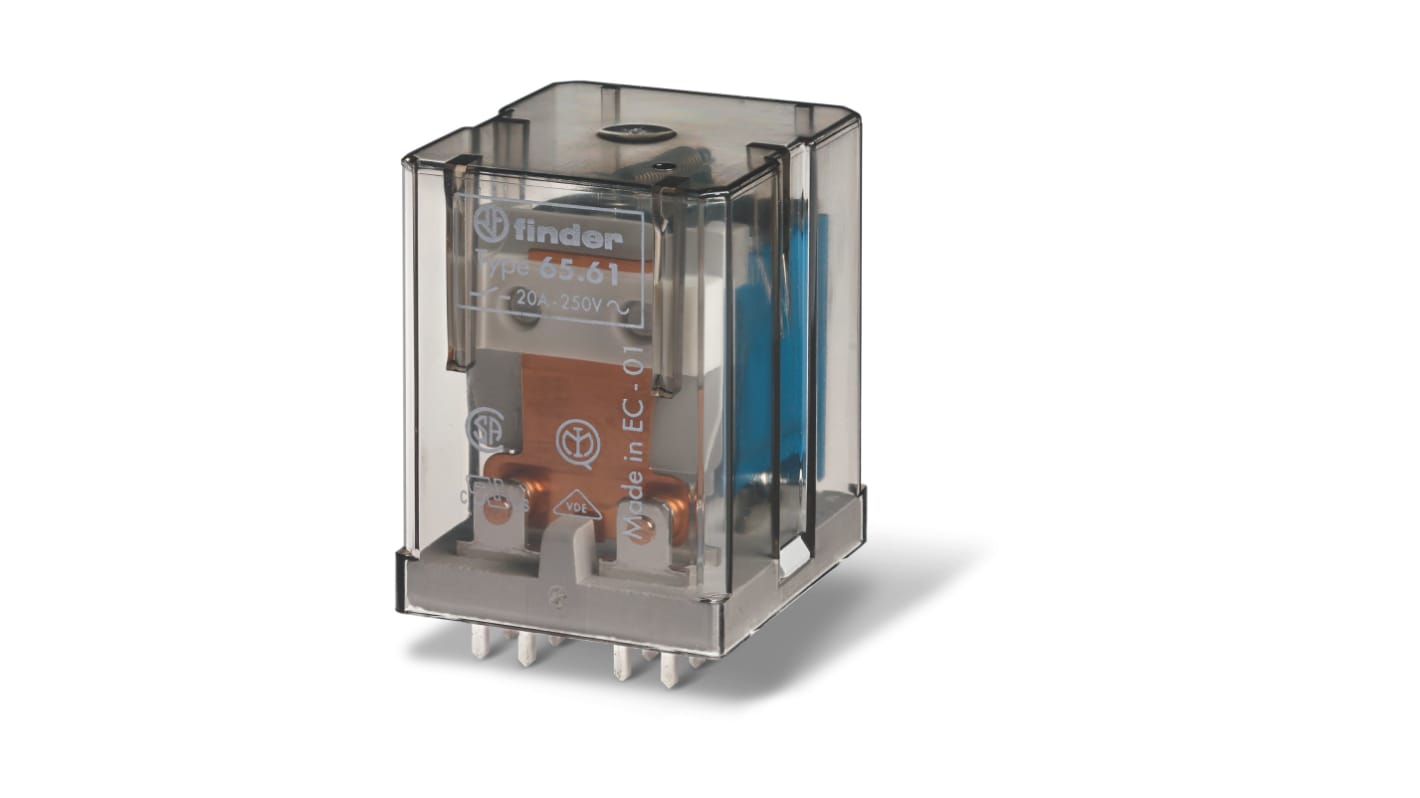

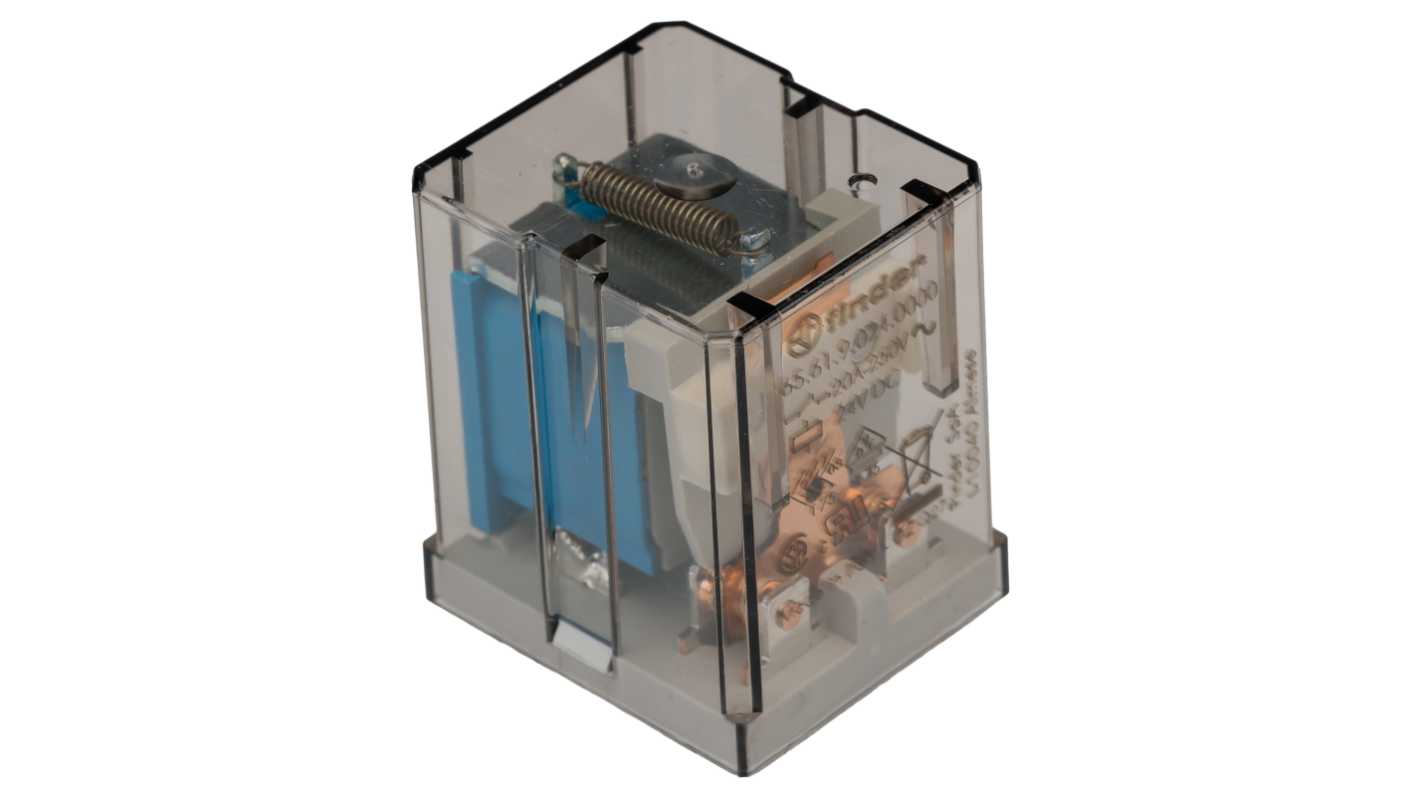

Finder PCB Mount Power Relay, 24V dc Coil, 20A Switching Current, SPST, SPST
- RS Stock No.:
- 248-2641
- Mfr. Part No.:
- 656190240000
- Brand:
- Finder
Subtotal (1 pack of 10 units)*
£158.04
(exc. VAT)
£189.65
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 10 unit(s) shipping from 16 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 + | £15.804 | £158.04 |
*price indicative
- RS Stock No.:
- 248-2641
- Mfr. Part No.:
- 656190240000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 24V dc | |
Contact Configuration | SPST, SPST | |
Mounting Type | PCB Mount | |
Switching Current | 20A | |
Number of Poles | 1 | |
Latching | No | |
Series | 65 | |
Maximum Switching Voltage AC | 400V ac | |
Maximum Switching Voltage DC | 220V dc | |
Maximum Switching Current AC | 120 A | |
Coil Power | 2.2W | |
Minimum Operating Temperature | -40°C | |
Contact Material | Silver Alloy | |
Life | 80000 Cycles | |
Isolation Coil To Contact | 4kV | |
Maximum Operating Temperature | +75°C | |
Standards Met | cURus, EAC | |
Number of Coils | Single | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 24V dc | ||
Contact Configuration SPST, SPST | ||
Mounting Type PCB Mount | ||
Switching Current 20A | ||
Number of Poles 1 | ||
Latching No | ||
Series 65 | ||
Maximum Switching Voltage AC 400V ac | ||
Maximum Switching Voltage DC 220V dc | ||
Maximum Switching Current AC 120 A | ||
Coil Power 2.2W | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver Alloy | ||
Life 80000 Cycles | ||
Isolation Coil To Contact 4kV | ||
Maximum Operating Temperature +75°C | ||
Standards Met cURus, EAC | ||
Number of Coils Single | ||
- COO (Country of Origin):
- IT
Finder Series 65 Power Relay, 24V DC Coil Voltage, 20A Switching Current - 656190240000
This power relay offers robust performance in various electrical applications. Designed for PCB mounting, it features a single pole, single throw (SPST) configuration with a coil voltage of 24V DC. The relay can handle a switching current of up to 20A and is built to operate within a temperature range of -40°C to +75°C.
Features & Benefits
• Equipped with AgSnO2 contact material for improved reliability
• Can switch high voltages up to 400V AC and 220V DC
• Supports a mechanical lifespan of up to 80,000 cycles
• Ideal for applications requiring precise control and low power consumption
• Provides isolation with a rating of 4kV between coil and contacts
• Efficient design for easy integration into various control systems
• Can switch high voltages up to 400V AC and 220V DC
• Supports a mechanical lifespan of up to 80,000 cycles
• Ideal for applications requiring precise control and low power consumption
• Provides isolation with a rating of 4kV between coil and contacts
• Efficient design for easy integration into various control systems
Applications
• Utilised in industrial washing machines for automated control
• Suitable for use in burners and boilers requiring efficient switching
• Incorporated into power generators for reliable operation
• Employed in Jacuzzis and hot tubs to manage heating systems
• Used within electrical distribution panels for enhanced control
• Suitable for use in burners and boilers requiring efficient switching
• Incorporated into power generators for reliable operation
• Employed in Jacuzzis and hot tubs to manage heating systems
• Used within electrical distribution panels for enhanced control
How does the relay handle high current loads?
The relay is designed to manage loads of up to 20A, with a maximum peak current of 120A for short durations, ensuring reliable performance in demanding applications.
What is the importance of the AgSnO2 contact material?
AgSnO2 contact material contributes to reduced wear and extended lifespan, making it ideal for high-frequency or frequent switching applications.
Can this relay operate in extreme temperatures?
Yes, it can effectively function within a temperature range from -40°C to +75°C, making it suitable for various environmental conditions.
What ensures the relays longevity?
It features a mechanical lifespan of approximately 80,000 cycles, which minimises maintenance needs and downtime in automated systems.
