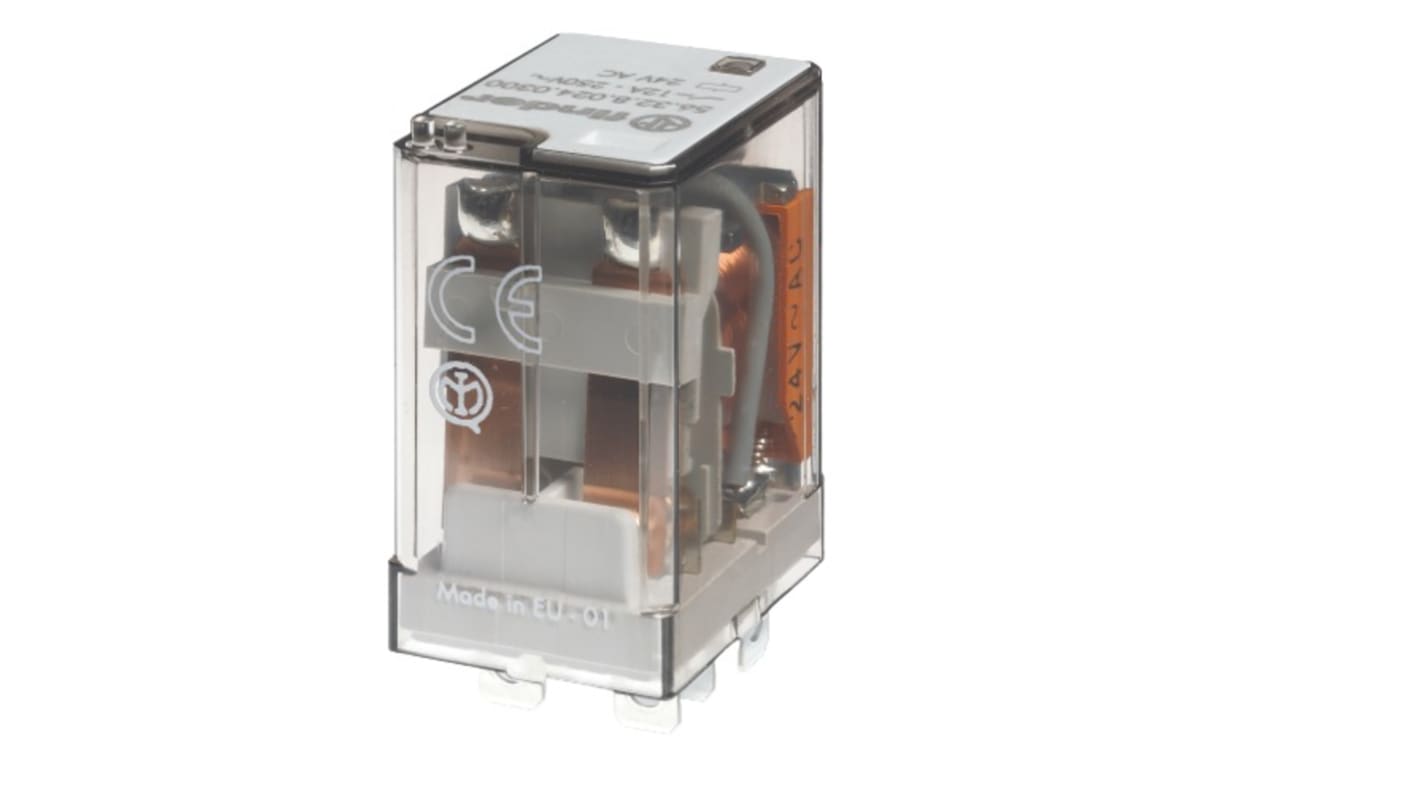

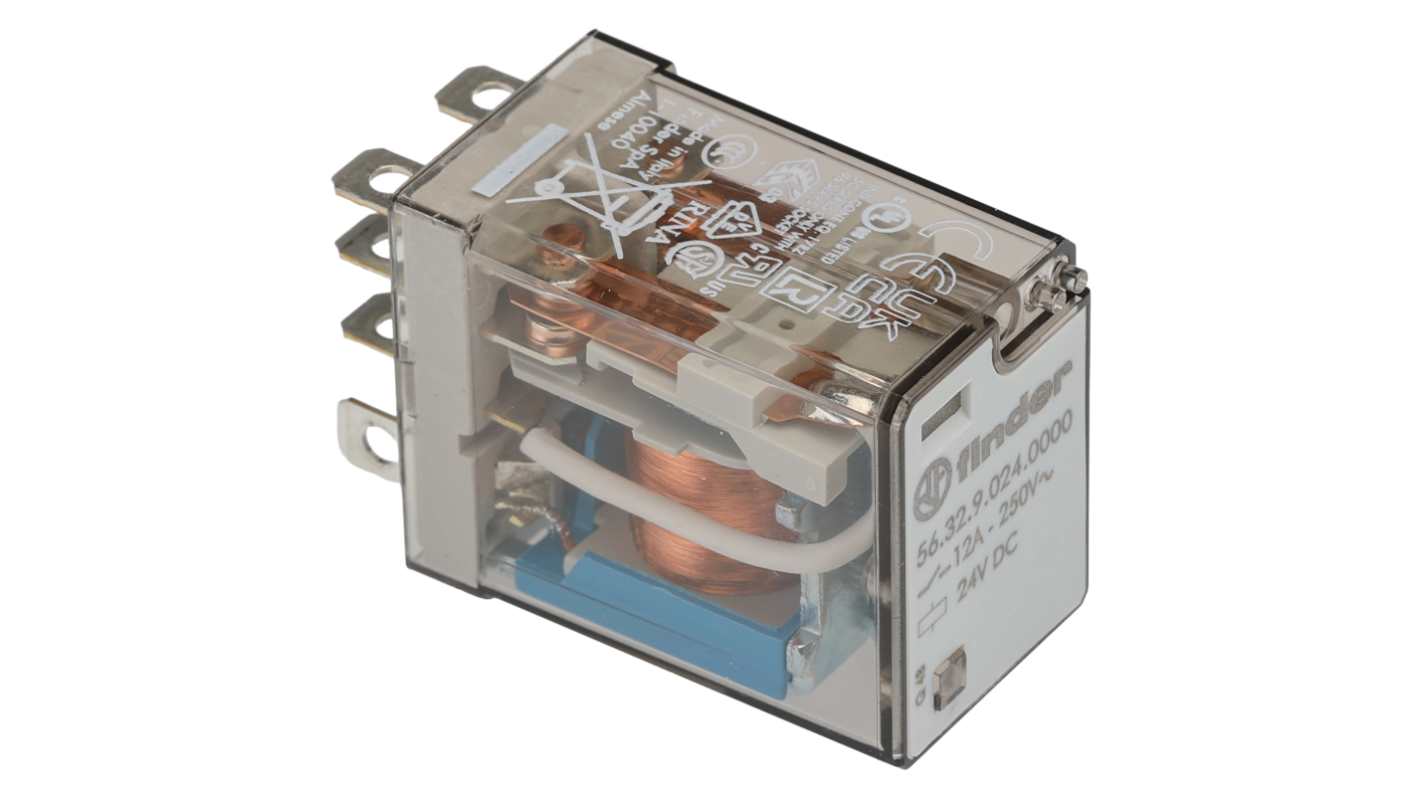

Finder Flange Mount Power Relay, 24V dc Coil, 12A Switching Current, DPDT
- RS Stock No.:
- 248-1728
- Mfr. Part No.:
- 563290240000
- Brand:
- Finder
Subtotal (1 pack of 10 units)*
£140.99
(exc. VAT)
£169.19
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 50 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 + | £14.099 | £140.99 |
*price indicative
- RS Stock No.:
- 248-1728
- Mfr. Part No.:
- 563290240000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 24V dc | |
Contact Configuration | DPDT | |
Mounting Type | Flange Mount | |
Switching Current | 12A | |
Number of Poles | 2 | |
Latching | No | |
Series | 56 | |
Terminal Type | Plug In | |
Maximum Switching Voltage AC | 400V ac | |
Maximum Switching Voltage DC | 220V dc | |
Maximum Switching Current AC | 20 A | |
Coil Power | 1.5W | |
Maximum Operating Temperature | +70°C | |
Isolation Coil To Contact | 4kV | |
Contact Material | Silver Alloy | |
Standards Met | cURus, EAC | |
Life | 100000 Cycles | |
Minimum Operating Temperature | -40°C | |
Number of Coils | Single | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 24V dc | ||
Contact Configuration DPDT | ||
Mounting Type Flange Mount | ||
Switching Current 12A | ||
Number of Poles 2 | ||
Latching No | ||
Series 56 | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 400V ac | ||
Maximum Switching Voltage DC 220V dc | ||
Maximum Switching Current AC 20 A | ||
Coil Power 1.5W | ||
Maximum Operating Temperature +70°C | ||
Isolation Coil To Contact 4kV | ||
Contact Material Silver Alloy | ||
Standards Met cURus, EAC | ||
Life 100000 Cycles | ||
Minimum Operating Temperature -40°C | ||
Number of Coils Single | ||
- COO (Country of Origin):
- IT
Finder Series 56 Power Relay, 24V DC Coil Voltage, 12A Switching Current - 563290240000
This power relay is a compact and efficient device designed to control electrical power in various applications. With a coil voltage of 24V DC and a dependable DPDT configuration, it is engineered to manage up to 12A. The flange mount relay features a robust construction and offers reliability in demanding environments, supporting a maximum switching voltage of 400V AC, making it suitable for industrial applications.
Features & Benefits
• Plug-in design facilitates easy installation and replacement
• Capable of handling a switching current of 20A
• High insulation rating of 4kV ensures robust performance
• Metal contact configuration enhances durability and lifespan
• Latching capability not included, providing straightforward operation
• Operating temperature range of -40°C to +70°C ensures reliability
• Capable of handling a switching current of 20A
• High insulation rating of 4kV ensures robust performance
• Metal contact configuration enhances durability and lifespan
• Latching capability not included, providing straightforward operation
• Operating temperature range of -40°C to +70°C ensures reliability
Applications
• Used in control panels for electric power management
• Suitable for industrial motors and circuit breakers
• Integrated into vending machines and control systems for industrial ovens
• Utilised in carousel warehouses for streamlined operations
• Suitable for industrial motors and circuit breakers
• Integrated into vending machines and control systems for industrial ovens
• Utilised in carousel warehouses for streamlined operations
How does the switching current impact performance in high-demand scenarios?
The relay supports a maximum switching current of 20A, ensuring it can handle significant electrical loads without compromising reliability, making it ideal for high-demand applications.
What is the significance of using a DPDT configuration in this relay?
The double-pole, double-throw (DPDT) design allows for versatile control over multiple circuits, providing flexibility in applications that require switching between different operational modes.
Can this relay be used in extreme temperatures?
Yes, with an operational temperature range between -40°C and +70°C, it is suited for a variety of environments, ensuring consistent performance even under harsh conditions.
