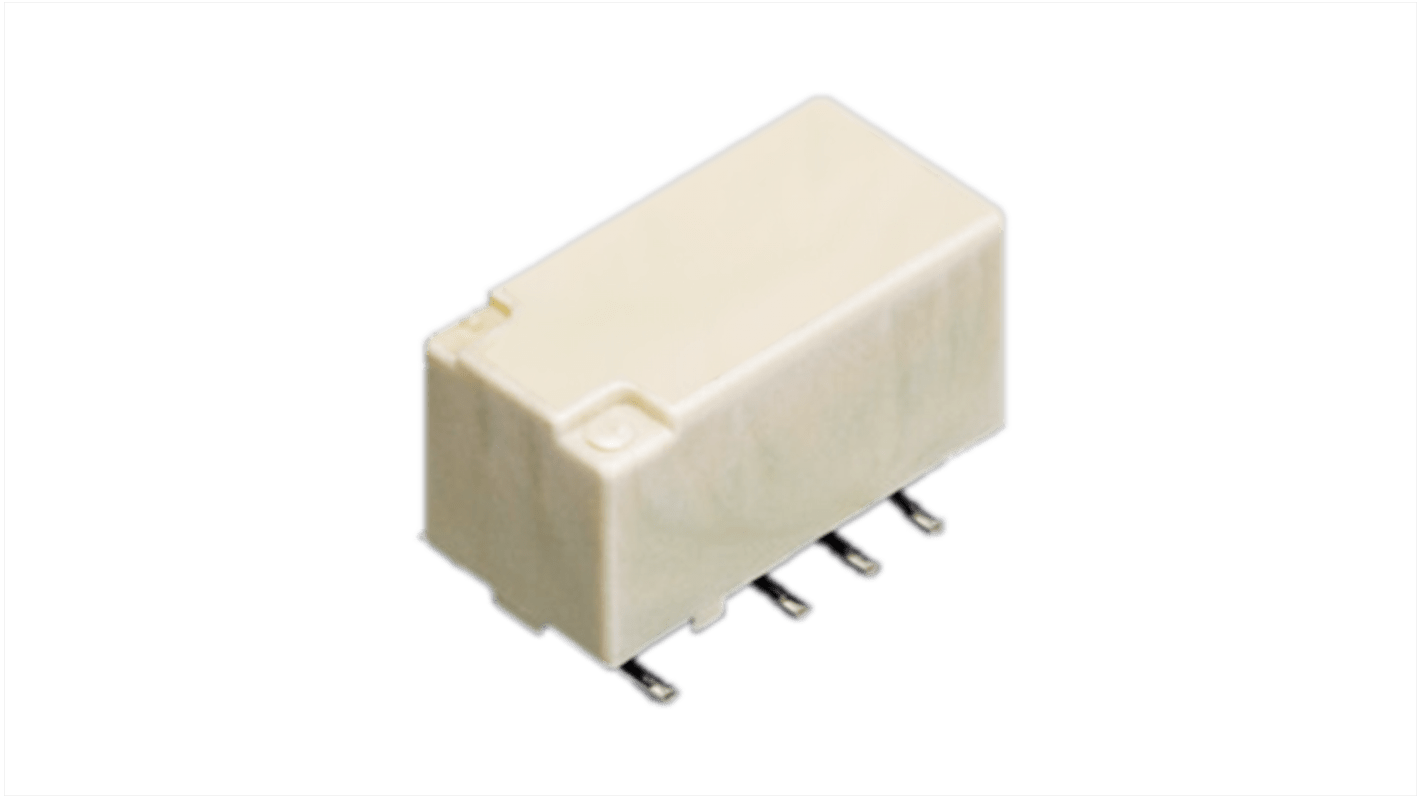

Panasonic Surface Non-Latching Relay, 4.5V dc Coil, 11.1mA Switching Current, DPDT
- RS Stock No.:
- 247-4442
- Mfr. Part No.:
- TXS2SA-4.5V-1
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 unit)*
£4.11
(exc. VAT)
£4.93
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | £4.11 |
| 5 - 9 | £3.98 |
| 10 - 19 | £3.93 |
| 20 + | £3.81 |
*price indicative
- RS Stock No.:
- 247-4442
- Mfr. Part No.:
- TXS2SA-4.5V-1
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Product Type | Non-Latching Relay | |
| Coil Voltage | 4.5V dc | |
| Contact Configuration | DPDT | |
| Mount Type | Surface | |
| Series | TX | |
| Terminal Type | Solder | |
| Switching Current | 11.1mA | |
| Switching AC Voltage | 250V ac | |
| Switching Power | 60W | |
| Switching DC Voltage | 30V dc | |
| Minimum Operating Temperature | -40°C | |
| Coil Resistance | 145Ω | |
| Maximum Operating Temperature | 60°C | |
| Length | 22mm | |
| Coil Power | 200mW | |
| Height | 12mm | |
| Width | 7mm | |
| Standards/Approvals | RoHS, UL, VDE, CSA | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Product Type Non-Latching Relay | ||
Coil Voltage 4.5V dc | ||
Contact Configuration DPDT | ||
Mount Type Surface | ||
Series TX | ||
Terminal Type Solder | ||
Switching Current 11.1mA | ||
Switching AC Voltage 250V ac | ||
Switching Power 60W | ||
Switching DC Voltage 30V dc | ||
Minimum Operating Temperature -40°C | ||
Coil Resistance 145Ω | ||
Maximum Operating Temperature 60°C | ||
Length 22mm | ||
Coil Power 200mW | ||
Height 12mm | ||
Width 7mm | ||
Standards/Approvals RoHS, UL, VDE, CSA | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
The Panasonic TXS series of signal relays having 2 form C contact arrangement. It is a SA type surface mount type device, it has single side stable operating function. The rated coil voltage is 4.5 Vdc. It is typically used in applications like telecommunication equipment and modem, medical and security equipment.
The contact material is standard Ag+Au (clad)
This device comes in tube packaging
