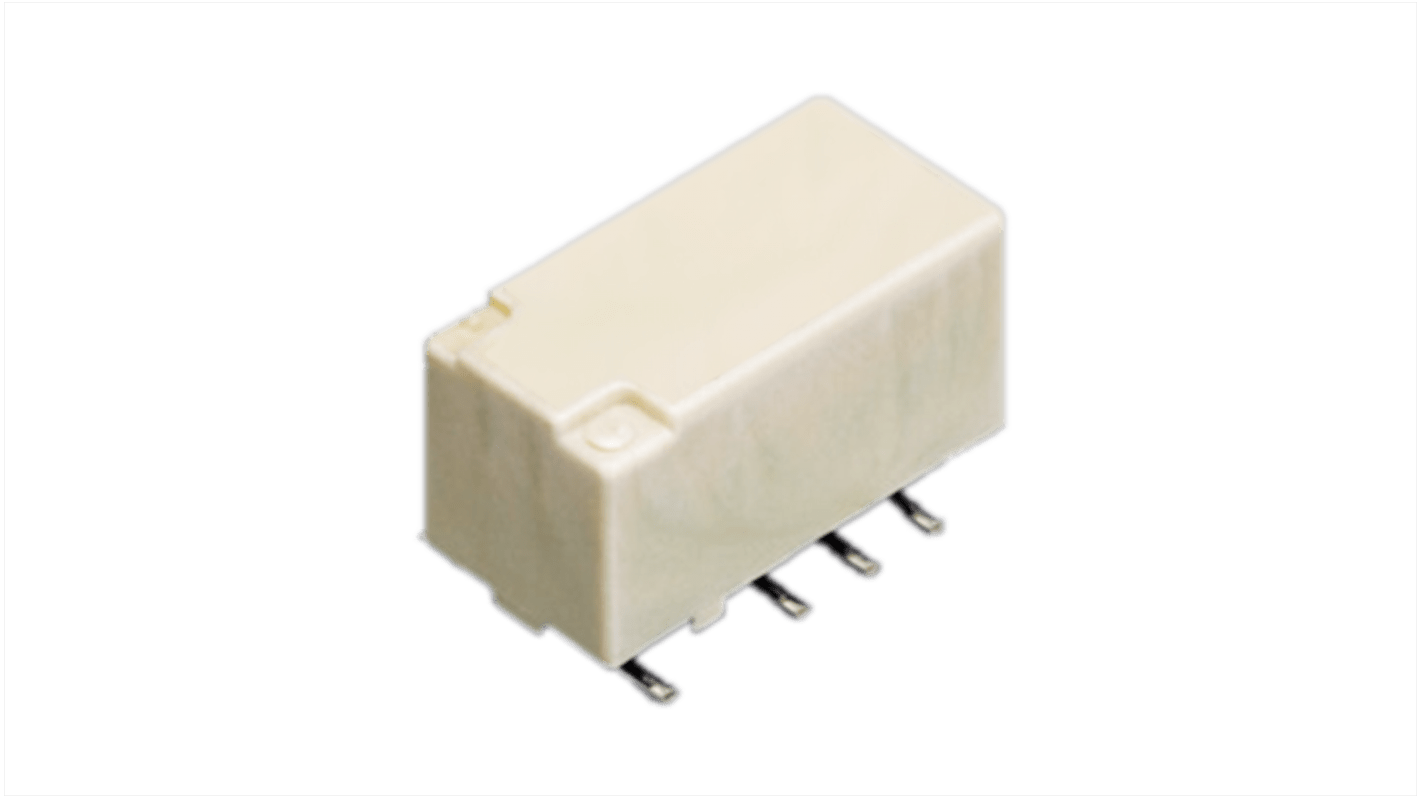

Panasonic Surface Non-Latching Relay, 5V dc Coil, 28.1mA Switching Current, DPDT
- RS Stock No.:
- 247-4410
- Mfr. Part No.:
- TX2SA-5V-Z
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 reel of 500 units)*
£1,169.50
(exc. VAT)
£1,403.50
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 500 - 500 | £2.339 | £1,169.50 |
| 1000 - 1500 | £2.318 | £1,159.00 |
| 2000 + | £2.287 | £1,143.50 |
*price indicative
- RS Stock No.:
- 247-4410
- Mfr. Part No.:
- TX2SA-5V-Z
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Product Type | Non-Latching Relay | |
| Coil Voltage | 5V dc | |
| Contact Configuration | DPDT | |
| Mount Type | Surface | |
| Series | TX | |
| Terminal Type | Solder | |
| Switching Current | 28.1mA | |
| Switching AC Voltage | 250V ac | |
| Switching Power | 60W | |
| Switching DC Voltage | 30V dc | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 60°C | |
| Coil Resistance | 145Ω | |
| Standards/Approvals | VDE, UL, RoHS, CSA | |
| Length | 22mm | |
| Width | 7mm | |
| Height | 12mm | |
| Coil Power | 200mW | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Product Type Non-Latching Relay | ||
Coil Voltage 5V dc | ||
Contact Configuration DPDT | ||
Mount Type Surface | ||
Series TX | ||
Terminal Type Solder | ||
Switching Current 28.1mA | ||
Switching AC Voltage 250V ac | ||
Switching Power 60W | ||
Switching DC Voltage 30V dc | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 60°C | ||
Coil Resistance 145Ω | ||
Standards/Approvals VDE, UL, RoHS, CSA | ||
Length 22mm | ||
Width 7mm | ||
Height 12mm | ||
Coil Power 200mW | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
- COO (Country of Origin):
- JP
The Panasonic 2 form C relays with 2000 Vrms of dielectric strength and rated for 2 A (or less). This relays from TX series operates with single side stable function and has rated coil voltage of 5 Vdc. It is a SA type surface mount device.
It has standard Ag+Au (clad) contact material
This product comes in a tape and reel packaging
