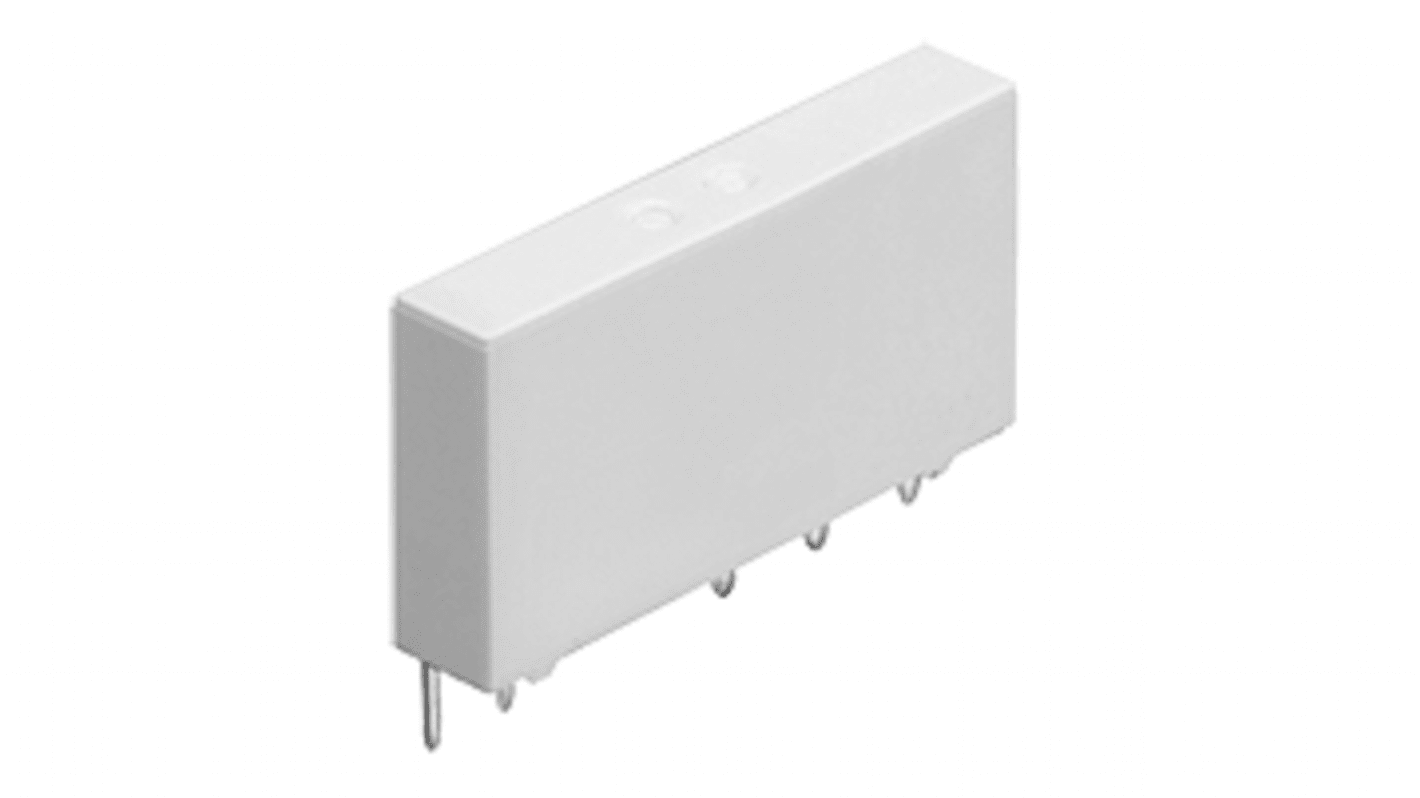

Panasonic PCB Non-Latching Relay, 5V dc Coil, 34mA Switching Current, SPDT
- RS Stock No.:
- 247-4133
- Mfr. Part No.:
- APF30305
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 tube of 20 units)*
£125.42
(exc. VAT)
£150.50
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 4,900 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 20 - 20 | £6.271 | £125.42 |
| 40 - 80 | £5.876 | £117.52 |
| 100 - 180 | £5.691 | £113.82 |
| 200 + | £5.481 | £109.62 |
*price indicative
- RS Stock No.:
- 247-4133
- Mfr. Part No.:
- APF30305
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Product Type | Non-Latching Relay | |
| Coil Voltage | 5V dc | |
| Contact Configuration | SPDT | |
| Mount Type | PCB | |
| Series | PF RELAYS | |
| Terminal Type | Solder | |
| Switching Current | 34mA | |
| Switching Power | 1.5kVA | |
| Switching DC Voltage | 24V dc | |
| Switching AC Voltage | 250V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 15mm | |
| Width | 5mm | |
| Standards/Approvals | EN61810-1, EN60335-1, EN61010 | |
| Length | 28mm | |
| Coil Power | 200mW | |
| Contact Material | Silver Alloy Gold Plated | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Product Type Non-Latching Relay | ||
Coil Voltage 5V dc | ||
Contact Configuration SPDT | ||
Mount Type PCB | ||
Series PF RELAYS | ||
Terminal Type Solder | ||
Switching Current 34mA | ||
Switching Power 1.5kVA | ||
Switching DC Voltage 24V dc | ||
Switching AC Voltage 250V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Height 15mm | ||
Width 5mm | ||
Standards/Approvals EN61810-1, EN60335-1, EN61010 | ||
Length 28mm | ||
Coil Power 200mW | ||
Contact Material Silver Alloy Gold Plated | ||
Contact Resistance 100mΩ | ||
The Panasonic makes APF series of power relays with 1 form C contact arrangement, the relay has single side stable operating function. The rated coil voltage is 5 Vdc.
Used in industrial equipment and office equipment
Measuring equipment and test equipment, programmable controllers and household appliances for Europe
