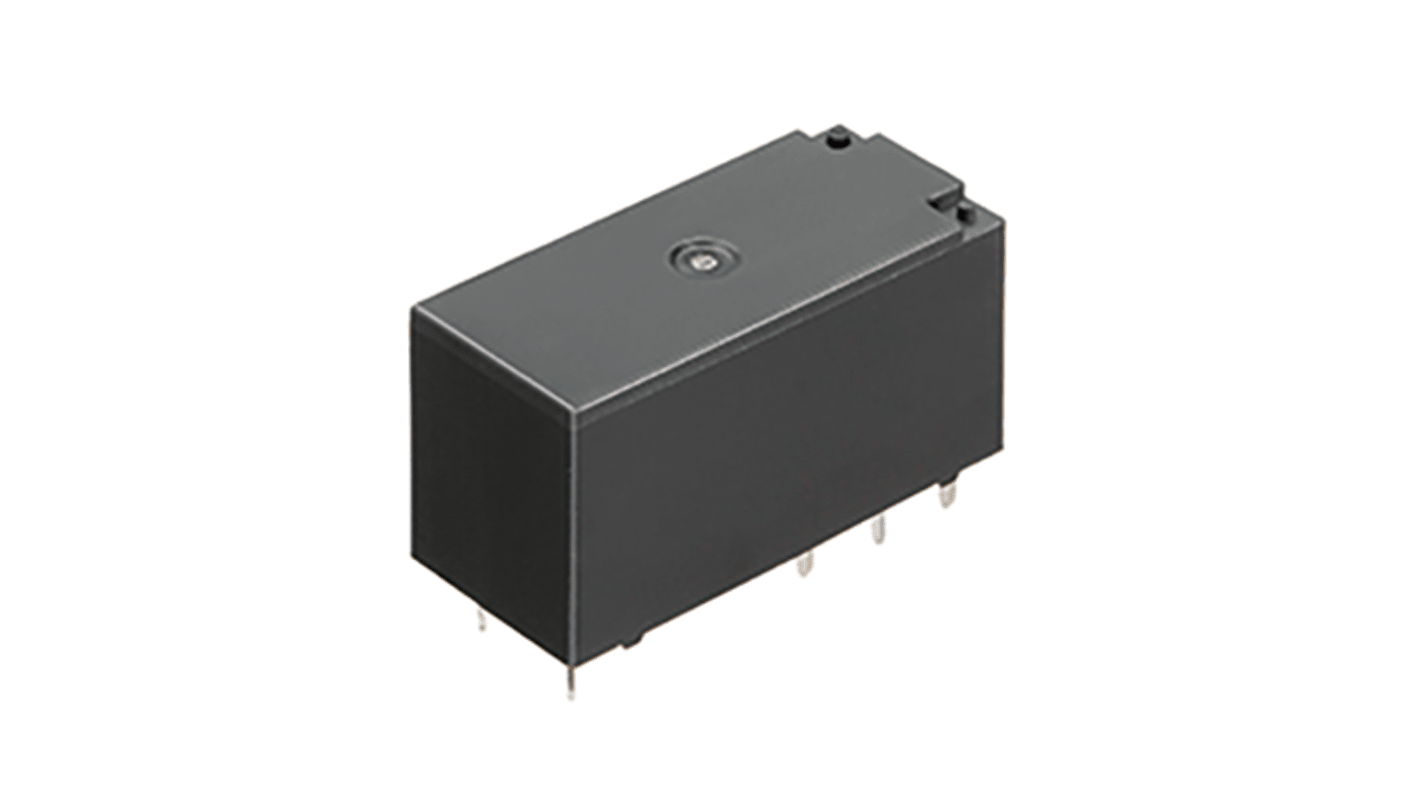

Panasonic PCB Non-Latching Relay, 12V dc Coil, 33.3mA Switching Current, SPDT
- RS Stock No.:
- 247-4119
- Distrelec Article No.:
- 304-33-069
- Mfr. Part No.:
- ALZN1B12W
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 pack of 2 units)*
£3.85
(exc. VAT)
£4.62
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 140 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | £1.925 | £3.85 |
| 10 - 22 | £1.855 | £3.71 |
| 24 - 48 | £1.79 | £3.58 |
| 50 + | £1.725 | £3.45 |
*price indicative
- RS Stock No.:
- 247-4119
- Distrelec Article No.:
- 304-33-069
- Mfr. Part No.:
- ALZN1B12W
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Product Type | Non-Latching Relay | |
| Coil Voltage | 12V dc | |
| Contact Configuration | SPDT | |
| Mount Type | PCB | |
| Series | LZ-N | |
| Terminal Type | Solder | |
| Switching Current | 33.3mA | |
| Switching DC Voltage | 30V dc | |
| Switching AC Voltage | 250V ac | |
| Minimum Operating Temperature | -40°C | |
| Switching Power | 60W | |
| Maximum Operating Temperature | 60°C | |
| Coil Resistance | 145Ω | |
| Standards/Approvals | VDE, RoHS, UL, CSA | |
| Width | 7mm | |
| Coil Power | 200mW | |
| Height | 12mm | |
| Length | 22mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Product Type Non-Latching Relay | ||
Coil Voltage 12V dc | ||
Contact Configuration SPDT | ||
Mount Type PCB | ||
Series LZ-N | ||
Terminal Type Solder | ||
Switching Current 33.3mA | ||
Switching DC Voltage 30V dc | ||
Switching AC Voltage 250V ac | ||
Minimum Operating Temperature -40°C | ||
Switching Power 60W | ||
Maximum Operating Temperature 60°C | ||
Coil Resistance 145Ω | ||
Standards/Approvals VDE, RoHS, UL, CSA | ||
Width 7mm | ||
Coil Power 200mW | ||
Height 12mm | ||
Length 22mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
The Panasonic ALZN series of power relays. It has contact arrangement of 1 form C. The device has coil insulation of class B. The rated coil voltage is 12 Vdc. It has a flux-resistant, protective construction.
The device comes in carton packaging
It is used in variety of applications like home appliance, office equipment and industrial equipment
