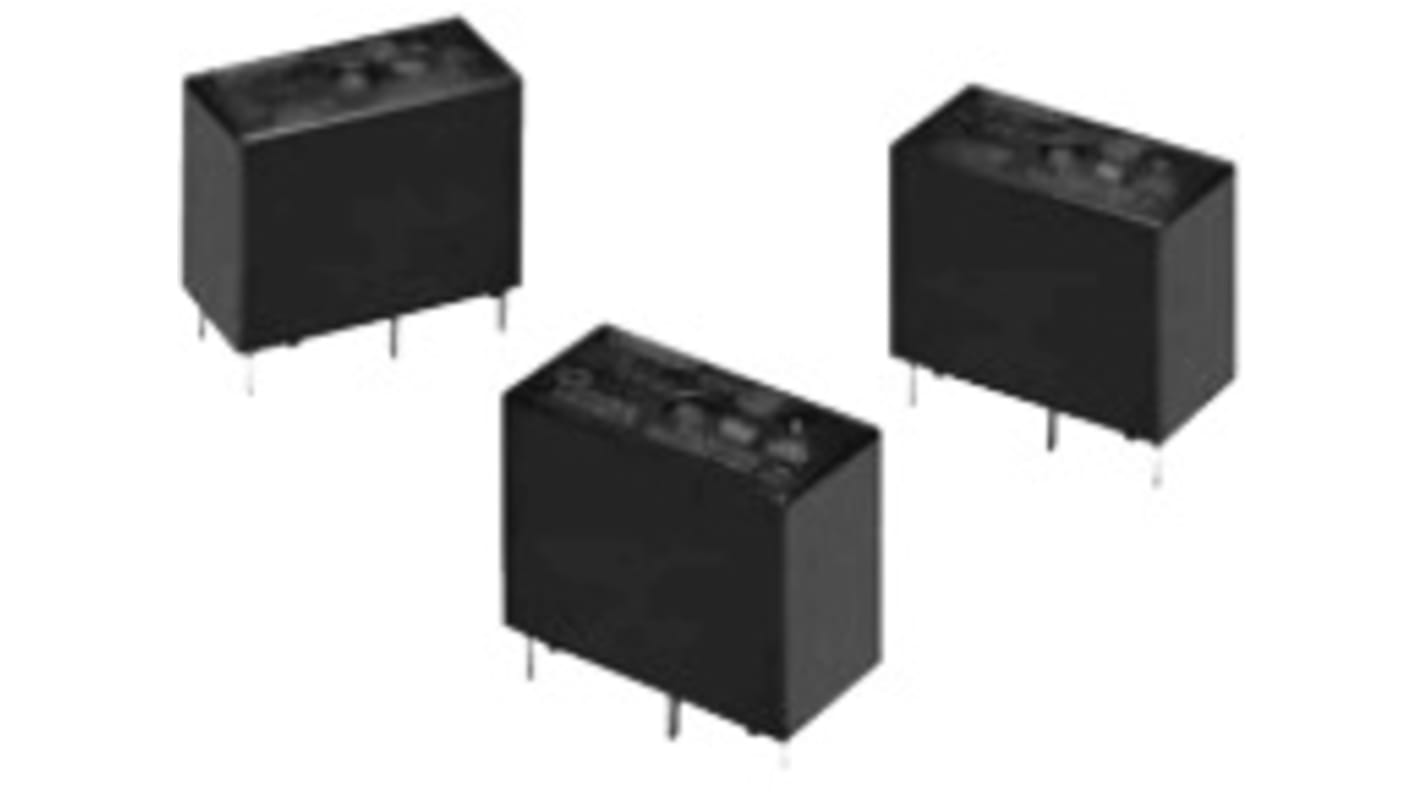

Omron PCB Relay, 24V dc Coil, 10A Switching Current, SPST
- RS Stock No.:
- 237-9890
- Mfr. Part No.:
- G5Q-1A-EU DC24 (TY)
- Brand:
- Omron
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 237-9890
- Mfr. Part No.:
- G5Q-1A-EU DC24 (TY)
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Relay | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | G5Q | |
| Terminal Type | Screw | |
| Switching Current | 10A | |
| Switching AC Voltage | 240V ac | |
| Switching DC Voltage | 60V dc | |
| Minimum Operating Temperature | -40°C | |
| Coil Resistance | 2.9kΩ | |
| Maximum Operating Temperature | 70°C | |
| Width | 10mm | |
| Standards/Approvals | RoHS | |
| Coil Power | 200mW | |
| Height | 15mm | |
| Length | 50mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Relay | ||
Coil Voltage 24V dc | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series G5Q | ||
Terminal Type Screw | ||
Switching Current 10A | ||
Switching AC Voltage 240V ac | ||
Switching DC Voltage 60V dc | ||
Minimum Operating Temperature -40°C | ||
Coil Resistance 2.9kΩ | ||
Maximum Operating Temperature 70°C | ||
Width 10mm | ||
Standards/Approvals RoHS | ||
Coil Power 200mW | ||
Height 15mm | ||
Length 50mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
The Omron Electronic Components G5Q series miniature power relay with 1-pole 10A switching capacity. It has excellent switching performance for a variety of loads. It is ideal for output applications of control equipment.
Small, yet provides 8-kV impulse withstand voltage
Low coil power consumption
Coil insulation system
IEC/EN 60335-1 conformed
