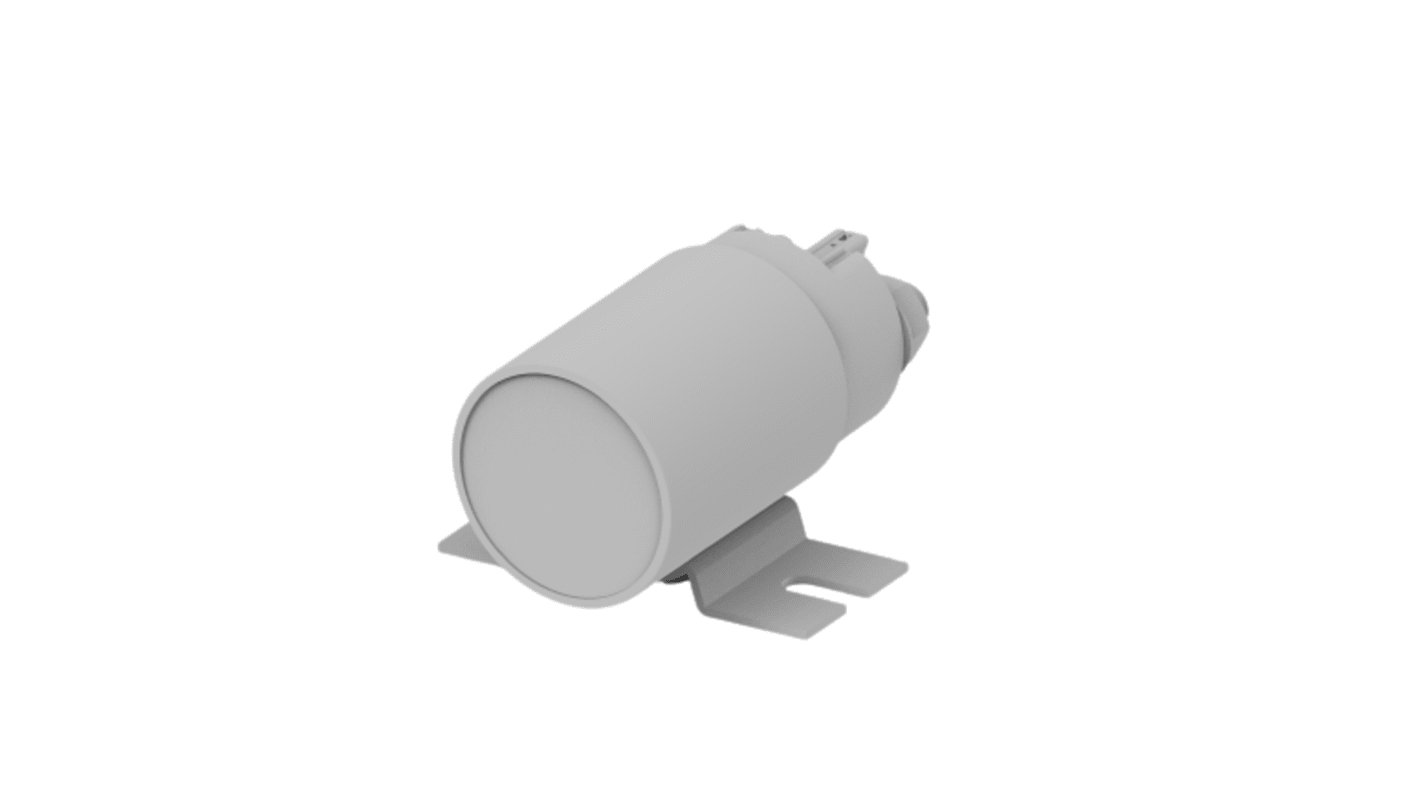

TE Connectivity Surface Relay, 24V dc Coil, 200A Switching Current, SPST
- RS Stock No.:
- 223-8124
- Mfr. Part No.:
- 29-312-12
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£146.54
(exc. VAT)
£175.85
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £146.54 |
*price indicative
- RS Stock No.:
- 223-8124
- Mfr. Part No.:
- 29-312-12
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Relay | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPST | |
| Mount Type | Surface | |
| Series | KISSLING 29 | |
| Terminal Type | Screw | |
| Switching Current | 200A | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 85°C | |
| Coil Resistance | 62Ω | |
| Width | 62mm | |
| Standards/Approvals | IEC 60529, RoHS | |
| Height | 98mm | |
| Coil Power | 12.8W | |
| Length | 135mm | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Relay | ||
Coil Voltage 24V dc | ||
Contact Configuration SPST | ||
Mount Type Surface | ||
Series KISSLING 29 | ||
Terminal Type Screw | ||
Switching Current 200A | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 85°C | ||
Coil Resistance 62Ω | ||
Width 62mm | ||
Standards/Approvals IEC 60529, RoHS | ||
Height 98mm | ||
Coil Power 12.8W | ||
Length 135mm | ||
Contact Material Silver Alloy | ||
- COO (Country of Origin):
- DE
The TE Connectivity single coil system relay features high shock and vibration resistance predominantly from its careful design and an optimized magnetic circuit. It belongs to kissling 29 series.
Sealed housing conforms to IP6K9K
Robust design
Minimized coil current
Variety of configuration options
6G shock and 4G vibration resistant
Main contact current rated for continuous current and 100% duty cycle
