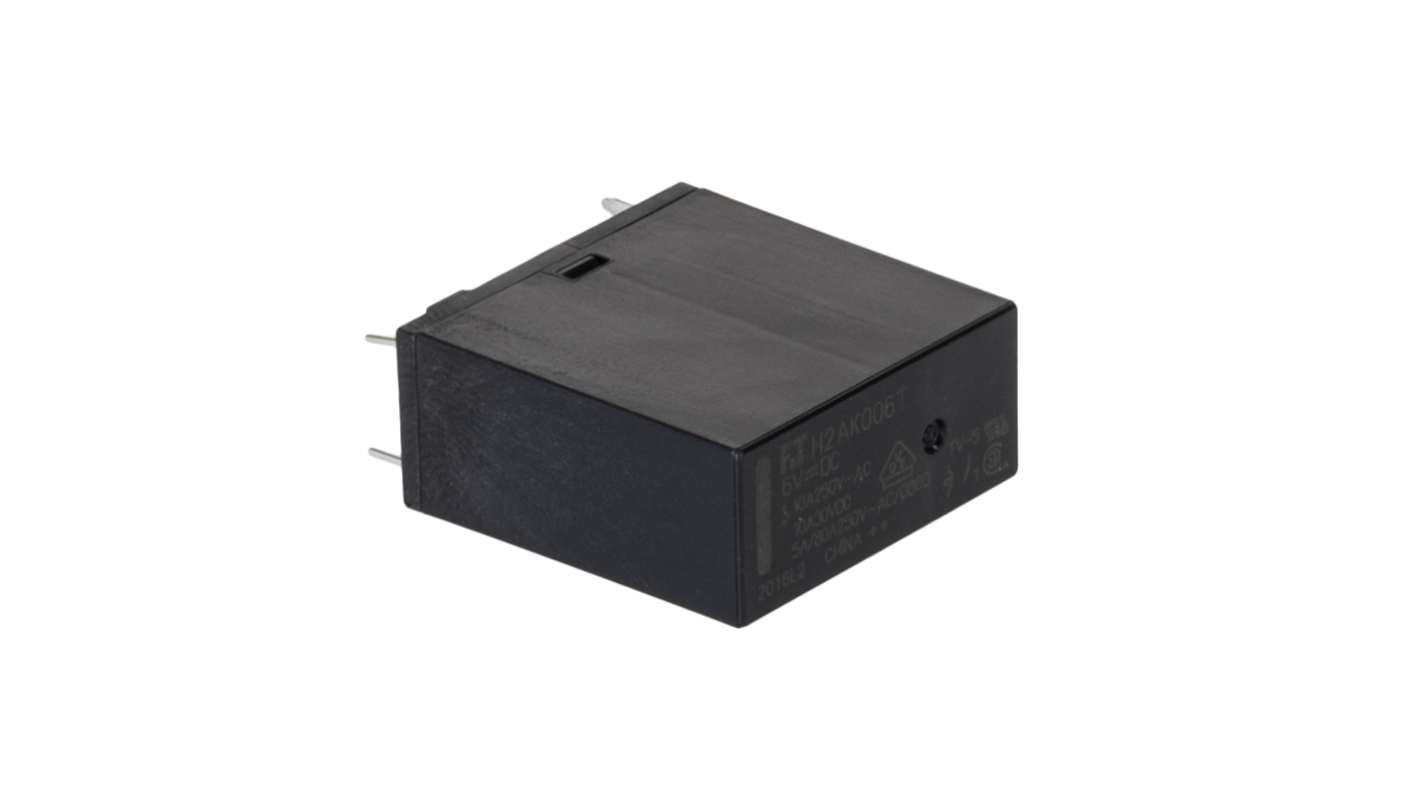

Fujitsu PCB Power Relay, 6V Coil, 10A Switching Current, 1 NO
- RS Stock No.:
- 195-8213
- Mfr. Part No.:
- FTR-H2AK006T
- Brand:
- Fujitsu
Temporarily out of stock
- RS Stock No.:
- 195-8213
- Mfr. Part No.:
- FTR-H2AK006T
- Brand:
- Fujitsu
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fujitsu | |
| Product Type | Power Relay | |
| Coil Voltage | 6V | |
| Contact Configuration | 1 NO | |
| Mount Type | PCB | |
| Series | FTR-H2 | |
| Terminal Type | PCB Pin | |
| Switching Current | 10A | |
| Switching AC Voltage | 300V ac | |
| Switching DC Voltage | 300V dc | |
| Minimum Operating Temperature | -40°C | |
| Switching Power | 300W | |
| Maximum Operating Temperature | 70°C | |
| Coil Resistance | 68Ω | |
| Standards/Approvals | RoHS | |
| Length | 24mm | |
| Height | 25mm | |
| Coil Power | 530mW | |
| Width | 11mm | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand Fujitsu | ||
Product Type Power Relay | ||
Coil Voltage 6V | ||
Contact Configuration 1 NO | ||
Mount Type PCB | ||
Series FTR-H2 | ||
Terminal Type PCB Pin | ||
Switching Current 10A | ||
Switching AC Voltage 300V ac | ||
Switching DC Voltage 300V dc | ||
Minimum Operating Temperature -40°C | ||
Switching Power 300W | ||
Maximum Operating Temperature 70°C | ||
Coil Resistance 68Ω | ||
Standards/Approvals RoHS | ||
Length 24mm | ||
Height 25mm | ||
Coil Power 530mW | ||
Width 11mm | ||
Contact Material Silver Alloy | ||
- COO (Country of Origin):
- CN
High density mounting
Saves space by 26% compared to FTR-H1 type
High insulation
Insulation distance: minimum 6mm between coil and contact
Dielectric strength: 4KV
Surge strength: 10KV
Cadmium free contact for eco-program
Flux proof relay, RT II
