WAGO Plug In Power Relay, 12V dc Coil, 6A Switching Current, SPDT

View all Power Relays

Subtotal (1 unit)*

£5.72

(exc. VAT)

£6.86

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship from another location
  • Plus 28 unit(s) shipping from 13 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£5.72

*price indicative

RS Stock No.:
180-3054
Mfr. Part No.:
857-150
Brand:
WAGO
Find similar products by selecting one or more attributes.
Select all

Brand

WAGO

Coil Voltage

12V dc

Contact Configuration

SPDT

Mounting Type

Plug In

Switching Current

6A

Number of Poles

1

Series

857

Terminal Type

PCB Pin

Maximum Switching Voltage AC

250V

Maximum Switching Voltage DC

30V dc

Maximum Switching Current AC

3 A

Maximum Switching Current DC

2 A

Length

5mm

Coil Power

1500W

Height

15mm

Maximum Operating Temperature

+85°C

Minimum Operating Temperature

-40°C

Depth

28mm

Life

50 x 10^3 cycles

Standards Met

EN 61810-1

Contact Material

Silver Alloy

Width

5mm

Maximum Switching Power AC

1.5 kVA

Dimensions

5 x 15 x 28mm

COO (Country of Origin):
DE

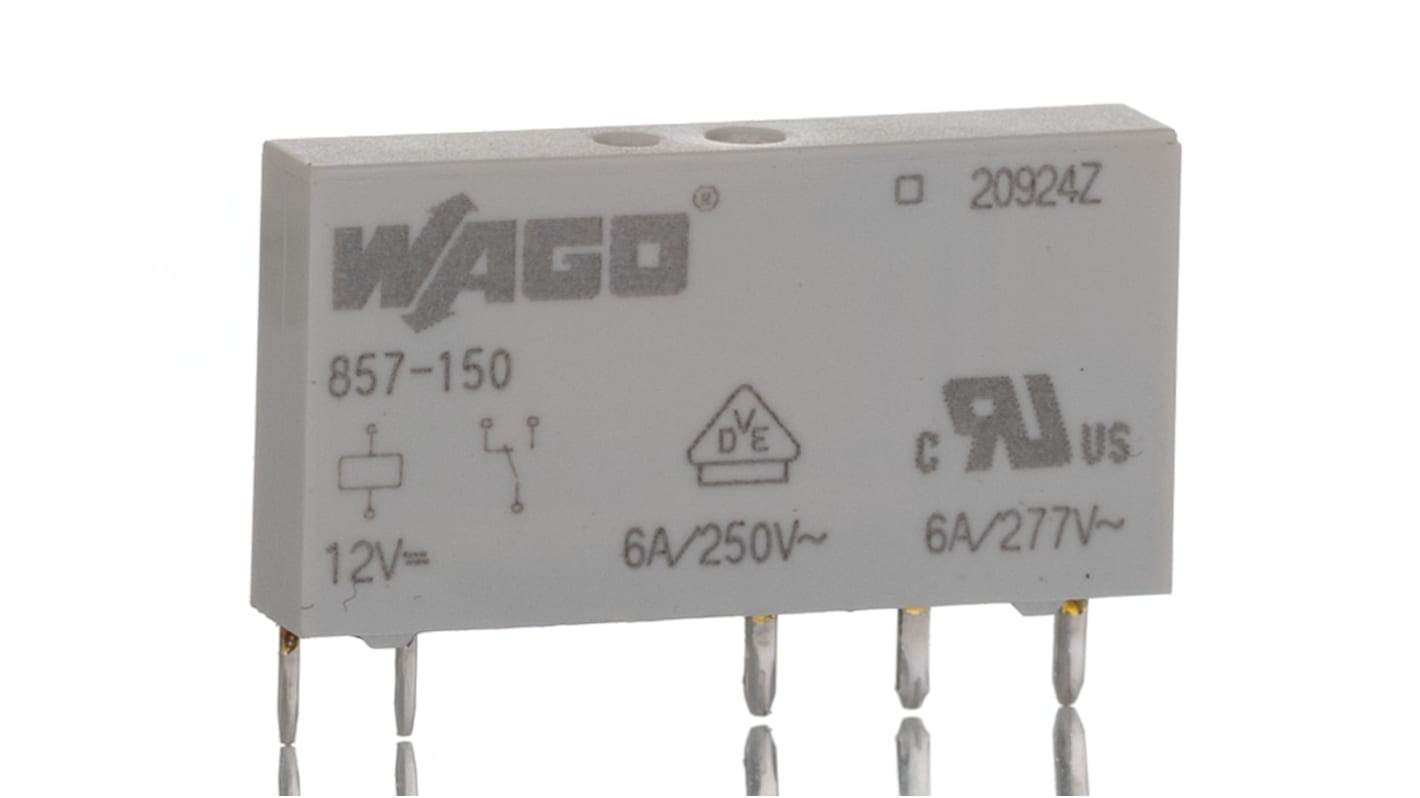

WAGO Series 857 Power Relay, SPDT Configuration, Silver Alloy Contact Material - 857-150


This power relay by WAGO is a pluggable miniature switching relay with a coil power of 1500W. It is designed to provide efficient and reliable switching capabilities for various applications in automation and electronics.

Features & Benefits


• Pluggable module for easy installation
• One changeover contact for versatile use
• Silver alloy contact material for enhanced conductivity
• Miniature relay design for compact spaces

Applications


• Ideal for controlling power circuits in automation systems
• Used for switching applications in electrical control panels
• Suitable for temperature-sensitive environments due to its high and low-temperature operation capabilities

Can it handle high switching power?


Yes, this power relay can efficiently handle a maximum switching power of 1.5 kVA.

Will it work in temperature extremes?


Yes, with an operating temperature range of -40 to +85 °C, this relay is suitable for a wide range of environments.

Is it easy to install?


Yes, with a plug-in mounting type, this relay can be easily installed on PCB pins for quick integration into systems.
