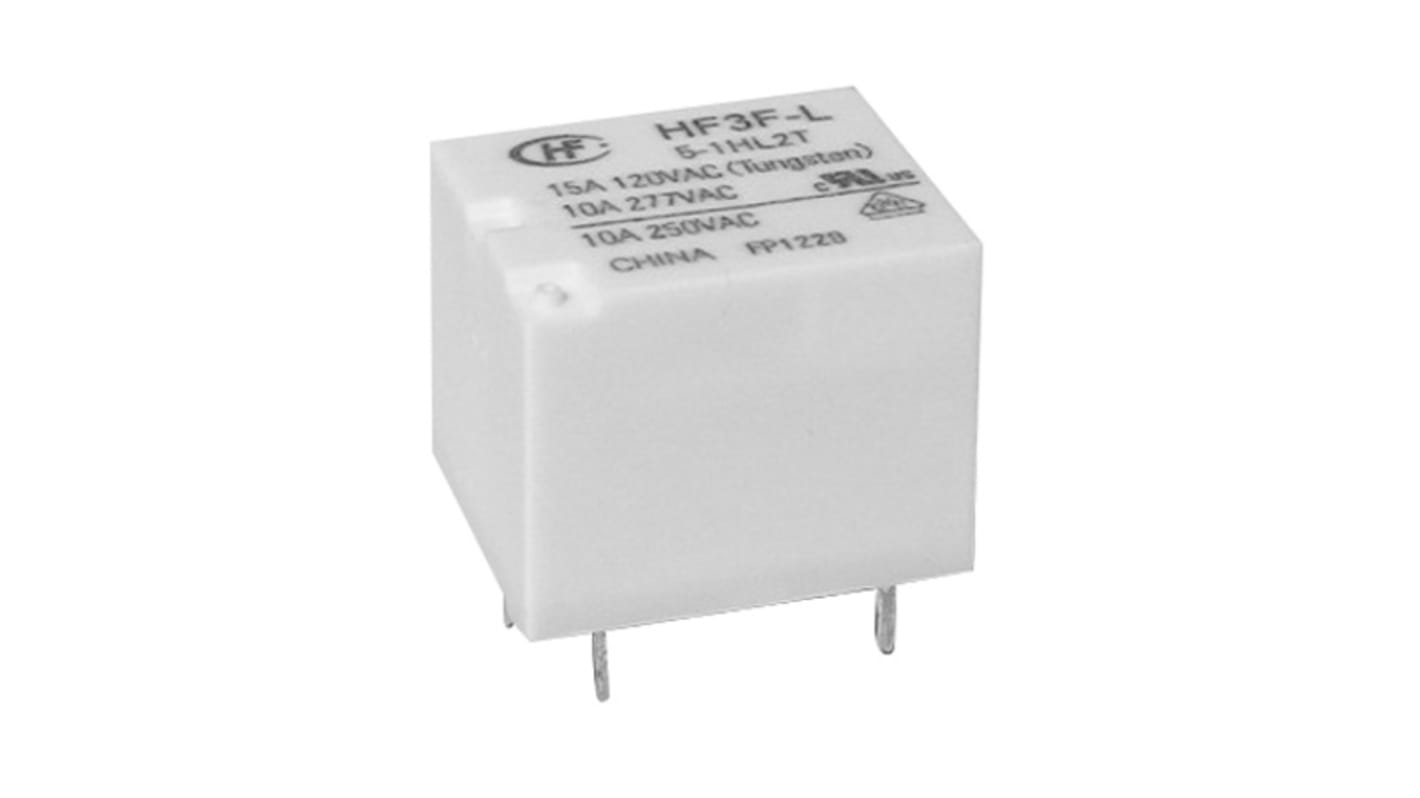

Hongfa Europe GMBH PCB Mount Latching Power Relay, 12V dc Coil, 10A Switching Current, SPDT

View all Power Relays

Subtotal (1 pack of 2 units)*

£5.52

(exc. VAT)

£6.62

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • 154 left, ready to ship
  • Plus 4 left, ready to ship from another location
  • Final 80 unit(s) shipping from 28 October 2025
Units
Per unit
Per Pack*
2 +£2.76£5.52

*price indicative

RS Stock No.:
176-2892
Mfr. Part No.:
HF3F-L/12-1ZL2T(610)
Brand:
Hongfa Europe GMBH
Find similar products by selecting one or more attributes.
Select all

Brand

Hongfa Europe GMBH

Coil Voltage

12V dc

Contact Configuration

SPDT

Mounting Type

PCB Mount

Switching Current

10A

Number of Poles

1

Latching

Yes

Terminal Type

PCB Pin

Maximum Switching Voltage AC

277V

Maximum Switching Voltage DC

30V dc

Maximum Switching Current AC

10 A

Maximum Switching Current DC

10 A

Length

19mm

Coil Resistance

360Ω

Coil Power

800mW

Maximum Operating Temperature

+80°C

Height

15.5mm

Life

1 x 10^7 cycles

Series

HF3F-L

Minimum Operating Temperature

-40°C

Isolation Coil To Contact

2kV ac

Depth

15.2mm

Standards Met

CQC File No:CQC15002121475, cULus File No:E134517, VDE File No:40040757

Contact Material

Silver Alloy

Maximum Switching Power DC

300 W

Maximum Switching Power AC

2.77 kVA

Dimensions

19 x 15.2 x 15.5mm

COO (Country of Origin):
CN

Hongfa SPDT Latching Relay


The Hongfa SPDT latching electromagnetic PCB mount relay is a subminiature high power latching relay. It is actuated with the help of a 12VDC coil and up to 10A DC/AC current through the coil for the relay to switch positions. It has a low mounting height of 15.5mm. This relay has silver alloy contacts. The contact arrangement used is 1 Form A type and has 2 coils latching. Forcibly guided contact is also used for guided protection.

Features and Benefits


• High power switching capacity up to 30W in case of DC
• Sensitive low coil power of 800mW
• Service temperature range between -40°C and 85°C
• Isolation voltage between coil and contact is 2KVAC
• Plastic sealed and flux proofed type

Applications


• Used as a control device
• Automotive industry
