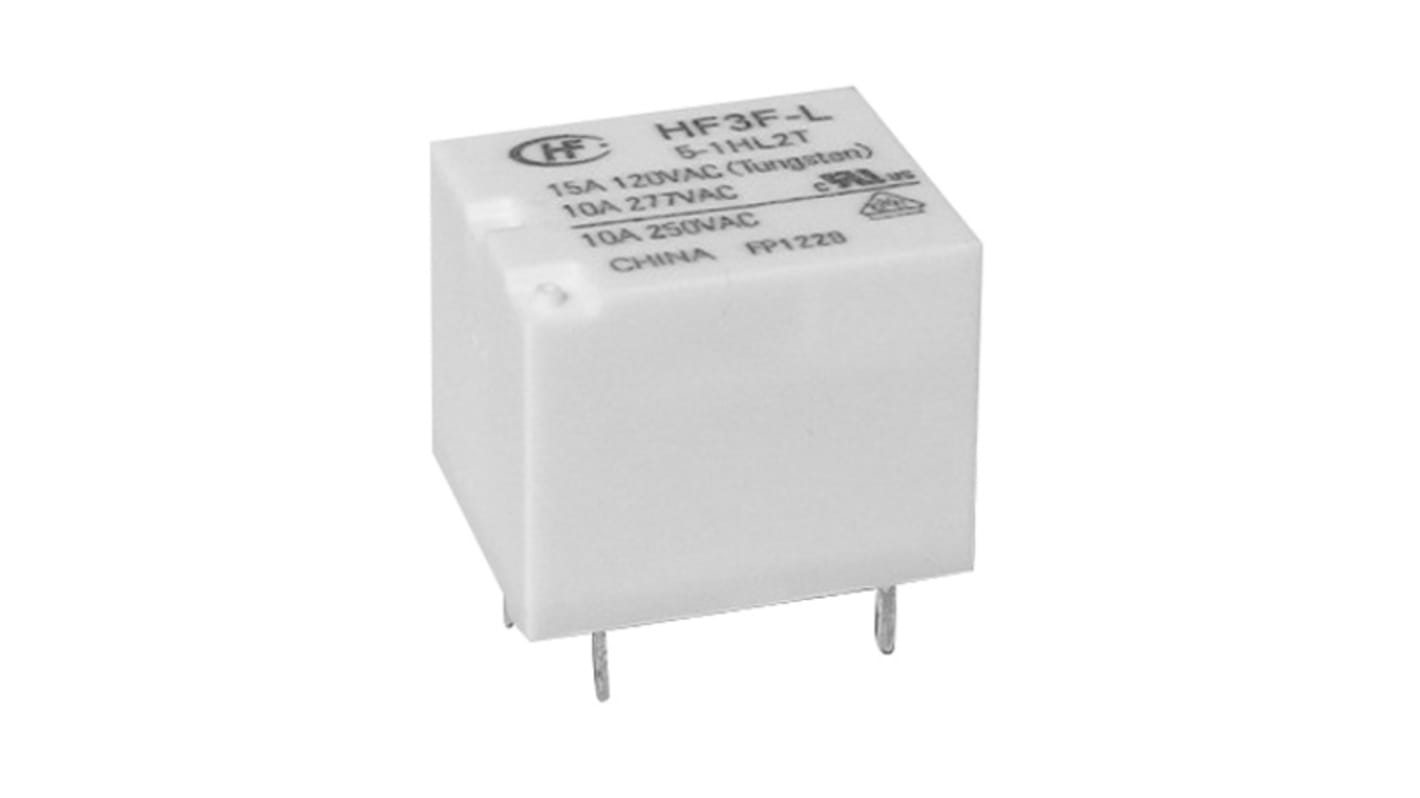

Hongfa Europe GMBH PCB Mount Latching Power Relay, 24V dc Coil, 10A Switching Current, SPDT

View all Power Relays

Subtotal (1 pack of 2 units)*

£5.11

(exc. VAT)

£6.132

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • 6 left, ready to ship
  • Final 236 unit(s) shipping from 28 October 2025
Units
Per unit
Per Pack*
2 +£2.555£5.11

*price indicative

RS Stock No.:
176-2925
Mfr. Part No.:
HF3F-L/24-1ZL1T(610)
Brand:
Hongfa Europe GMBH
Find similar products by selecting one or more attributes.
Select all

Brand

Hongfa Europe GMBH

Coil Voltage

24V dc

Contact Configuration

SPDT

Mounting Type

PCB Mount

Switching Current

10A

Number of Poles

1

Latching

Yes

Terminal Type

PCB Pin

Maximum Switching Voltage AC

277V

Maximum Switching Voltage DC

30V dc

Maximum Switching Current DC

10 A

Maximum Switching Current AC

10 A

Length

19mm

Coil Resistance

1440Ω

Coil Power

800mW

Height

15.5mm

Minimum Operating Temperature

-40°C

Series

HF3F-L

Standards Met

CQC File No:CQC15002121475, cULus File No:E134517, VDE File No:40040757

Life

1 x 10^7 cycles

Isolation Coil To Contact

2kV ac

Maximum Operating Temperature

+80°C

Depth

15.2mm

Contact Material

Silver Alloy

Maximum Switching Power DC

300 W

Maximum Switching Power AC

2.77 kVA

Dimensions

19 x 15.2 x 15.5mm

COO (Country of Origin):
CN
Subminiature high power latching relay
Low coil power
1 coil latching: approx. 0.4W
2 coils latching: approx. 0.8W
15A switching capability
1 Form A and 1 Form C configurations
Subminiature, standard PCB layout
Plastic sealed and flux proofed types available
Environmental friendly product
Outline Dimensions: (19.0 x 15.2 x 15.5) mm
