Hongfa Europe GMBH PCB Mount Power Relay, 24V dc Coil, 5A Switching Current, SPST
- RS Stock No.:
- 176-2814
- Mfr. Part No.:
- HF46F/024-HS1F(610)
- Brand:
- Hongfa Europe GMBH
70 In stock - FREE next working day delivery available
20 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 5)
£1.574
(exc. VAT)
£1.889
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 + | £1.574 | £7.87 |
| *price indicative | ||
- RS Stock No.:
- 176-2814
- Mfr. Part No.:
- HF46F/024-HS1F(610)
- Brand:
- Hongfa Europe GMBH
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

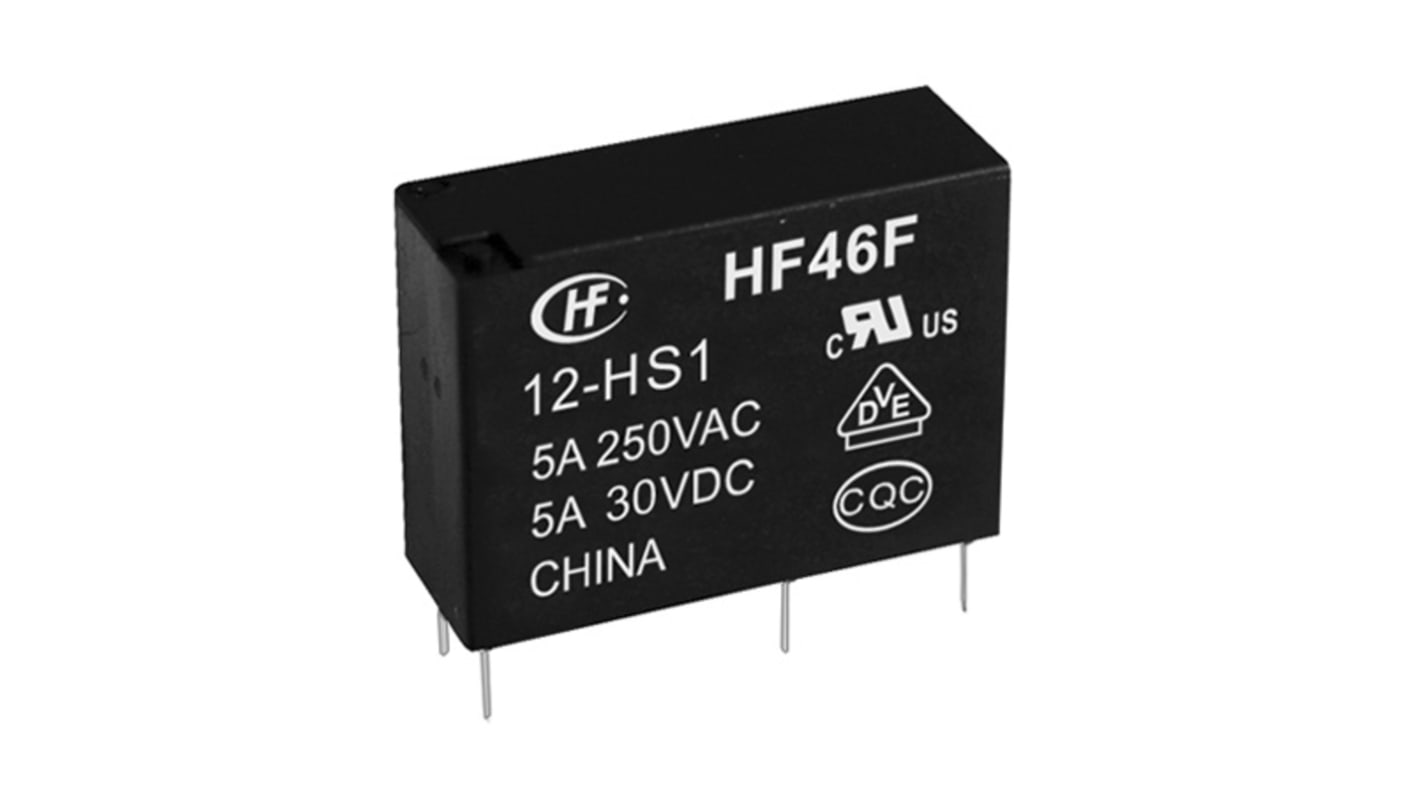

Hongfa SPNO Non-Latching Relay
The Hongfa SPNO non-latching PCB mount relay has a low mounting height of 15.3mm. It is actuated with the help of a 24VDC coil and up to 5A DC/AC current through the coil for the relay to switch positions. This relay is a subminiature intermediate power relay. It has silver alloy contacts.
Features and Benefits
• High power switching up to 200mW in case of DC
• Service temperature range of -40°C and 85°C
• Isolation between coil and contact is 10KV
• Durability up to 5 x 106 cycles
• Environmental friendly product
• Plastic sealed construction type
• Service temperature range of -40°C and 85°C
• Isolation between coil and contact is 10KV
• Durability up to 5 x 106 cycles
• Environmental friendly product
• Plastic sealed construction type
Applications
• Automotive engines
• Household appliances
• Industrial machinery
• Medical equipment
• Telecommunication equipment
• Household appliances
• Industrial machinery
• Medical equipment
• Telecommunication equipment
Certifications
• VDE 0631 reinforce insulation
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 24V dc |
| Contact Configuration | SPST |
| Mounting Type | PCB Mount |
| Switching Current | 5A |
| Number of Poles | 1 |
| Latching | No |
| Terminal Type | PCB Pin |
| Maximum Switching Voltage AC | 277V |
| Maximum Switching Voltage DC | 30V dc |
| Maximum Switching Current AC | 5 A |
| Maximum Switching Current DC | 5 A |
| Length | 20.5mm |
| Coil Resistance | 2880Ω |
| Coil Power | 200mW |
| Minimum Operating Temperature | -40°C |
| Series | HF46F |
| Height | 15.3mm |
| Contact Material | Silver Alloy |
| Isolation Coil To Contact | 10kV |
| Depth | 7mm |
| Maximum Operating Temperature | +85°C |
| Life | 5 x 10^6 cycles |
| Maximum Switching Power AC | 1.385 kVA |
| Maximum Switching Power DC | 150 W |
