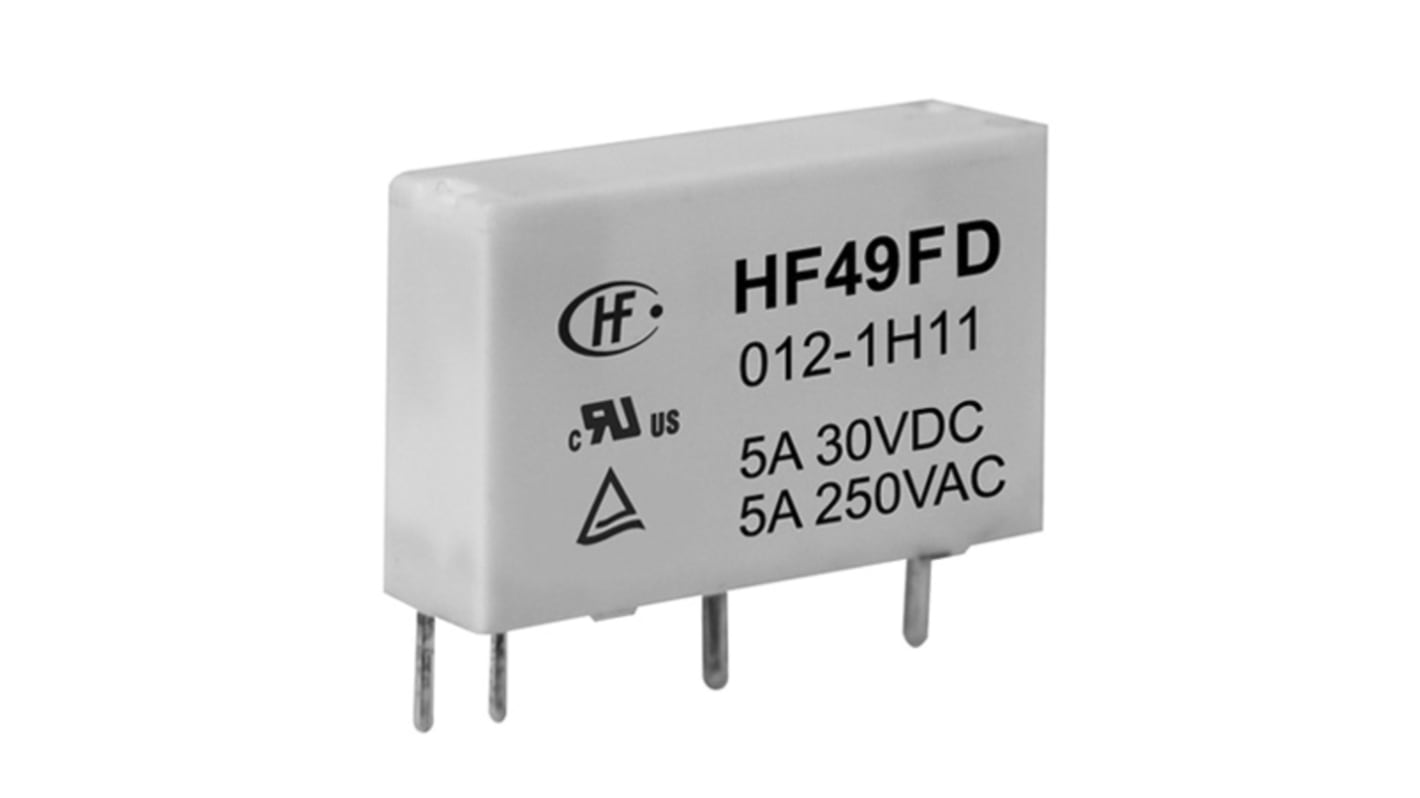

Hongfa Europe GMBH PCB Mount Power Relay, 12V dc Coil, 5A Switching Current, SPST

RS Stock No.:: 176-2890
Mfr. Part No.:: HF49FD/012-1H11TF
Brand:: Hongfa Europe GMBH

Hongfa Europe GMBH PCB Mount Power Relay, 12V dc Coil, 5A Switching Current, SPST

58 In stock - FREE next working day delivery available

34 available from Europe for delivery within 1 working day(s).

Added

Price Each (In a Pack of 2)

£2.24

(exc. VAT)

£2.69

(inc. VAT)

Units	Per unit	Per Pack*
2 +	£2.24	£4.48
*price indicative

RS Stock No.:: 176-2890
Mfr. Part No.:: HF49FD/012-1H11TF
Brand:: Hongfa Europe GMBH

Technical Reference

Datasheet

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

5A switching capability
3kV dielectric strength (between coil and contacts)
Slim size (width 5mm, height 12.5mm)
High sensitive: Min. 120mW

Creepage/clearance distance: Min. 3.5mm
Sockets available

Environmental friendly product
Outline Dimensions: (20.0 x 5.0 x 12.5) mm

Specifications

Attribute	Value
Coil Voltage	12V dc
Contact Configuration	SPST
Mounting Type	PCB Mount
Switching Current	5A
Number of Poles	1
Latching	No
Terminal Type	PCB Pin
Maximum Switching Voltage AC	250V
Maximum Switching Voltage DC	30V dc
Maximum Switching Current AC	5 A
Maximum Switching Current DC	5 A
Length	20mm
Coil Resistance	1200Ω
Coil Power	120mW
Life	2 x 10^7 cycles
Contact Material	Silver Alloy
Depth	5mm
Maximum Operating Temperature	+85°C
Height	12.5mm
Series	HF49FD
Isolation Coil To Contact	6kV
Minimum Operating Temperature	-40°C
Maximum Switching Power DC	150 W
Maximum Switching Power AC	1.25 kVA
