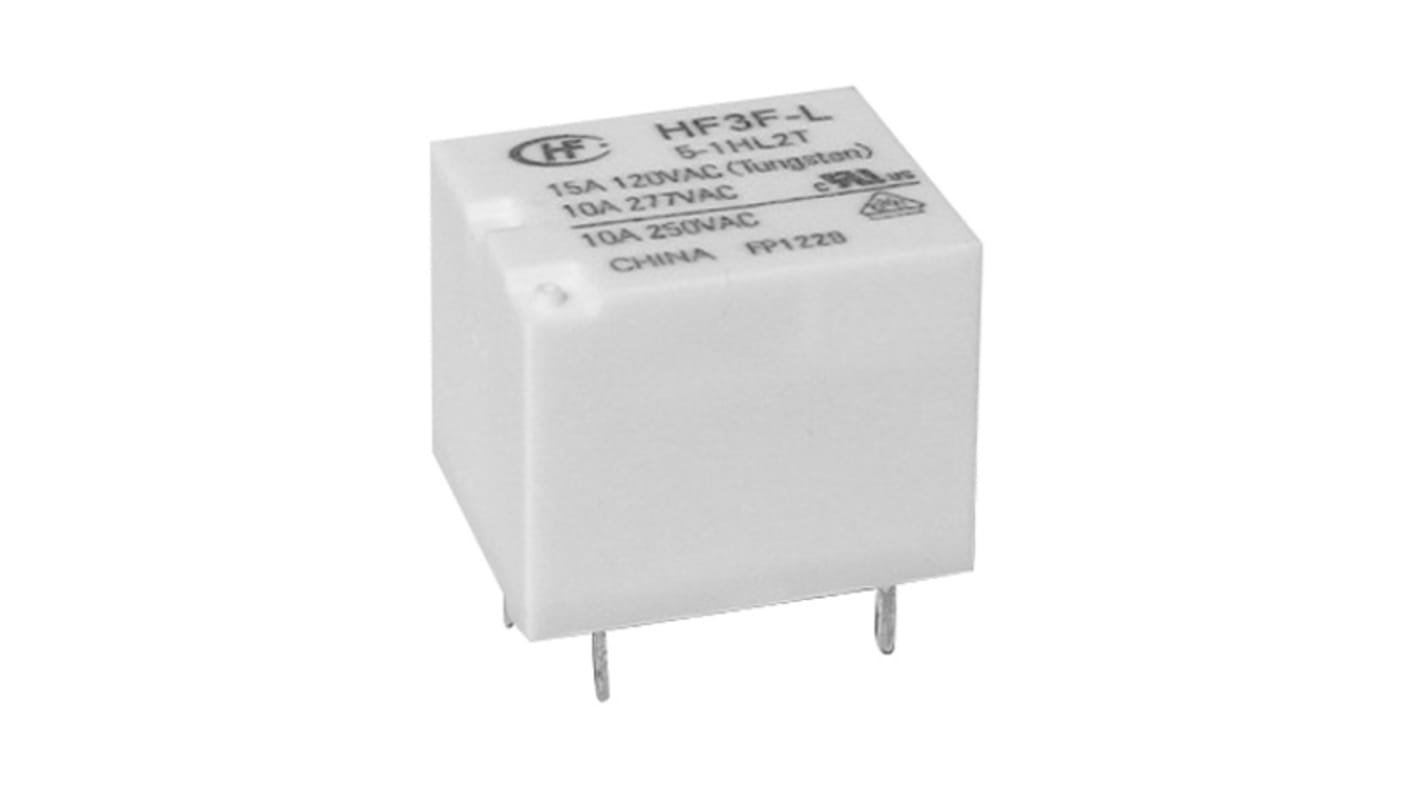

Hongfa Europe GMBH PCB Power Relay, 5V dc Coil, 15A, SPST
- RS Stock No.:
- 176-2802
- Mfr. Part No.:
- HF3F-L/5-1HL1T(610)
- Brand:
- Hongfa Europe GMBH
Subtotal (1 pack of 2 units)*
£3.22
(exc. VAT)
£3.86
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 130 unit(s) ready to ship
- Plus 24 unit(s) ready to ship from another location
- Plus 122 unit(s) shipping from 07 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 + | £1.61 | £3.22 |
*price indicative
- RS Stock No.:
- 176-2802
- Mfr. Part No.:
- HF3F-L/5-1HL1T(610)
- Brand:
- Hongfa Europe GMBH
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hongfa Europe GMBH | |
| Product Type | Power Relay | |
| Coil Voltage | 5V dc | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Switching Current | 15A | |
| Switching AC Voltage | 277V ac | |
| Switching DC Voltage | 30V dc | |
| Series | HF3F-L | |
| Switching Power | 2770VA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Length | 19mm | |
| Terminal Type | PCB Terminal | |
| Height | 15.5mm | |
| Standards/Approvals | RoHS | |
| Width | 15.2mm | |
| Contact Material | Silver Alloy | |
| Coil Power | 400mW | |
| Coil Resistance | 62.5Ω | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Hongfa Europe GMBH | ||
Product Type Power Relay | ||
Coil Voltage 5V dc | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Switching Current 15A | ||
Switching AC Voltage 277V ac | ||
Switching DC Voltage 30V dc | ||
Series HF3F-L | ||
Switching Power 2770VA | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Length 19mm | ||
Terminal Type PCB Terminal | ||
Height 15.5mm | ||
Standards/Approvals RoHS | ||
Width 15.2mm | ||
Contact Material Silver Alloy | ||
Coil Power 400mW | ||
Coil Resistance 62.5Ω | ||
Contact Resistance 100mΩ | ||
Subminiature high power latching relay
Low Coil power
1 Coil latching: approx. 0.4W
2 coils latching: approx. 0.8W
15A switching capability
1 Form A and 1 Form C configurations
Subminiature, standard PCB layout
Plastic sealed and flux proofed types available
Environmental friendly product
Outline Dimensions: (19.0 x 15.2 x 15.5) mm
