Hongfa Europe GMBH PCB Mount Power Relay, 12V dc Coil, 12A Switching Current, SPST

View all Power Relays

Subtotal (1 tube of 20 units)*

£30.06

(exc. VAT)

£36.08

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 640 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
20 +£1.503£30.06

*price indicative

RS Stock No.:
176-2740
Mfr. Part No.:
HF115FK/12-H3T(610)
Brand:
Hongfa Europe GMBH
Find similar products by selecting one or more attributes.
Select all

Brand

Hongfa Europe GMBH

Coil Voltage

12V dc

Contact Configuration

SPST

Mounting Type

PCB Mount

Switching Current

12 A, 16A

Number of Poles

1

Latching

No

Terminal Type

PCB Pin

Maximum Switching Voltage AC

400V

Maximum Switching Current AC

12 A, 16 A

Length

29mm

Coil Resistance

360Ω

Coil Power

400mW

Depth

12.7mm

Life

1 x 10^7 cycles

Isolation Coil To Contact

10kV

Maximum Operating Temperature

+85°C

Height

15.7mm

Minimum Operating Temperature

-40°C

Series

HF115FK

Contact Material

Silver Alloy

Maximum Switching Power AC

3 kVA, 4 kVA

COO (Country of Origin):
CN

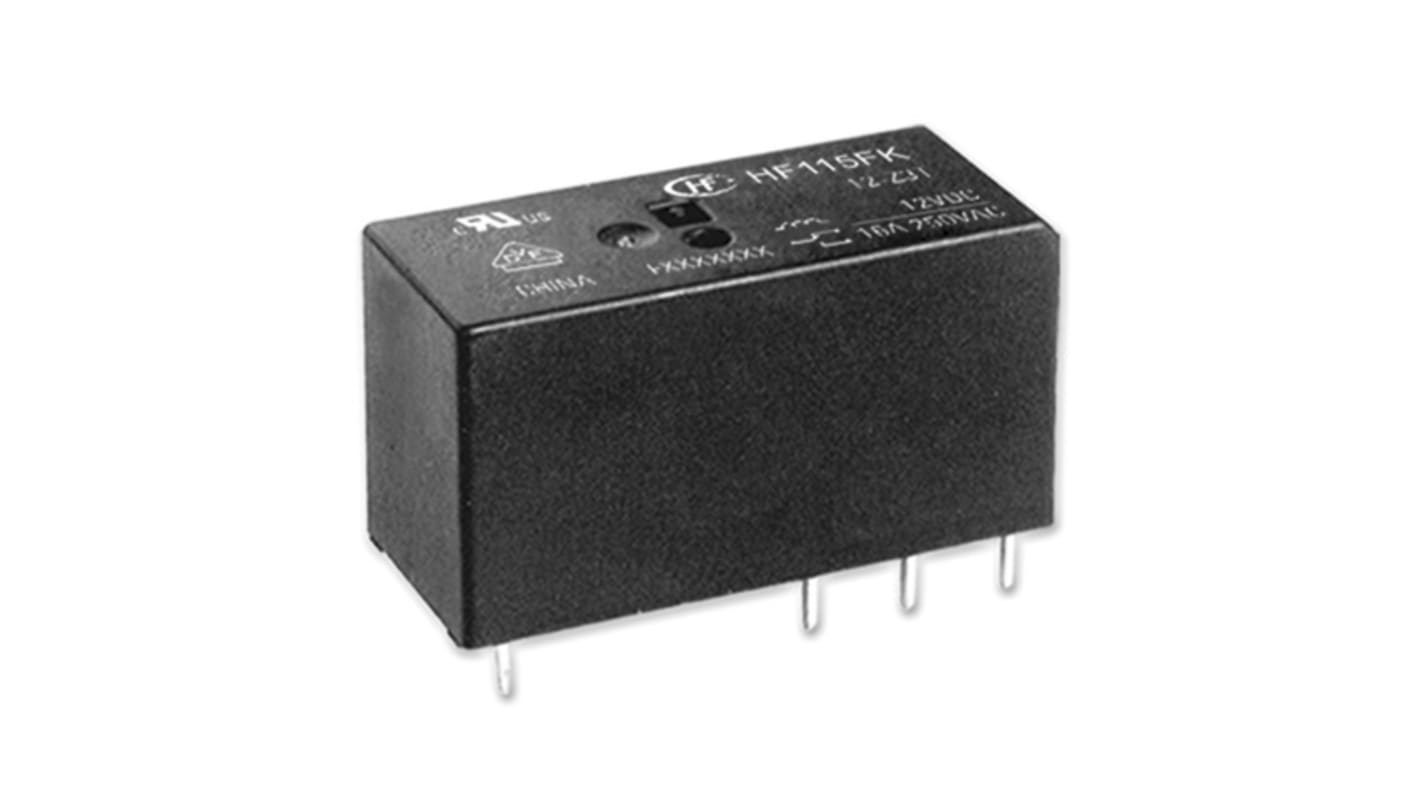

Hongfa SPNO Non-Latching Relay PCB Mount


The Hongfa SPNO non-latching electromagnetic 1-pole PCB mount relay is a miniature form power relay of intermediate category. It is actuated with the help of a 12VDC coil and up to 16A DC/AC current through the coil for the relay to switch positions. This relay has silver alloy contacts.

Features and Benefits


• High power switching up to 240W in case of DC
• Service temperature range between -40°C and 85°C
• Isolation voltage between coil and contact is 5KVAC
• Durable up to 10M cycles
• Flux proofed type
• Environmental friendly product

Applications


• Used as a control device
• Automotive industry
