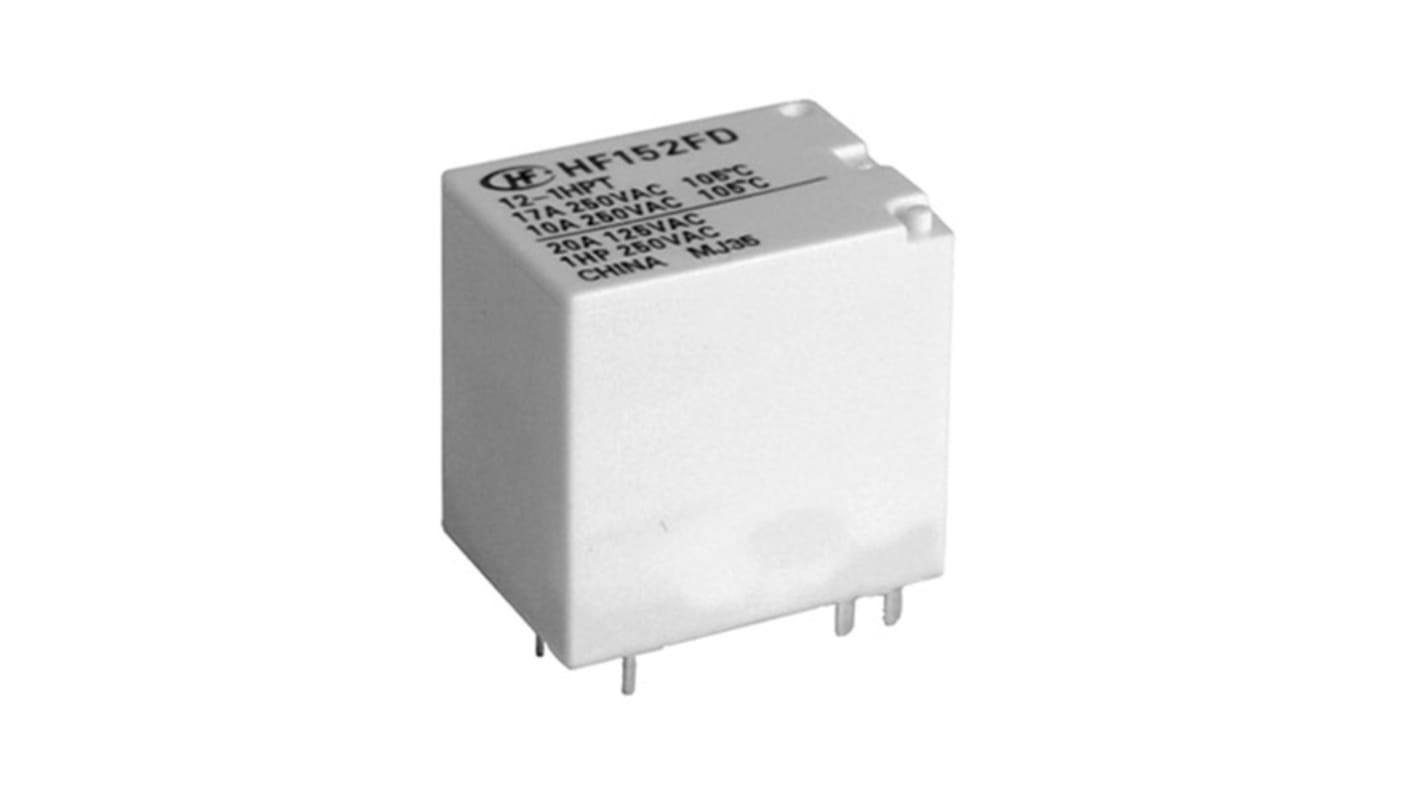

Hongfa Europe GMBH PCB Power Relay, 24V dc Coil, 20A Switching Current, SPST
- RS Stock No.:
- 176-2623
- Mfr. Part No.:
- HF152FD/24-1HTF(335)
- Brand:
- Hongfa Europe GMBH
Subtotal (1 tube of 50 units)*
£71.80
(exc. VAT)
£86.15
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 150 unit(s) shipping from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 50 + | £1.436 | £71.80 |
*price indicative
- RS Stock No.:
- 176-2623
- Mfr. Part No.:
- HF152FD/24-1HTF(335)
- Brand:
- Hongfa Europe GMBH
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hongfa Europe GMBH | |
| Coil Voltage | 24V dc | |
| Product Type | Power Relay | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | HF152FD | |
| Terminal Type | PCB Pin | |
| Switching Current | 20A | |
| Switching AC Voltage | 400V ac | |
| Switching Power | 4.7kVA | |
| Minimum Operating Temperature | -40°C | |
| Coil Resistance | 1.6kΩ | |
| Maximum Operating Temperature | 105°C | |
| Height | 20.6mm | |
| Length | 21.2mm | |
| Width | 16mm | |
| Standards/Approvals | RoHS | |
| Coil Power | 360mW | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Hongfa Europe GMBH | ||
Coil Voltage 24V dc | ||
Product Type Power Relay | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series HF152FD | ||
Terminal Type PCB Pin | ||
Switching Current 20A | ||
Switching AC Voltage 400V ac | ||
Switching Power 4.7kVA | ||
Minimum Operating Temperature -40°C | ||
Coil Resistance 1.6kΩ | ||
Maximum Operating Temperature 105°C | ||
Height 20.6mm | ||
Length 21.2mm | ||
Width 16mm | ||
Standards/Approvals RoHS | ||
Coil Power 360mW | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
- COO (Country of Origin):
- CN
Hongfa SPNO Non-Latching Relay
The Hongfa SPNO 1-pole non-latching PCB mount relay is actuated with the help of a 24VDC coil and up to 20A DC/AC current through the coil to switch position. This relay is a subminiature high power type relay. It can be used in single coil winding configuration. This relay has silver alloy contact for high electrical endurance.
Features and Benefits
• Environmental friendly product
• Isolation voltage between the coil and contacts is 2.5KVAC
• Service temperature range between -40°C and 105°C
• High mechanical endurance and life expectancy of 10M cycles
• Resistant to vibration and abrasion
• Low power consumption
• Offers excellent board space saving
Applications
• Used as a control device
• Automotive industry
• Household appliances
• Industrial machinery
• Telecommunication
