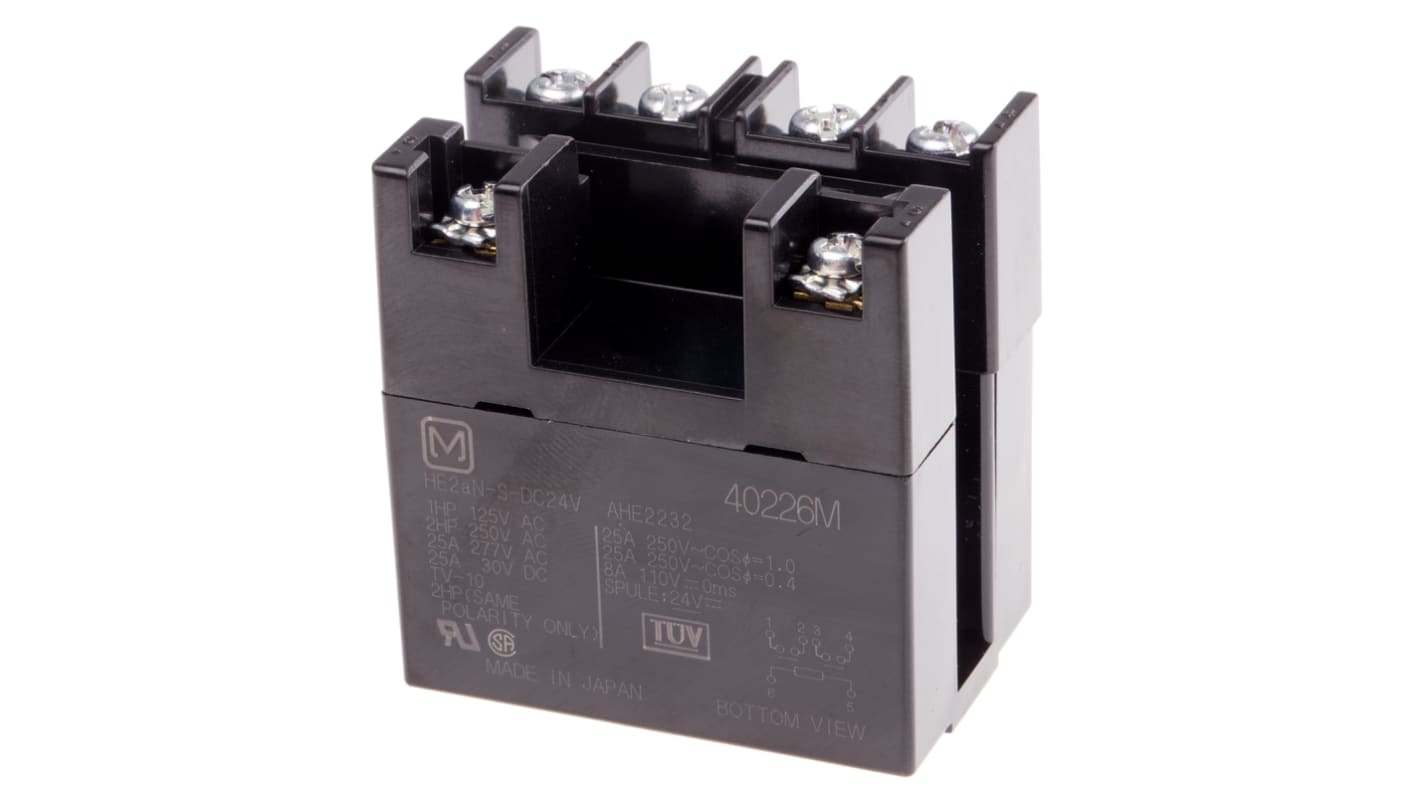

Panasonic PCB Power Relay, 24V dc Coil, 30A Switching Current, DPST
- RS Stock No.:
- 173-8868
- Mfr. Part No.:
- HE2AN-S-DC24V
- Brand:
- Panasonic
Subtotal (1 box of 20 units)*
£457.00
(exc. VAT)
£548.40
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 40 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 20 + | £22.85 | £457.00 |
*price indicative
- RS Stock No.:
- 173-8868
- Mfr. Part No.:
- HE2AN-S-DC24V
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Coil Voltage | 24V dc | |
| Product Type | Power Relay | |
| Contact Configuration | DPST | |
| Mount Type | PCB | |
| Series | HE | |
| Terminal Type | Screw | |
| Switching Current | 30A | |
| Switching Power | 6.9kVA | |
| Switching DC Voltage | 30V dc | |
| Minimum Operating Temperature | -50°C | |
| Switching AC Voltage | 30V ac | |
| Coil Resistance | 300Ω | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | CSA, UL, VDE, TUV, RoHS | |
| Coil Power | 1.92W | |
| Height | 44.5mm | |
| Width | 16.5mm | |
| Length | 50mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Coil Voltage 24V dc | ||
Product Type Power Relay | ||
Contact Configuration DPST | ||
Mount Type PCB | ||
Series HE | ||
Terminal Type Screw | ||
Switching Current 30A | ||
Switching Power 6.9kVA | ||
Switching DC Voltage 30V dc | ||
Minimum Operating Temperature -50°C | ||
Switching AC Voltage 30V ac | ||
Coil Resistance 300Ω | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals CSA, UL, VDE, TUV, RoHS | ||
Coil Power 1.92W | ||
Height 44.5mm | ||
Width 16.5mm | ||
Length 50mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
- COO (Country of Origin):
- JP
HE Series
These PCB mount power relays have a high capacity and long life and offer excellent surge resistance. Typical applications for these PCB power relays include office equipment, industrial equipment and home appliances.
High capacity and long life
Single side stable type
Surge voltage more than 10,000V
Excellent resistance to contact welding due to the pre-tension and kick-off mechanism
Typical applications: Machine tools, Moulding equipment, Air conditioners, Heating equipment
Approvals
Ul; SCA; VDE; TUV
