- RS Stock No.:
- 168-0672
- Mfr. Part No.:
- 8-1419111-3
- Brand:
- TE Connectivity
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Price 1 Tube of 25
£208.00
(exc. VAT)
£249.60
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 1 | £208.00 | £8.32 |
2 - 3 | £202.22 | £8.089 |
4 - 7 | £196.76 | £7.87 |
8 + | £191.58 | £7.663 |
*price indicative
- RS Stock No.:
- 168-0672
- Mfr. Part No.:
- 8-1419111-3
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details

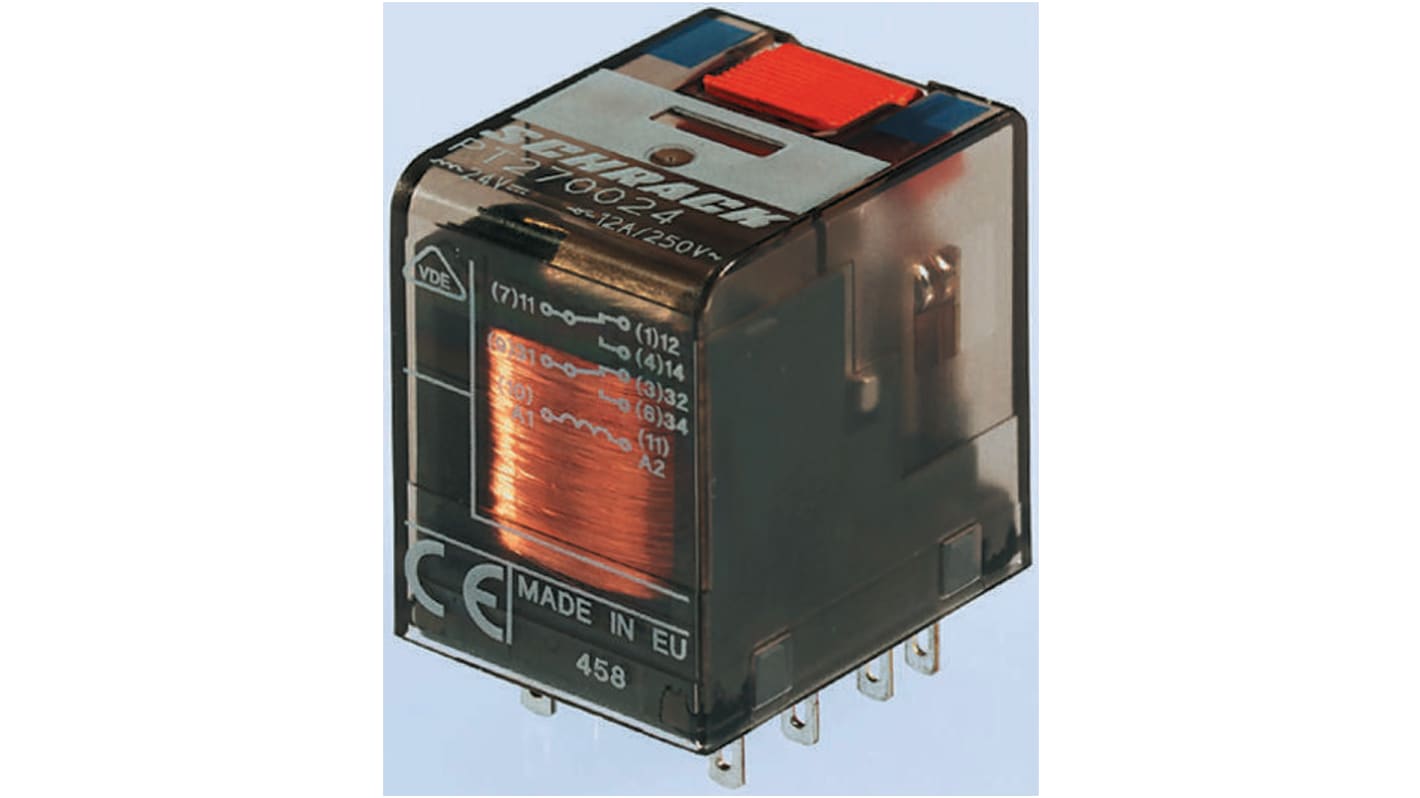

PT Series With Mechanical Indicator
Cadmium-free contacts
LED and mechanical indicator
Manual/ lockable test facility
Contact material: AgNi or Gold Plated
Mechanical life: AC; 2 x 107, DC; 3 x 107 or DC; 30 x 10⒍
Isolation coil to contact: 2.5kV(ac)
Dimensions: W22.5 x D28 x H29mm
LED and mechanical indicator
Manual/ lockable test facility
Contact material: AgNi or Gold Plated
Mechanical life: AC; 2 x 107, DC; 3 x 107 or DC; 30 x 10⒍
Isolation coil to contact: 2.5kV(ac)
Dimensions: W22.5 x D28 x H29mm
or DC; 30 x 10
Specifications
Attribute | Value |
---|---|
Coil Voltage | 110V dc |
Contact Configuration | 4PDT |
Mounting Type | Plug In |
Switching Current | 6A |
Number of Poles | 4 |
Latching | No |
Terminal Type | Plug In |
Maximum Switching Voltage AC | 240V |
Length | 28mm |
Coil Resistance | 16133Ω |
Coil Power | 750mW |
Minimum Operating Temperature | -40°C |
Standards Met | CULus, LR, VDE |
Contact Material | Silver Alloy |
Depth | 22.5mm |
Life | 100000 (Electrical) Operations, 30000000 (Mechanical) Operations |
Height | 29mm |
Isolation Coil To Contact | 2.5kVrms |
Maximum Operating Temperature | +70°C |
Maximum Switching Power AC | 1.5 kVA |
Application | Automation Control |
