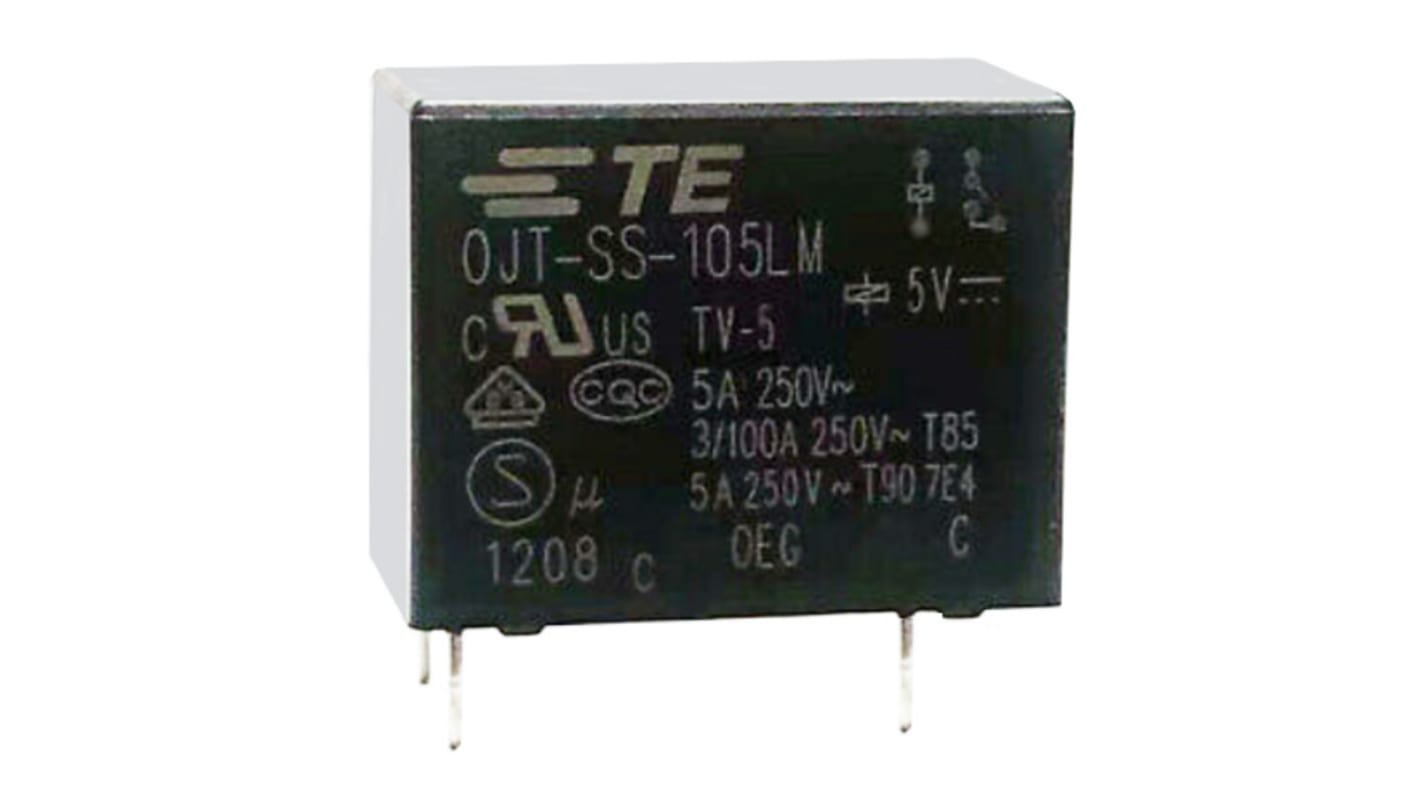

TE Connectivity PCB Mount Power Relay, 5V dc Coil, 5A Switching Current, SPST
- RS Stock No.:
- 161-4732
- Mfr. Part No.:
- OJT-SS-105LM,000
- Brand:
- TE Connectivity
Subtotal (1 bag of 100 units)*
£128.60
(exc. VAT)
£154.30
(inc. VAT)
FREE delivery for orders over £50.00
- 700 unit(s) ready to ship
Units | Per unit | Per Bag* |
|---|---|---|
| 100 - 400 | £1.286 | £128.60 |
| 500 - 900 | £1.25 | £125.00 |
| 1000 + | £1.216 | £121.60 |
*price indicative
- RS Stock No.:
- 161-4732
- Mfr. Part No.:
- OJT-SS-105LM,000
- Brand:
- TE Connectivity
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 5V dc | |
| Contact Configuration | SPST | |
| Mounting Type | PCB Mount | |
| Switching Current | 5A | |
| Number of Poles | 1 | |
| Latching | No | |
| Series | OJ | |
| Maximum Switching Voltage AC | 250V | |
| Length | 18.2mm | |
| Coil Resistance | 100Ω | |
| Coil Power | 200mW | |
| Isolation Coil To Contact | 4kVrms | |
| Contact Material | Silver Alloy | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +85°C | |
| Height | 14.7mm | |
| Depth | 10.2mm | |
| Standards Met | CQC08001025528, TUV R 50139166, UL E82292, UL TV-5, VDE 40007630 | |
| Life | 100000 (Electrical) operations, 5000000 (Mechanical) operations | |
| Application | Appliances, Consumer Electronics, Industrial Control | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 5V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 5A | ||
Number of Poles 1 | ||
Latching No | ||
Series OJ | ||
Maximum Switching Voltage AC 250V | ||
Length 18.2mm | ||
Coil Resistance 100Ω | ||
Coil Power 200mW | ||
Isolation Coil To Contact 4kVrms | ||
Contact Material Silver Alloy | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +85°C | ||
Height 14.7mm | ||
Depth 10.2mm | ||
Standards Met CQC08001025528, TUV R 50139166, UL E82292, UL TV-5, VDE 40007630 | ||
Life 100000 (Electrical) operations, 5000000 (Mechanical) operations | ||
Application Appliances, Consumer Electronics, Industrial Control | ||
- COO (Country of Origin):
- CN
OJ / OJE Series
Switching Voltage; 250Vac
Contact Material; Ag Alloy
Dimensions; 14.6x18.2x10.2 mm
