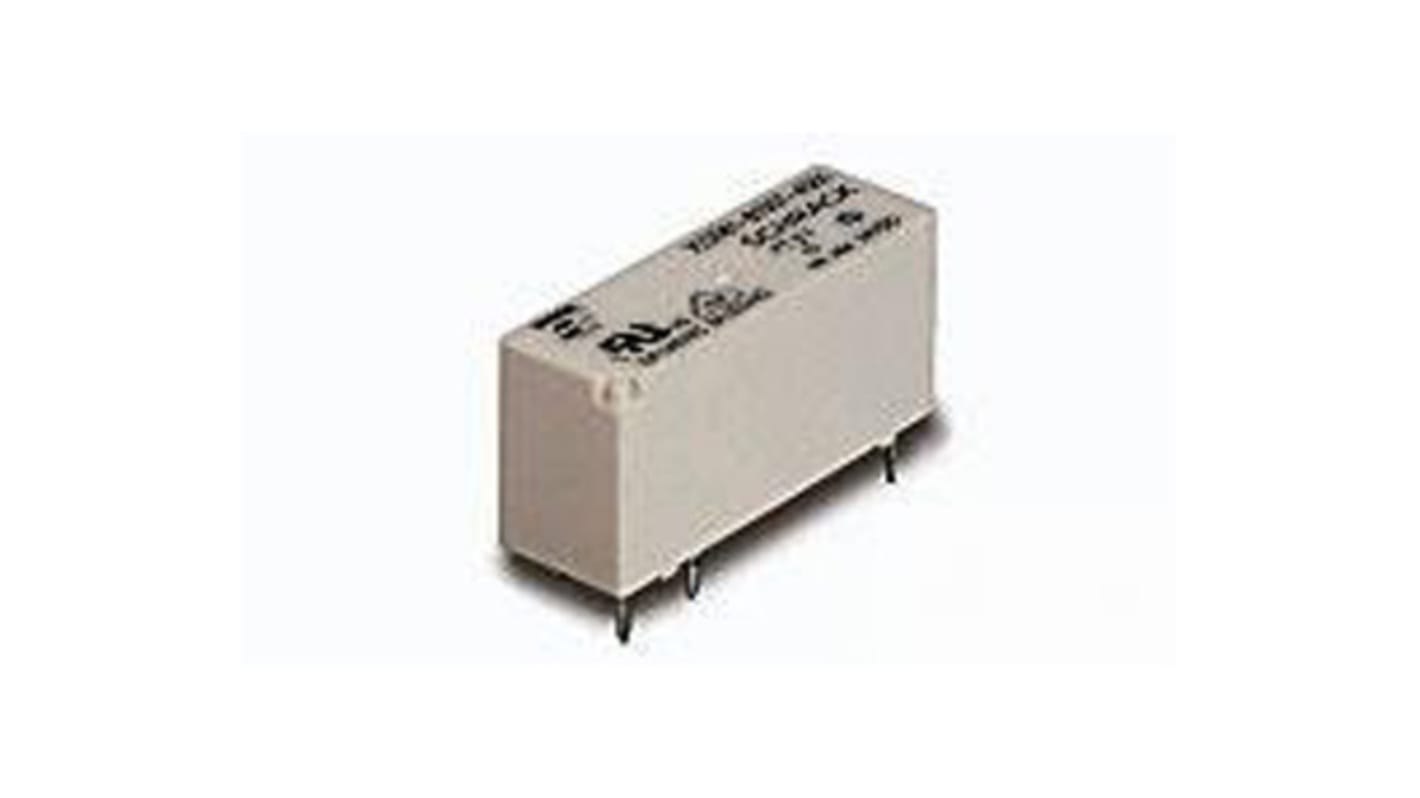

TE Connectivity PCB Mount Power Relay, 5V dc Coil, 8A Switching Current, SPST
- RS Stock No.:
- 161-4139
- Mfr. Part No.:
- V23061A1002A302
- Brand:
- TE Connectivity
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 161-4139
- Mfr. Part No.:
- V23061A1002A302
- Brand:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 5V dc | |
| Contact Configuration | SPST | |
| Mounting Type | PCB Mount | |
| Switching Current | 8A | |
| Number of Poles | 1 | |
| Latching | No | |
| Terminal Type | Through Hole | |
| Maximum Switching Voltage AC | 400V | |
| Length | 28.6mm | |
| Coil Resistance | 118Ω | |
| Coil Power | 212mW | |
| Life | 10000000 (Mechanical) operations | |
| Maximum Operating Temperature | +85°C | |
| Contact Material | Silver Alloy | |
| Standards Met | UL E214025, VDE Cert. No. 40017849 | |
| Minimum Operating Temperature | -40°C | |
| Isolation Coil To Contact | 4kVrms | |
| Height | 15mm | |
| Depth | 10mm | |
| Series | MSR | |
| Application | Domestic Appliances, Hi-Fi Products, Interface Technology, PLCs, Power Supplies, Timers, TV/Monitor Control | |
