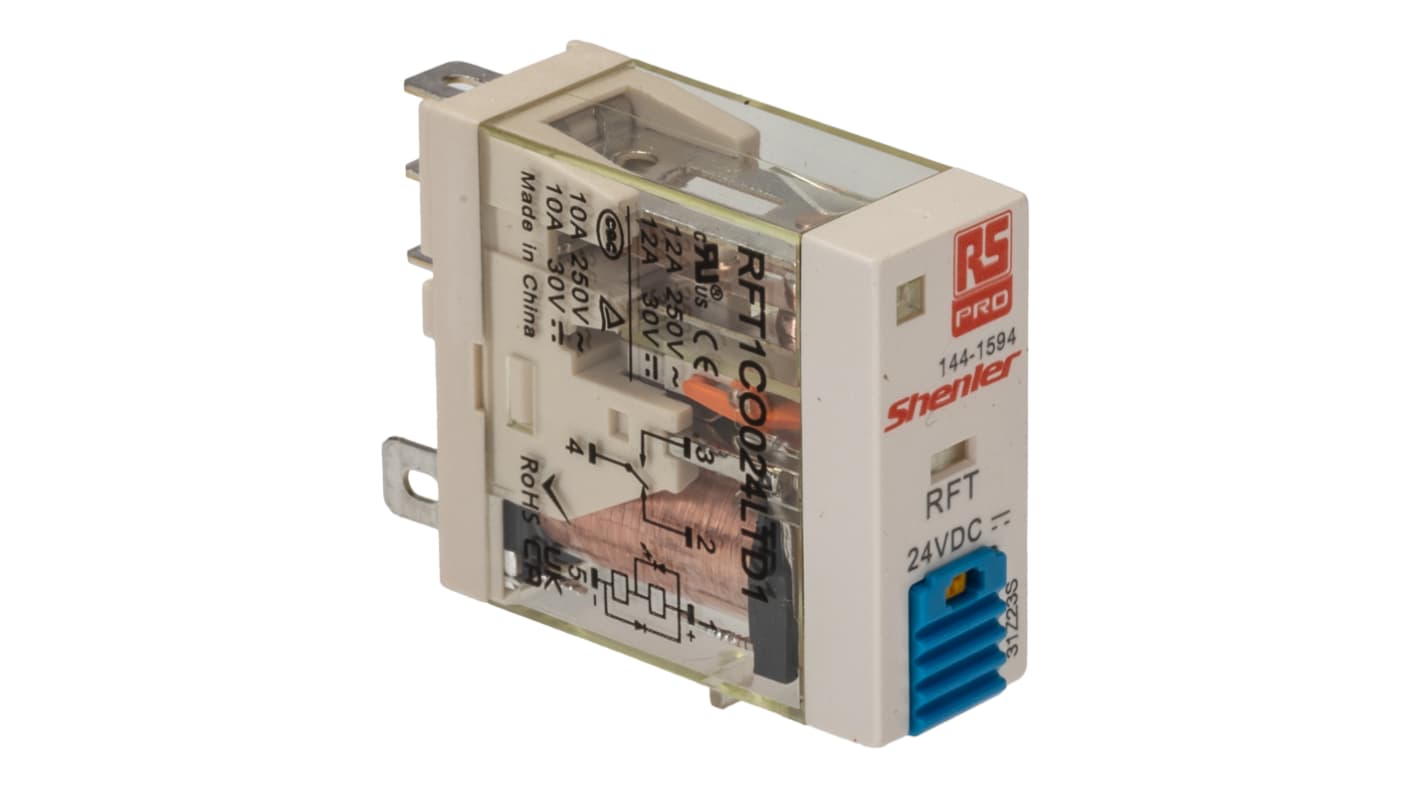

RS PRO Plug In Power Relay, 24V dc Coil, 10A Switching Current, SPDT
- RS Stock No.:
- 144-1594
- Distrelec Article No.:
- 304-03-947
- Brand:
- RS PRO
Subtotal (1 unit)*
£7.78
(exc. VAT)
£9.34
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 379 unit(s) ready to ship
- Plus 37 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £7.78 |
*price indicative
- RS Stock No.:
- 144-1594
- Distrelec Article No.:
- 304-03-947
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | Plug In | |
| Switching Current | 10 A, 12A | |
| Number of Poles | 1 | |
| Series | RFT | |
| Latching | No | |
| Terminal Type | PCB Pin | |
| Maximum Switching Voltage AC | 250V | |
| Maximum Switching Voltage DC | 30V dc | |
| Maximum Switching Current DC | 12 A | |
| Maximum Switching Current AC | 10 A | |
| Length | 29mm | |
| Coil Resistance | 1100Ω | |
| Coil Power | 530mW | |
| Life | 10000000 cycles | |
| Maximum Operating Temperature | +55°C | |
| Standards Met | CE:CQC, CULus | |
| Depth | 12.6mm | |
| Height | 28mm | |
| Minimum Operating Temperature | -40°C | |
| Isolation Coil To Contact | 5kV ac | |
| Contact Material | Silver Alloy | |
| Maximum Switching Power AC | 1VA | |
| Maximum Switching Power DC | 0.53 W | |
| Application | Interface | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Coil Voltage 24V dc | ||
Contact Configuration SPDT | ||
Mounting Type Plug In | ||
Switching Current 10 A, 12A | ||
Number of Poles 1 | ||
Series RFT | ||
Latching No | ||
Terminal Type PCB Pin | ||
Maximum Switching Voltage AC 250V | ||
Maximum Switching Voltage DC 30V dc | ||
Maximum Switching Current DC 12 A | ||
Maximum Switching Current AC 10 A | ||
Length 29mm | ||
Coil Resistance 1100Ω | ||
Coil Power 530mW | ||
Life 10000000 cycles | ||
Maximum Operating Temperature +55°C | ||
Standards Met CE:CQC, CULus | ||
Depth 12.6mm | ||
Height 28mm | ||
Minimum Operating Temperature -40°C | ||
Isolation Coil To Contact 5kV ac | ||
Contact Material Silver Alloy | ||
Maximum Switching Power AC 1VA | ||
Maximum Switching Power DC 0.53 W | ||
Application Interface | ||
- COO (Country of Origin):
- CN
RS Pro RFT Series SPCO Relays
RS Pro RFT series single pole miniature interface realys with LED indicator can be used to increase the functions in electrical enclosures, useful for industrial applications, machine building and HVAC.
Features and Benefits
Single Pole 10A plug-in interface relays
LED indicator
Gold plated contacts
Bases for assembly on DIN Rail to be ordered separately
1 pole 12A, 2 pole 8A
Slim and compact size
High-capacity and high reliability
Slim and compact size
High-capacity and high reliability
