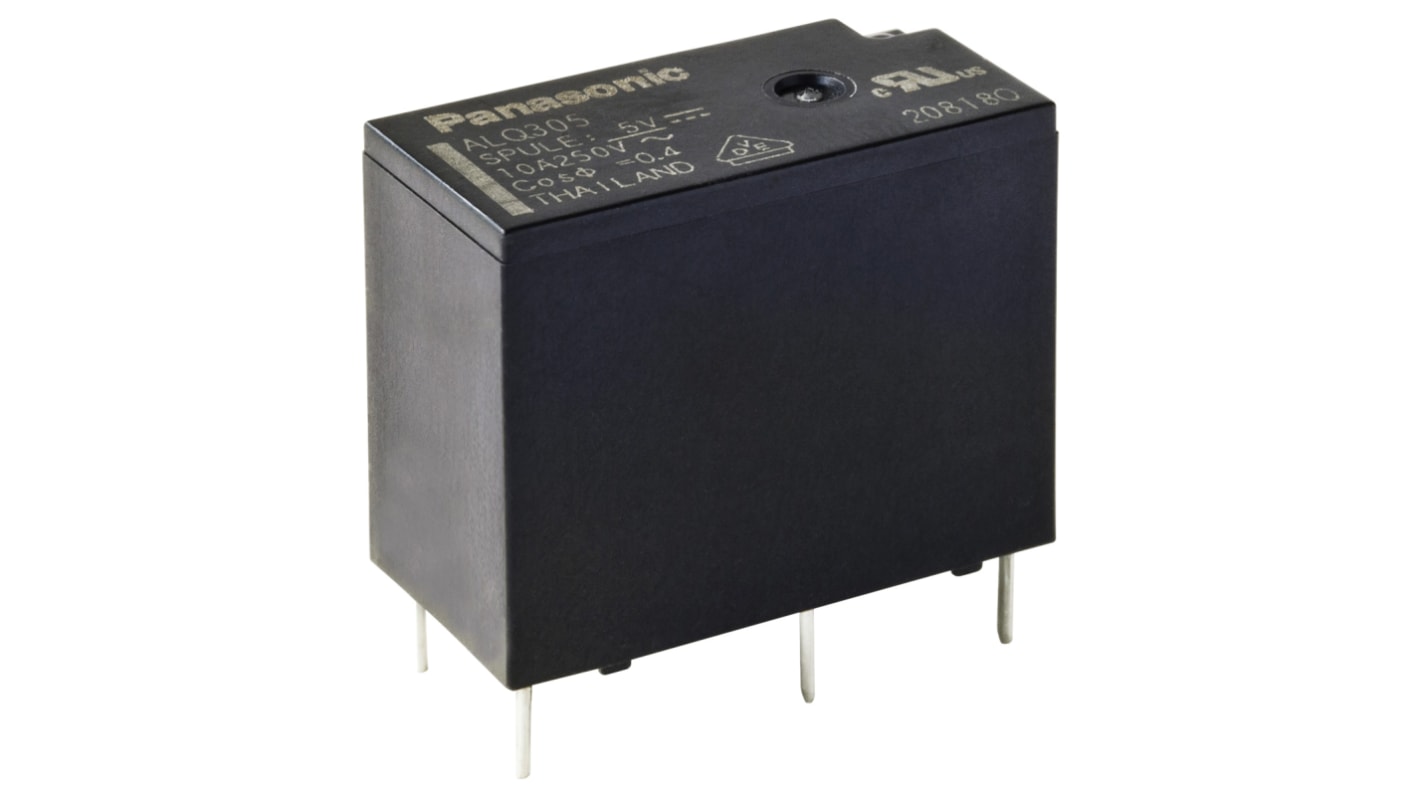

Panasonic PCB Mount Power Relay, 5V dc Coil, 10A Switching Current, SPDT
- RS Stock No.:
- 134-7861
- Mfr. Part No.:
- ALQ105
- Brand:
- Panasonic
Subtotal (1 box of 100 units)*
£131.10
(exc. VAT)
£157.30
(inc. VAT)
FREE delivery for orders over £50.00
- 200 unit(s) ready to ship
- Plus 100 unit(s) shipping from 03 November 2025
Units | Per unit | Per Box* |
|---|---|---|
| 100 - 400 | £1.311 | £131.10 |
| 500 + | £1.151 | £115.10 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£1.33
(exc. VAT)
£1.60
(inc. VAT)
- RS Stock No.:
- 134-7861
- Mfr. Part No.:
- ALQ105
- Brand:
- Panasonic
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Coil Voltage | 5V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 10A | |
| Number of Poles | 1 | |
| Latching | No | |
| Terminal Type | PCB Pin | |
| Maximum Switching Voltage AC | 250V | |
| Maximum Switching Voltage DC | 30V dc | |
| Length | 20mm | |
| Coil Resistance | 62.5Ω | |
| Coil Power | 400mW | |
| Isolation Coil To Contact | 4kVrms | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Height | 15.6mm | |
| Life | Minimum of 10000000 (Mechanical) operations | |
| Depth | 10mm | |
| Standards Met | CQC, CSA, cUL, cULus, UL, VDE | |
| Contact Material | Silver Alloy | |
| Maximum Switching Power DC | 150 (NO) W, 30 (NC) W | |
| Maximum Switching Power AC | 1250 (NO) VA, 500 (NC) VA | |
| Dimensions | 20 x 10 x 15.6mm | |
| Application | Air Conditioners, Cooking Ovens, Home Appliances, Industrial Equipment, Motor Controls, Power Supply, Refrigerators, Robots, Washing Machine | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Coil Voltage 5V dc | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Switching Current 10A | ||
Number of Poles 1 | ||
Latching No | ||
Terminal Type PCB Pin | ||
Maximum Switching Voltage AC 250V | ||
Maximum Switching Voltage DC 30V dc | ||
Length 20mm | ||
Coil Resistance 62.5Ω | ||
Coil Power 400mW | ||
Isolation Coil To Contact 4kVrms | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Height 15.6mm | ||
Life Minimum of 10000000 (Mechanical) operations | ||
Depth 10mm | ||
Standards Met CQC, CSA, cUL, cULus, UL, VDE | ||
Contact Material Silver Alloy | ||
Maximum Switching Power DC 150 (NO) W, 30 (NC) W | ||
Maximum Switching Power AC 1250 (NO) VA, 500 (NC) VA | ||
Dimensions 20 x 10 x 15.6mm | ||
Application Air Conditioners, Cooking Ovens, Home Appliances, Industrial Equipment, Motor Controls, Power Supply, Refrigerators, Robots, Washing Machine | ||
