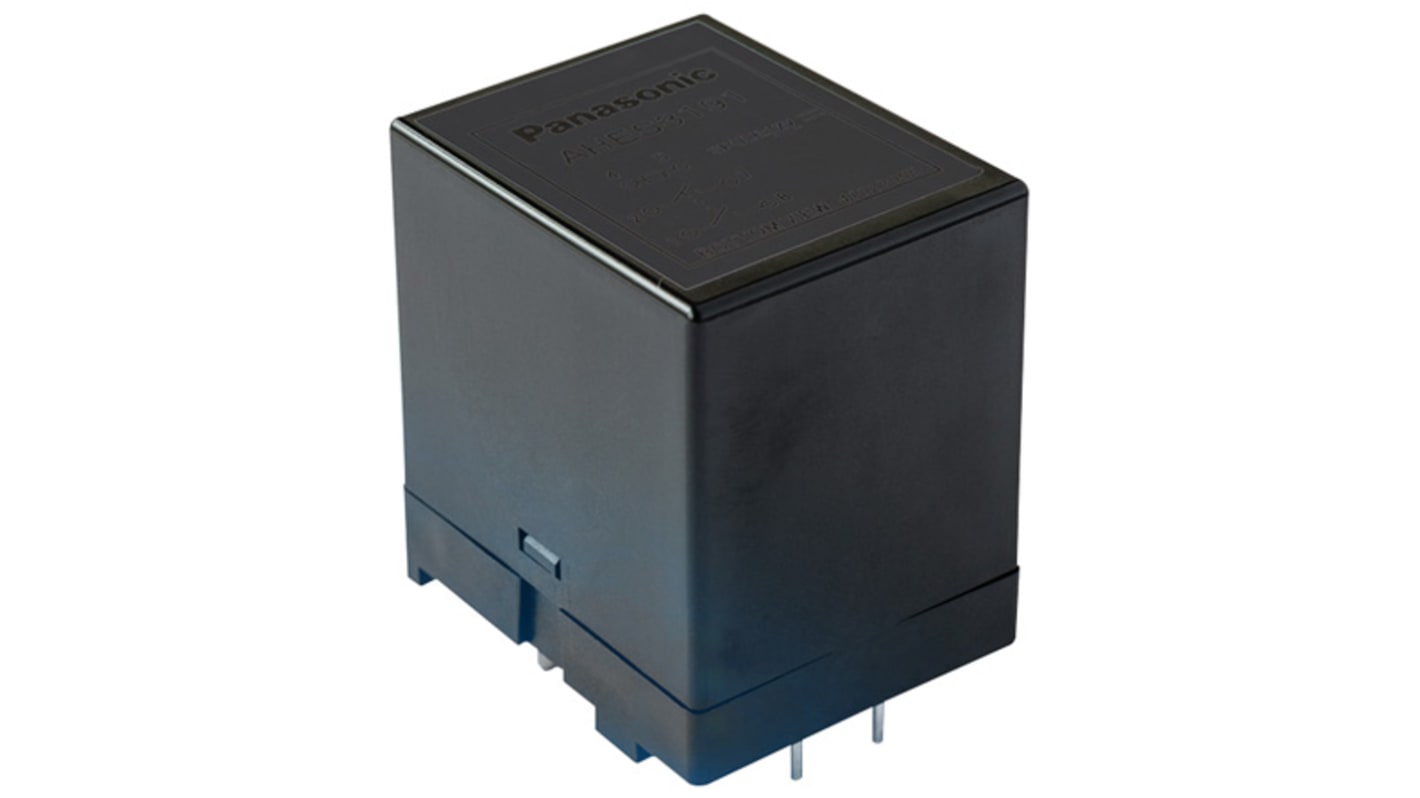

Panasonic PCB Power Relay, 24V dc Coil, 35A Switching Current, DPST
- RS Stock No.:
- 134-7856
- Mfr. Part No.:
- AHES3292
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 box of 25 units)*
£458.70
(exc. VAT)
£550.45
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 09 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 25 - 100 | £18.348 | £458.70 |
| 125 + | £16.311 | £407.78 |
*price indicative
- RS Stock No.:
- 134-7856
- Mfr. Part No.:
- AHES3292
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Coil Voltage | 24V dc | |
| Product Type | Power Relay | |
| Contact Configuration | DPST | |
| Mount Type | PCB | |
| Series | HE-S | |
| Terminal Type | PCB Pin | |
| Switching Current | 35A | |
| Minimum Operating Temperature | -40°C | |
| Switching DC Voltage | 110V dc | |
| Switching Power | 9.7kVA | |
| Switching AC Voltage | 110V ac | |
| Coil Resistance | 306.4Ω | |
| Maximum Operating Temperature | 85°C | |
| Coil Power | 1.88W | |
| Standards/Approvals | RoHS, VDE | |
| Width | 36mm | |
| Height | 40mm | |
| Length | 30mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Coil Voltage 24V dc | ||
Product Type Power Relay | ||
Contact Configuration DPST | ||
Mount Type PCB | ||
Series HE-S | ||
Terminal Type PCB Pin | ||
Switching Current 35A | ||
Minimum Operating Temperature -40°C | ||
Switching DC Voltage 110V dc | ||
Switching Power 9.7kVA | ||
Switching AC Voltage 110V ac | ||
Coil Resistance 306.4Ω | ||
Maximum Operating Temperature 85°C | ||
Coil Power 1.88W | ||
Standards/Approvals RoHS, VDE | ||
Width 36mm | ||
Height 40mm | ||
Length 30mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
AHES Series - PCB Relays
Introducing the Panasonic HES Series of Power Relays. These relays are of Compact size, can run at a high operating power and are highly reliable and robust under stressful operating conditions. The HES Power Relays are for use in energy management and industrial equipment, typically photovoltaic power generation systems and UPS.
Features and Benefits
• Photovoltaic power generation systems (Solar inverter)
• Uninterruptible Power Supplies (UPS)
• Inverter
• Office Air conditioner
• Industrial equipment
