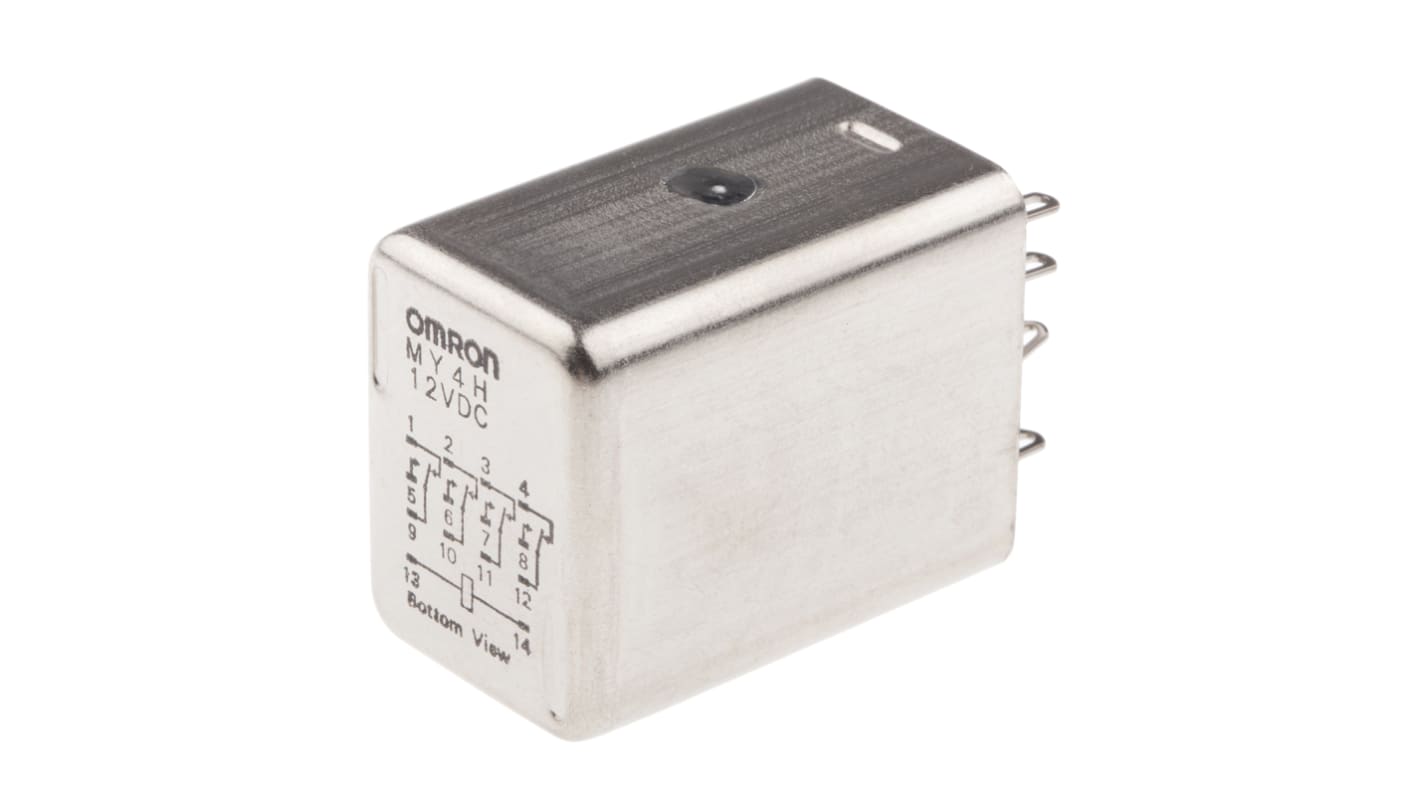

Omron Panel Mount Power Relay, 12V dc Coil, 3A Switching Current, 4PDT
- RS Stock No.:
- 376-723
- Mfr. Part No.:
- MY4H 12VDC
- Brand:
- Omron
Subtotal (1 unit)*
£41.79
(exc. VAT)
£50.15
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £41.79 |
*price indicative
- RS Stock No.:
- 376-723
- Mfr. Part No.:
- MY4H 12VDC
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Coil Voltage | 12V dc | |
Contact Configuration | 4PDT | |
Mounting Type | Panel Mount | |
Switching Current | 3A | |
Number of Poles | 4 | |
Series | MY4 | |
Latching | No | |
Terminal Type | PCB Pin | |
Length | 28.44mm | |
Coil Resistance | 160Ω | |
Depth | 22.1mm | |
Contact Material | Gold Plated | |
Height | 35.1mm | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +60°C | |
Maximum Switching Power DC | 72 W | |
Maximum Switching Power AC | 330VA | |
Application | General Purpose | |
Select all | ||
---|---|---|
Brand Omron | ||
Coil Voltage 12V dc | ||
Contact Configuration 4PDT | ||
Mounting Type Panel Mount | ||
Switching Current 3A | ||
Number of Poles 4 | ||
Series MY4 | ||
Latching No | ||
Terminal Type PCB Pin | ||
Length 28.44mm | ||
Coil Resistance 160Ω | ||
Depth 22.1mm | ||
Contact Material Gold Plated | ||
Height 35.1mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +60°C | ||
Maximum Switching Power DC 72 W | ||
Maximum Switching Power AC 330VA | ||
Application General Purpose | ||

Omron Non-Latching Relay
The Omron MY series panel mount versatile non-latching relay has a contact configuration of 4PDT. It is actuated with 12VDC coil voltage and 3A switching current. This relay has a hermetically sealed version.
Features and Benefits
Coil resistance is 160ohm
Coil to contact isolation is 2000VAC
Operating temperature ranges between -25°C and 60°C
Reduces wiring work by 60% when combined with the Pyf-Pu push-in plus socket
2.6mm wide pins offer higher conductivity and less temperature increase
Plug-in terminal type
Coil to contact isolation is 2000VAC
Operating temperature ranges between -25°C and 60°C
Reduces wiring work by 60% when combined with the Pyf-Pu push-in plus socket
2.6mm wide pins offer higher conductivity and less temperature increase
Plug-in terminal type
Certifications
CSA certified
CE certified
UL approved
VDE approved
CE certified
UL approved
VDE approved
