Schneider Electric DIN Rail Power Relay, 24V dc Coil, 30A Switching Current, DPDT
- RS Stock No.:
- 358-268
- Mfr. Part No.:
- RPF2BBD
- Brand:
- Schneider Electric
Subtotal (1 pack of 10 units)*
£117.26
(exc. VAT)
£140.71
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 3 unit(s) shipping from 04 May 2026
- Plus 3 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £117.26 | £11.726 |
*price indicative
- RS Stock No.:
- 358-268
- Mfr. Part No.:
- RPF2BBD
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 24V dc | |
| Product Type | Power Relay | |
| Contact Configuration | DPDT | |
| Mount Type | DIN Rail | |
| Series | Power | |
| Switching Current | 30A | |
| Minimum Operating Temperature | -40°C | |
| Switching DC Voltage | 250V dc | |
| Maximum Operating Temperature | 55°C | |
| Coil Resistance | 350Ω | |
| Length | 39.2mm | |
| Height | 68.5mm | |
| Width | 33.7mm | |
| Coil Power | 1.7W | |
| Standards/Approvals | UL GOST CSA CE, CSA C22.2 No 14 UL 508 IEC 61810-1 | |
| Contact Material | Silver Tin Oxide | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 24V dc | ||
Product Type Power Relay | ||
Contact Configuration DPDT | ||
Mount Type DIN Rail | ||
Series Power | ||
Switching Current 30A | ||
Minimum Operating Temperature -40°C | ||
Switching DC Voltage 250V dc | ||
Maximum Operating Temperature 55°C | ||
Coil Resistance 350Ω | ||
Length 39.2mm | ||
Height 68.5mm | ||
Width 33.7mm | ||
Coil Power 1.7W | ||
Standards/Approvals UL GOST CSA CE, CSA C22.2 No 14 UL 508 IEC 61810-1 | ||
Contact Material Silver Tin Oxide | ||

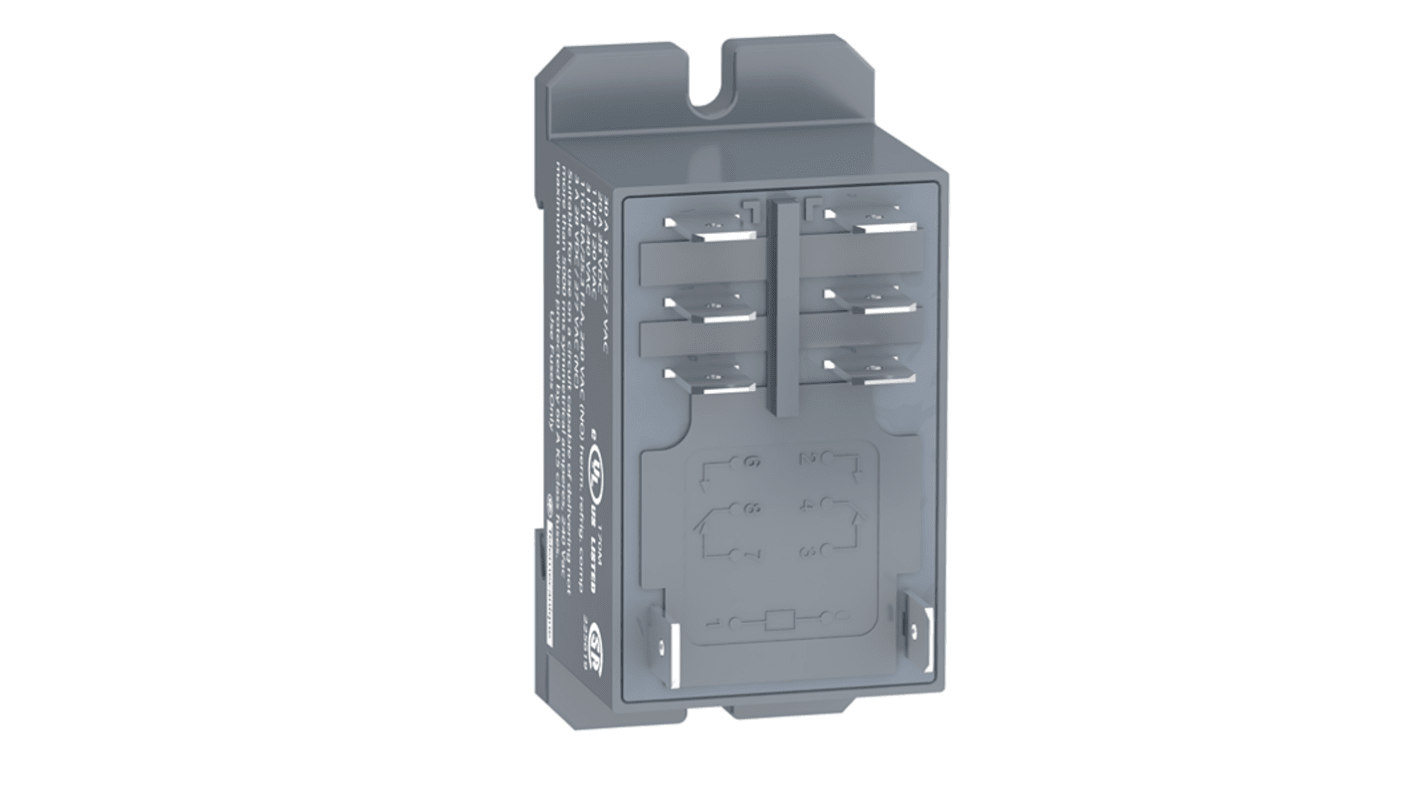

The Schneider Electric Harmony RPF power relay plug-in features 2 changeover contacts (CO) and operates at 24V DC with a 30A current rating. It provides reliable switching for industrial control applications, offering ease of installation and durability.
DIN rail pane mounting support
IP40 conforming to IEC 60529
