Schneider Electric DIN Rail Power Relay, 24V ac Coil, 30A Switching Current, DPST
- RS Stock No.:
- 124-0194
- Mfr. Part No.:
- RPF2AB7
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£11.38
(exc. VAT)
£13.66
(inc. VAT)
FREE delivery for orders over £50.00
- 46 unit(s) ready to ship
- Plus 11 unit(s) ready to ship from another location
Units | Per unit |
|---|---|
| 1 + | £11.38 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 124-0194
- Mfr. Part No.:
- RPF2AB7
- Brand:
- Schneider Electric
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 24V ac | |
| Contact Configuration | DPST | |
| Mounting Type | DIN Rail | |
| Switching Current | 30A | |
| Number of Poles | 2 | |
| Latching | No | |
| Series | Harmony Relay RP | |
| Terminal Type | Plug In | |
| Maximum Switching Voltage AC | 250V | |
| Maximum Switching Voltage DC | 250V dc | |
| Length | 33.7mm | |
| Coil Resistance | 170Ω | |
| Depth | 39.1mm | |
| Isolation Coil To Contact | 4kV ac | |
| Maximum Operating Temperature | +55°C | |
| Minimum Operating Temperature | -40°C | |
| Life | 100000 (Electrical) cycles, 50000000 (Mechanical) cycles | |
| Contact Material | Silver Alloy | |
| Better World Product | Yes | |
| Height | 68.5mm | |
| Better World Verification | Green Premium | |
| Standards Met | CE, CSA, EN/IEC, GOST, IEC, UL | |
| Maximum Switching Power AC | 7.5 kVA | |
| Maximum Switching Power DC | 840 W | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 24V ac | ||
Contact Configuration DPST | ||
Mounting Type DIN Rail | ||
Switching Current 30A | ||
Number of Poles 2 | ||
Latching No | ||
Series Harmony Relay RP | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 250V | ||
Maximum Switching Voltage DC 250V dc | ||
Length 33.7mm | ||
Coil Resistance 170Ω | ||
Depth 39.1mm | ||
Isolation Coil To Contact 4kV ac | ||
Maximum Operating Temperature +55°C | ||
Minimum Operating Temperature -40°C | ||
Life 100000 (Electrical) cycles, 50000000 (Mechanical) cycles | ||
Contact Material Silver Alloy | ||
Better World Product Yes | ||
Height 68.5mm | ||
Better World Verification Green Premium | ||
Standards Met CE, CSA, EN/IEC, GOST, IEC, UL | ||
Maximum Switching Power AC 7.5 kVA | ||
Maximum Switching Power DC 840 W | ||

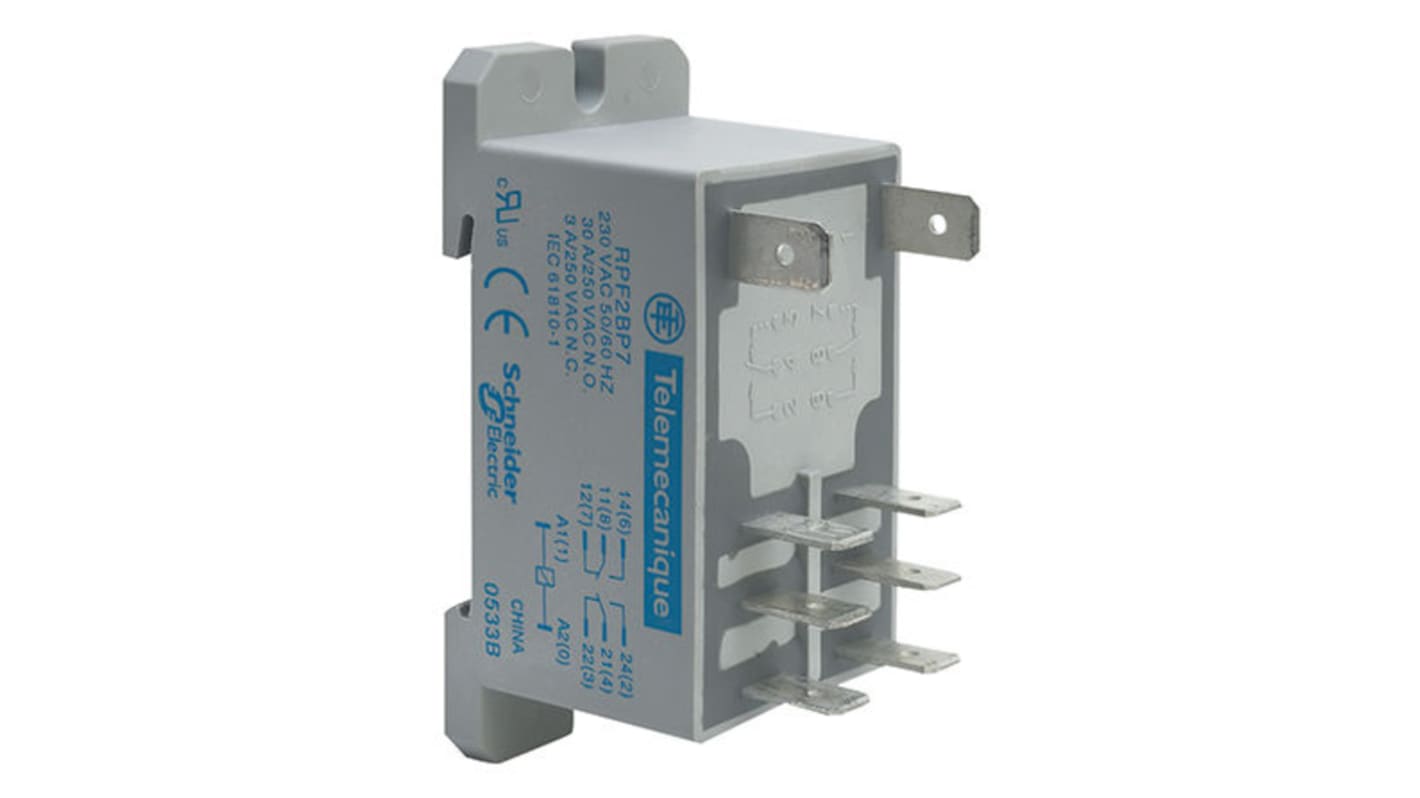

RPF Series
Four or six quick-connect terminals
Two relay coil terminals
A locating slot for DIN rail mounting
Schneider Electric RPF2AB7
