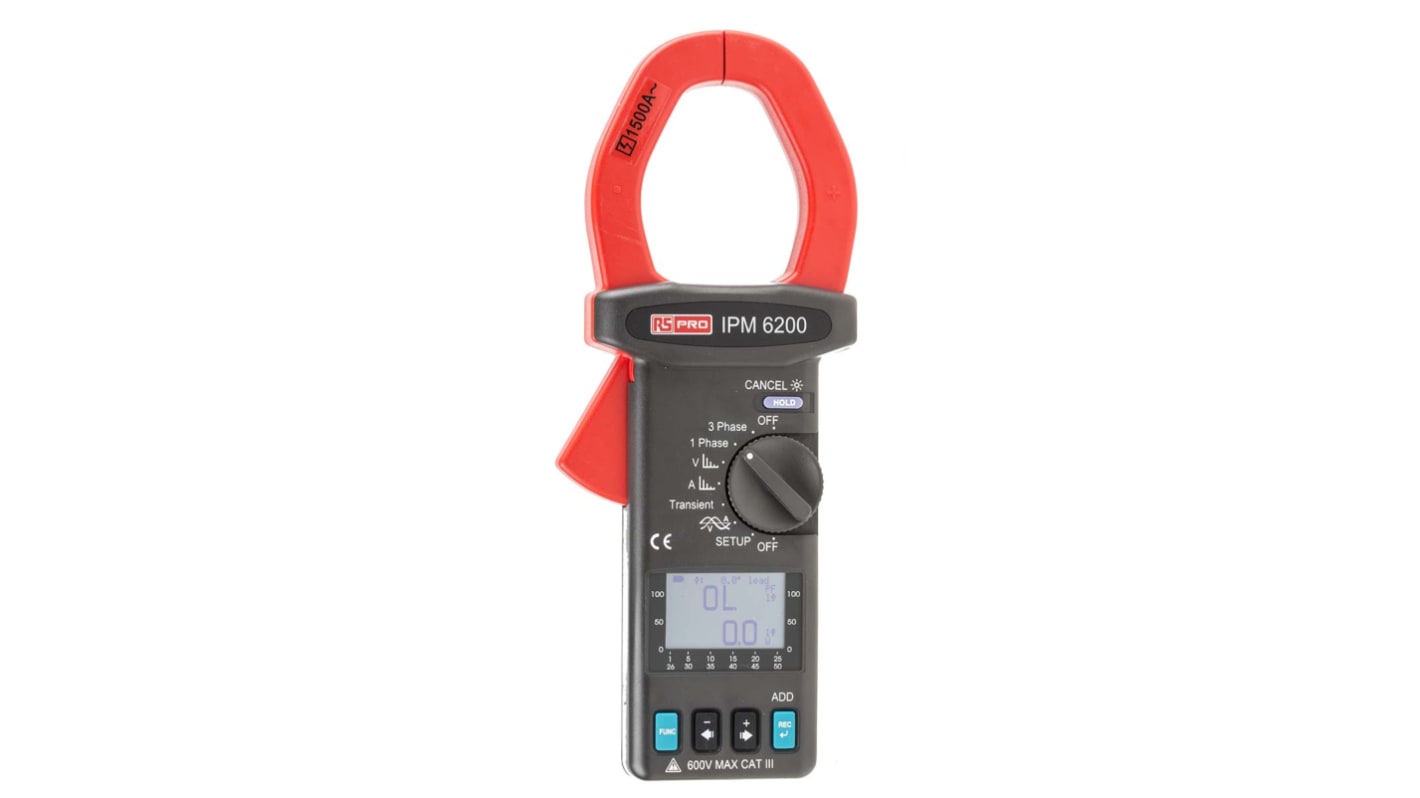

RS Pro IPM 6200 is a great value, single phase and balanced 3 phase 1500 A ac graphical power quality analyser. It incorporates data logging functions for analysis and diagnosis of power quality and power disturbance issues in electrical installations and power circuits. Optically isolated USB connection lead and analysis software (supplied) enables readings to be displayed and recorded data to be downloaded, controlled and analysed on a PC or laptop computer.

Power quality analysis of single and balanced 3-phase systems
Graphical display of voltage and current waveforms
128 x 64 Dot matrix LCD with backlight
Active power measurement (W, kW, HP)
Reactive power measurement (VAR, kVAR)
Apparent power measurement (VA, kVA)
Power factor (PF) and phase angle (Ø) measurements
Energy calculation (WH and kWH)
Maximum demand measurement over presettable time period
Transient detection of Swell, Dip and Outage
Analysis of % THD
Graphical phase diagram display, plus fast peak display
Graphical harmonic analysis (V and A) to the 50^th order in % and magnitude
Real time clock
Programmable CT ratio from 1 to 3000 for very high power measurements
Data logging to internal memory for up to 50 000 readings/32 000 transient events with programmable logging interval
Programming logging interval from 1 to 3000 seconds
Conductor size, cable 55 mm (approximately) and busbar 65 x 24 mm
Dimensions 271 x 112 x 46 mm
Weight 647 g (battery included)

Opto-isolated USB lead, PC software on CD, test leads with crocodile clips, software and user manuals, AA alkaline batteries (x2)
