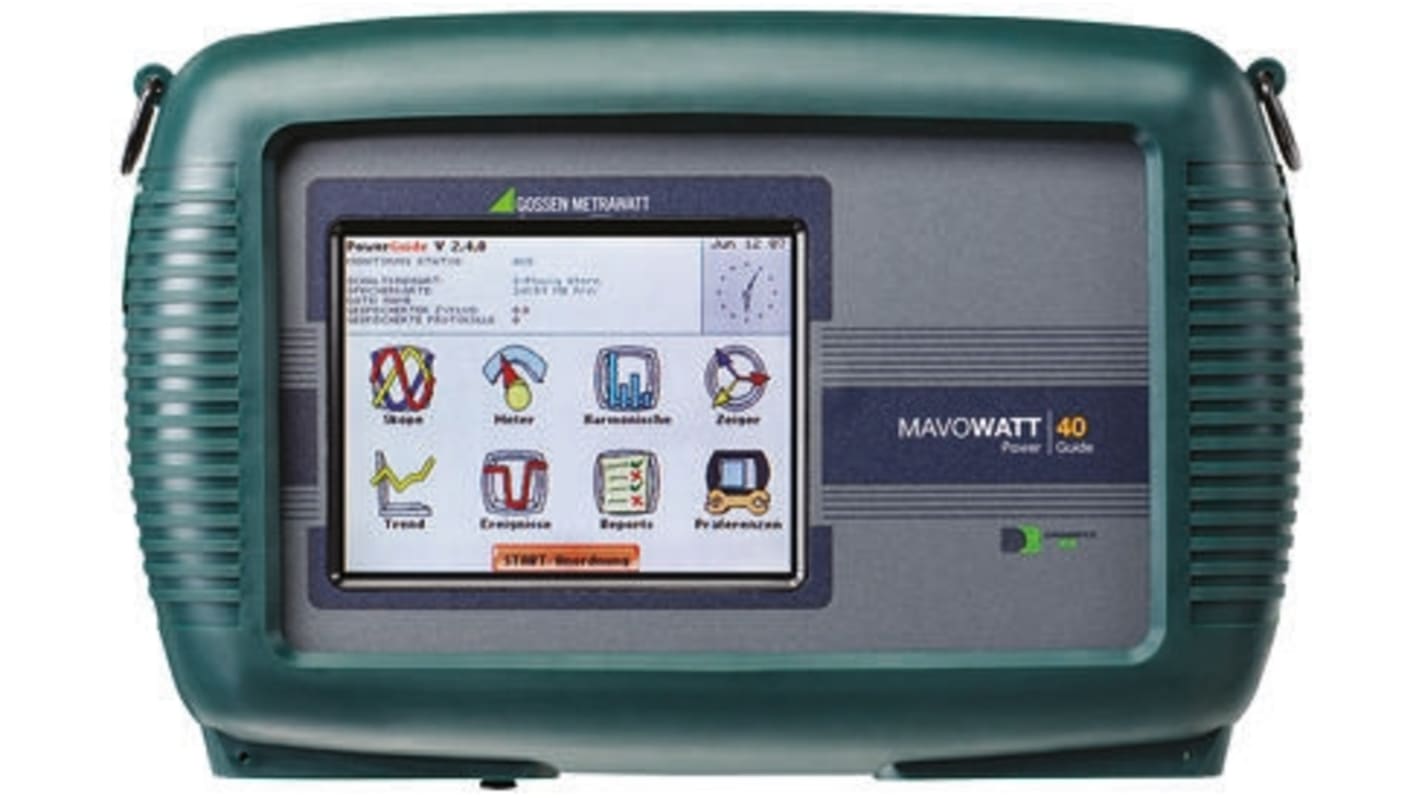

Gossen Metrawatt M817B Power Quality Analyser, 3-Phase, 6000A ac Max, 600V ac Max

View all Power Quality Analysers
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
486-704
Mfr. Part No.:
M817B
Brand:
Gossen Metrawatt
Find similar products by selecting one or more attributes.
Select all

Brand

Gossen Metrawatt

Absolute Maximum Current Measurement

6000A ac

Number of Phases

3

Maximum Voltage

600V ac

Best Voltage Measurement Accuracy

±1% + 0.05

Best Current Measurement Accuracy

±0.1 %

Display Type

LCD

Measurement Type

Current, Energy, Frequency, Harmonics, Inrush Current, Unbalance, Voltage

Measurement Standards

EN50160, EN61000-4-15, EN61000-4-7

Interface Type

RS232, USB

Memory Capacity

32GB

Power Source

Battery

Model Number p

M817B

Battery Life

3 h

Dimensions

300 x 64 x 203mm

Minimum Frequency

15 Hz, 45 Hz

Length

300mm

Width

64mm

Minimum Operating Temperature

0°C

Maximum Frequency

20 Hz, 65 Hz

Weight

1.9kg

Height

203mm

Maximum Operating Temperature

+50°C

COO (Country of Origin):
US

MAVOWATT | 40


Three-phase energy and power failure analyser
Power and energy analysis in supply networks
Harmonics analysis in accordance with EN 61000-4-7
Network quality in accordance with EN50160 with statistical bar chart
Flicker analysis as per standard EN 61000-4-15
Recording of power-on operations and errors
Analysis module for voltage drop direction, switching peaks for the power factor correction and the quality of motors
8 measuring inputs, 4 x voltage (differential), 4 x current (current transformer), for measurement at 50 / 60 Hz and mains frequency 16 2 / 3
Automatic detection of the measuring configuration and current circuit type
Data storage on 32 MB to 256 MB Compact Flash memory card
Voltage supply via 90 to 264 V / 47 to 63 Hz charger
Built-in battery for up to 3 hours of operation

Standards

EN 50160, EN 61000-4-7, /-4-15
