onsemi for Flat Panel Television (FPTV)
- RS Stock No.:
- 248-3933
- Mfr. Part No.:
- NCS8353MNGEVB
- Brand:
- onsemi
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 248-3933
- Mfr. Part No.:
- NCS8353MNGEVB
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | Evaluation Board | |
| For Use With | Flat Panel Television (FPTV) | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type Evaluation Board | ||
For Use With Flat Panel Television (FPTV) | ||
Standards/Approvals RoHS | ||

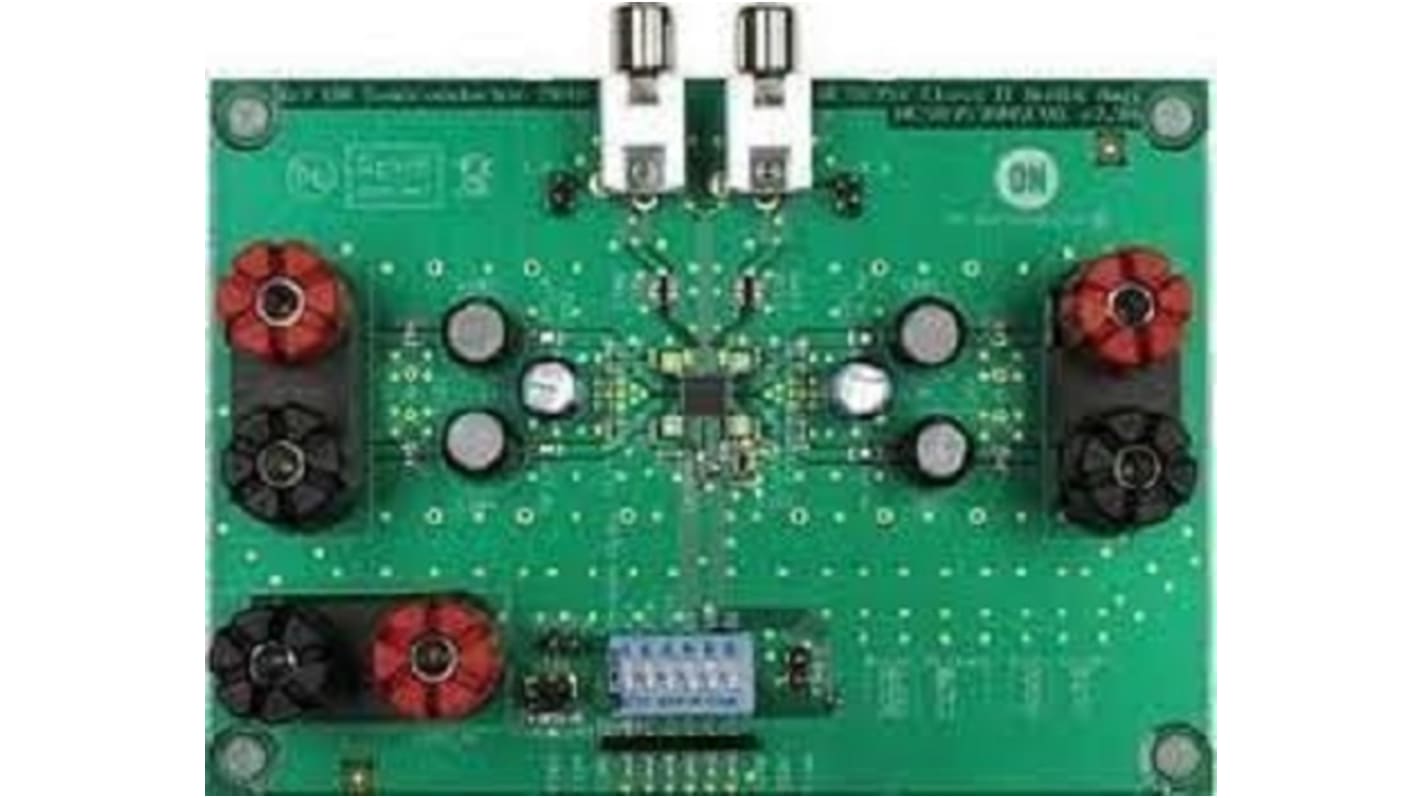

The ON Semiconductor NCS8353 evaluation board is a stereo Class D audio power amplifier capable of delivering a continuous power of up to 20 W/ch into an 8 bridge tied load (BTL). It can be powered from the existing 24 V rail in Flat Panel Television (FPTV) systems. The high efficiency of the NCS8353, 86%, reduces the requirement of an external heat sink when driving high power.
Pop and click suppression
Selectable gain: 20 dB, 26 dB, 32 dB, 36 dB
Mute function
Over temperature protection
